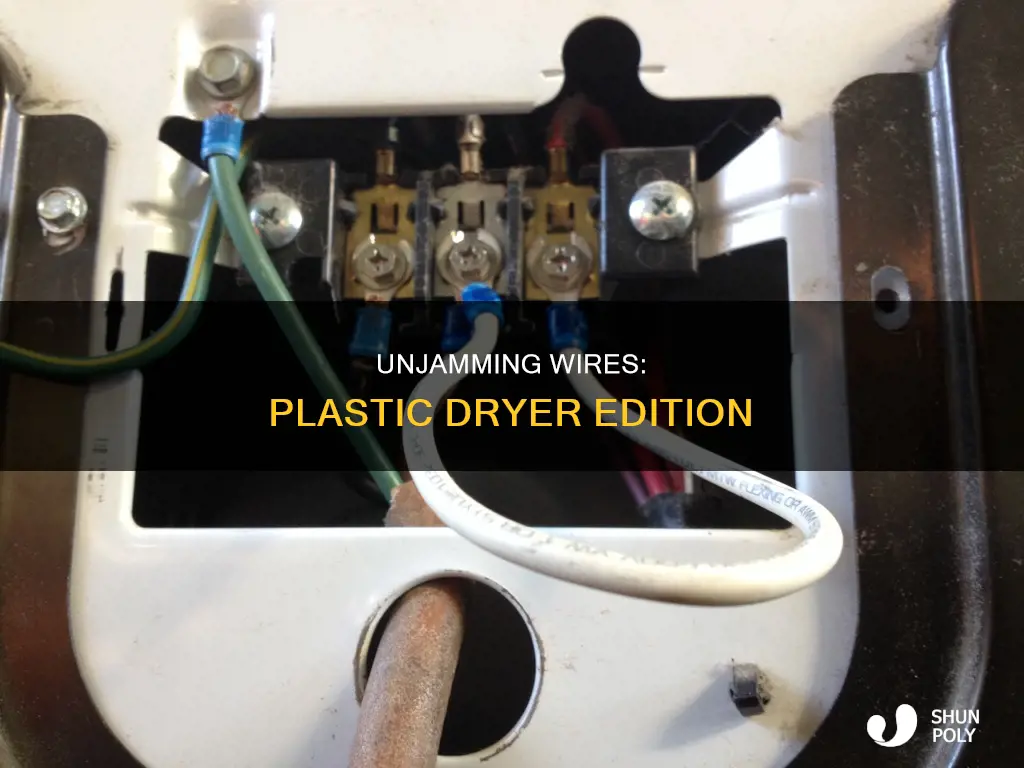

Disconnecting wires in a plastic dryer is a simple task that can be done safely by homeowners. Before starting, ensure that the dryer is unplugged and that you have the correct dryer plug type. The next step is to open the access panel where the cord enters the back of the dryer. The wires are typically colour-coded, with a black wire on one side, a white wire in the middle, and a red wire on the other side. Loosen the connection screws holding the wires in place on the terminal block and disconnect the ground wire or strap that connects the centre terminal to the case. If there is a tab or latch, it needs to be pried up and then it will pull apart. If there are little hooks inside the connector, push them down with a tiny screwdriver to release the wire.
| Characteristics | Values |
|---|---|
| When to unhook wires | When replacing or repairing the dryer |
| Tools required | Screwdriver, pliers, adjustable wrench |
| Steps | 1. Open the access panel at the back of the dryer. 2. Label the wires with masking tape. 3. Loosen the connection screws holding the wires in place. 4. Disconnect the ground wire. 5. Remove the old cord. 6. Feed the new wires through the hole at the back of the unit. 7. Match the colour-coded wires to the terminal block. 8. Connect the wires to the correct posts. |
Explore related products
What You'll Learn
Disconnect wires with a plastic connector
Disconnecting wires with a plastic connector can be done in a few simple steps. Firstly, inspect the connector to identify any tab locks or latches. Plastic connectors usually have a tab lock that fits into the plastic housing. Using a pair of pliers, open the plastic case and locate the tab or latch. Pry it up and then pull the connector apart.
If the wires are still not disconnected, you may need to use a small tool, such as a tiny screwdriver, to push down on the hooks inside the connector. This will release the wire. Be careful during this process, as you may be able to reconnect the wires afterward if needed.
Additionally, if the wires are colour-coded, ensure that you match the new wires with the correct terminals. For example, connect the white wire to the centre neutral terminal, the black wire to the left hot terminal, and the green wire to the green grounding screw or dryer case.
It is important to exercise caution whenever working with electricity. Always ensure that the power source is disconnected before attempting any repairs or modifications.
Plastic Spoons: Hot Water Melting Mystery Solved
You may want to see also
Explore related products
Identify the wires by colour
When identifying the wires of a dryer by colour, it's important to note that the wire colours may vary depending on whether you have a 3-wire or 4-wire system.
3-Wire System
In a 3-wire system, you will typically find three wires: black (hot), white (neutral), and green (ground). The black wire is one of the outer wires and is considered "hot," carrying an electrical charge. The white wire is the middle wire and acts as the neutral wire. The green wire is also known as the ground wire and connects to the frame of the dryer, protecting it from stray or live voltage.
4-Wire System
A 4-wire system introduces an additional wire, resulting in black (hot), red (hot), white (neutral), and green (ground). In this configuration, both the black and red wires are "hot" and interchangeable, but they should not be swapped with the white or green wires.
Identifying Wires by Terminal Connections
In addition to colour, you can identify the wires by their terminal connections. The "hot" wires (black and red in a 4-wire system, or just black in a 3-wire system) connect to the outer terminals. The neutral wire (white) connects to the middle terminal. The ground wire (green) connects to the centre or top terminal, where the grounding screw is located.
It's important to exercise extreme caution when working with electrical appliances. Always ensure that the dryer is unplugged and that the breaker supplying power to the dryer circuit is turned off before attempting any wiring work.
Hammering Plastic Taps: A Step-by-Step Guide
You may want to see also
Explore related products
Loosen connection screws
Before attempting to loosen any connection screws, it is important to ensure that the appliance is disconnected from its power source to avoid any potential hazards.
To loosen connection screws in a dryer, you will typically need to remove the access panel or metal plate covering the cord's wiring connections. This is usually found at the back of the dryer, directly above where the cord comes out. Magnetic screwdrivers or nut drivers can be used to remove the plate's screws effectively, reducing the risk of screws falling inside the dryer.
Once the plate is removed, you will be able to access the connection screws. Loosen the screws holding the wires in place on the terminal block. These screws secure the power cord to the dryer, so ensure they are safely kept aside for reassembly.
If you encounter stubborn screws that are difficult to loosen, there are a few potential causes to consider. Firstly, check if the screw is a bonding screw that goes through the terminal block into a tapped hole in the sheet metal below. If the terminal block is not aligned correctly with the tapped hole, the screw may not go in smoothly. Attempt to adjust the position of the terminal block to align it with the hole.
Additionally, the screw threads may be damaged or crossed, preventing the screw from tightening properly. Inspect the screw threads and ensure they are not damaged or crossed with new grooves. If necessary, replace the screw with a new one to ensure a secure connection.
It is important to note that all electrical connections must be tight to maintain safety. Loose connections can be unsafe, so ensure that all screws are securely tightened when reassembling the dryer.
Mastering Soft Plastic Lures: Casting Techniques for Success
You may want to see also
Explore related products
$11.99 $16.99
Disconnect the ground wire
Disconnecting the ground wire is a simple process but must be done with caution as you are working with electricity. It is important to note that the steps to disconnect the ground wire will vary depending on the type of dryer you have. Modern appliances require a four-conductor cord set, which includes separate conductors or wires for line 1, line 2, ground, and neutral. However, some older dryers may use a three-prong outlet, where the ground and neutral wires are contained in the same prong.
- Before beginning any work on the dryer, ensure that it is unplugged from the power source. Working with electricity can be dangerous, and it is important to take the necessary precautions.
- Open the access panel where the cord enters the back of the dryer. Keep the screws in a safe place until you need to secure the access panel again once the project is complete.
- Identify the ground wire. It is typically color-coded, with a green wire or a green grounding screw.
- Loosen the connection screws holding the ground wire in place on the terminal block. You may need to use pliers to hold the strain relief bracket in place while loosening the bracket's screws.
- Once the screws are loosened, you can carefully disconnect the ground wire from the terminal.
It is important to consult the dryer's user manual or seek professional guidance if you are unsure about any steps or if your dryer has a different setup. Safety should always be the top priority when working with electrical appliances.
Joining Black Plastic Pipes: A Comprehensive Guide
You may want to see also
Explore related products
Remove the old cord
Before you begin, make sure that the appliance is unplugged and disconnected from its power source. You should also turn off the power at the breaker box for safety.
Now, you can start to remove the old cord. First, use a screwdriver to remove the plate housing the electrical wires. This plate is usually located above the power cord at the back of the appliance. Magnetic screwdrivers are useful here as they prevent the risk of screws falling into the back of the dryer.
Next, loosen the screws from the strain relief fitting, which is the fitting that secures the power cord to the dryer. You can now remove the power cord from the dryer. After unscrewing each wire from its terminal, carefully pull the cord through the strain relief.
Use pliers to hold the strain relief bracket in place while loosening the bracket's screws. Once the screws are loose enough, you can remove the old cord.
Living Plastic-Free: A Guide to Reducing Your Plastic Waste
You may want to see also
Frequently asked questions
First, open the access panel where the cord enters the back of the dryer. Loosen the connection screws holding the wires in place on the terminal block. Disconnect the ground wire or strap that connects the centre terminal to the case.
Wires are typically colour-coded with a black wire on one side, a white wire in the middle, and a red wire on the other side. The black and red wires are the hot wires, and the white wire is the neutral wire.
Always ensure that the dryer is unplugged and that the power to the main electrical panel is turned off before working on any electrical appliance. Working with electricity can be very dangerous and can cause serious harm or even death.
