Ethan Clarke
Welding plastic is a simple task that can be done at home to repair cracks or join pieces of plastic together. The plastic welding process involves applying heat and pressure to join two pieces of plastic together. There are several techniques to weld plastic, including hot gas, hot plate, extrusion, ultrasonic, and laser. Before welding, it is important to identify the type of plastic and use the appropriate welding temperature to avoid burning or ineffective melting. The workspace should also be well-ventilated, and protective gear, such as a dust mask, long-sleeved shirt, heat-resistant gloves, and goggles, should be worn.
| Characteristics | Values |
|---|---|
| Welding methods | Vibration welding, hot gas, hot plate, extrusion, ultrasonic, laser, soldering iron |
| Welding equipment | Electric welding gun, welding rods, tack welding nozzle, angle cutting pliers, clamps, foil tape, ventilation equipment, protective gear |
| Welding process | Clean and identify plastic, preheat welding gun, melt plastic, join pieces, smooth weld |
| Welding safety | Ventilate area, wear dust mask, wear protective polycarbonate glasses, wear long-sleeved shirt, heat-resistant gloves, goggles |
Explore related products
What You'll Learn
Preheat the welding gun
Preheating the welding gun is an essential step in the plastic welding process. It ensures that the plastic pieces melt effectively and creates a strong weld. Here are some detailed instructions for preheating your welding gun:
Firstly, it's important to understand that different types of plastics melt at different temperatures. The melting point of plastic varies depending on its composition, so setting the correct temperature on your welding gun is crucial. Common plastics like propylene and polyurethane require a welding gun temperature of around 300 °C (572 °F). For PVC, adjust the temperature to about 275 °C (527 °F), and for polyethylene, set the heat to approximately 265 °C (509 °F). These temperature settings ensure that the plastic melts optimally without burning.
Before turning on your welding gun, ensure that the plastic pieces you will be working on are securely clamped and taped together. This step is crucial as it prevents the pieces from shifting during the welding process. Use C-clamps to pin the pieces to your workbench and wrap foil tape around the pieces to keep them pressed together. Just be careful not to cover the area that needs to be welded.
Now, you can focus on preheating the welding gun. Allow the gun to heat up for at least 2 to 3 minutes. The preheating time ensures that the welding gun reaches the desired temperature and maintains a consistent heat level. This step is crucial because an unevenly heated welding gun can cause uneven melting of the plastic, resulting in a weak weld.
During the preheating process, it's essential to be mindful of safety precautions. Welding plastic generates fumes, so always work in a well-ventilated area or outdoors if possible. Wear protective gear, such as a long-sleeved shirt, heat-resistant gloves, goggles, and a dust mask, to shield yourself from any harmful emissions.
Once the welding gun has preheated for the appropriate amount of time, you can proceed with the actual welding process. Carefully apply the heat from the gun to the plastic joint, gradually melting and joining the pieces together. Remember to work slowly and methodically, as rushing can lead to overheating or uneven melting. Take your time and adjust the heat as needed, referring to the recommended temperature ranges for the specific type of plastic you are working with.
Applying Plastic Window Film: A Step-by-Step Guide
You may want to see also
Explore related products
Use a soldering iron
Plastic welding is a process of joining plastic materials using heat to melt and fuse them together. To weld hard plastic with a soldering iron, follow these steps:
Preparation
Firstly, ensure your work area is heated. Working with a heat gun or a similar tool will keep the weld from cooling too quickly and allow the plastic to flow for longer. You can also preheat the joint with a heat gun.
Clean the Plastic
Thoroughly clean the plastic with soap and a degreaser, even if it does not appear dirty. Sand the edges of the plastic down so that they are not jagged. This will ensure a smooth finish and help the plastic pieces fit together well.
Position the Plastic
Align the parts to be welded accurately. Push the two pieces of plastic together and hold them in place.
Welding
Plug in your soldering iron and allow it to heat up for a few minutes. Use a soldering iron with adjustable temperature control to avoid burning the plastic. Start at a lower temperature and gradually increase if needed.
Once the soldering iron is hot, run the tip back and forth over the seam to partially melt the plastic together. While the plastic is still hot and soft, adjust the pieces to ensure they fit together properly.
Strengthening the Weld
Strengthen the weld by adding small pieces of plastic, ideally thin strips, to the seam. Melt them fully by pressing on the small pieces with the soldering tip until they become liquefied. Spread the melted plastic evenly along the seam with the soldering tip.
Finishing
Go over the seam and surrounding area with the soldering iron using fast, smooth strokes to create an even, smoothly welded surface. Allow the welded area to cool naturally. Do not force-cool, as this can cause stress and weaken the weld.
Experiment on some scrap plastic first to learn how long to keep the soldering iron on particular points.
Dollar Tree Plastic Spoons: Are They Available?
You may want to see also
Explore related products

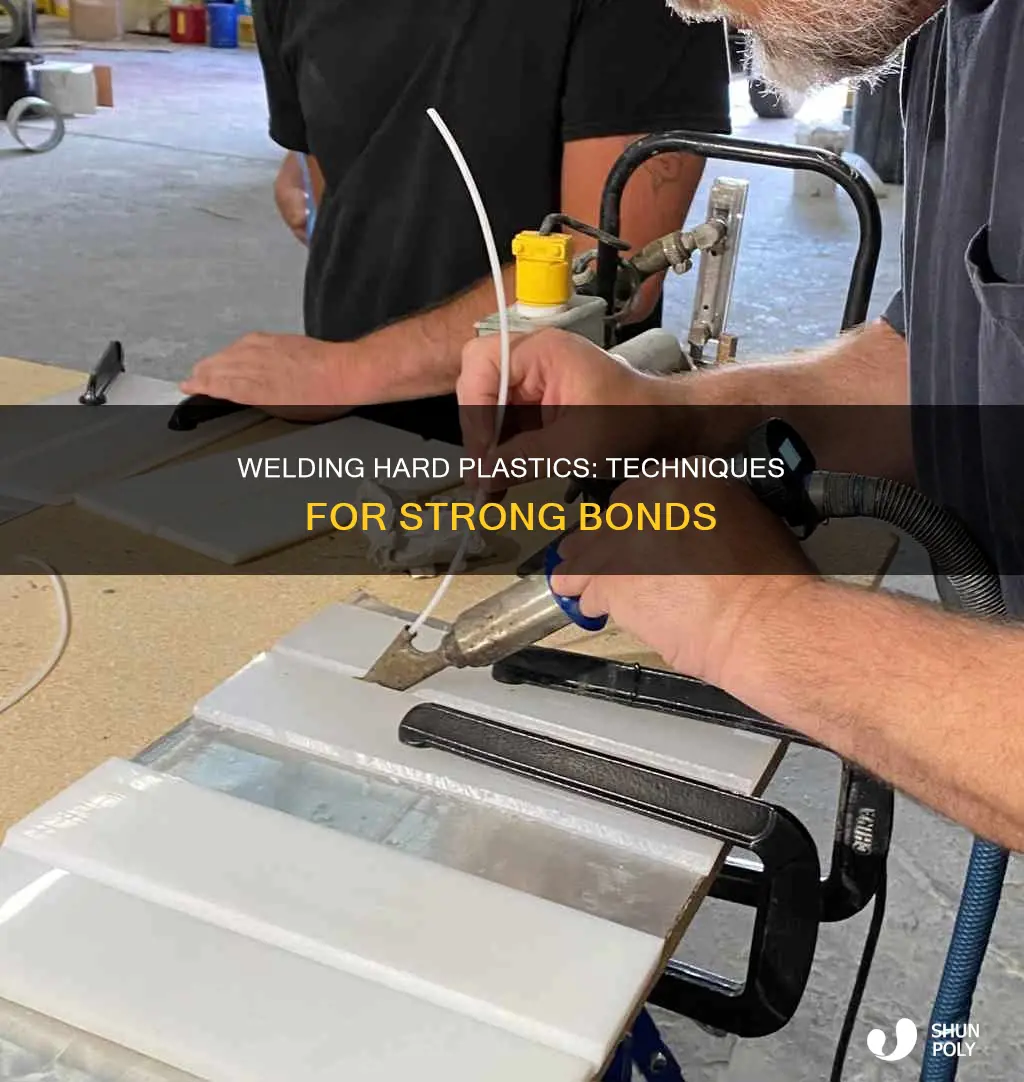

Hot gas welding
To perform hot gas welding, you will need a handheld welding gun or a welding machine that generates a controlled flow of heated air or gas. It is important to ensure that the temperature of the hot gas is carefully regulated to avoid degradation or burning of the plastic. The recommended temperature range for welding plastics is between 200°C and 300°C (390°F to 570°F). However, the specific temperature will depend on the type of plastic being welded. For example, propylene and polyurethane should be welded at 300°C (572°F), while PVC should be welded at around 275°C (527°F).
Before beginning the welding process, it is important to prepare the plastic pieces by clamping and taping them together to hold the joints in place. Place the plastic pieces on a working bench, push them close together, and then pin them to the table using C-clamps. Wrap foil or foil tape around the pieces to keep them pressed together, but avoid covering the area to be welded.
Once the pieces are securely clamped and taped, you can begin the welding process. Preheat the welding gun for at least 2-3 minutes to ensure that the plastic melts effectively. During the welding process, the operator directs the heated gas stream onto the plastic surfaces to be joined, melting them and creating a molten pool. The softened plastic is then pressed together, allowing the molten material to mix and form a strong bond as it cools.
It is important to note that hot gas welding requires skill and precision to ensure proper heating, alignment, and pressure. The main welding parameters to consider are temperature, pressure, welding speed, and hot air tool position. A good understanding of these parameters is crucial to ensure a successful weld. Additionally, it is important to work in a well-ventilated area to protect against dust and fumes generated during the welding process.
Plastic Covers: Laptop Heat Culprits or Protectors?
You may want to see also
Explore related products
Hot plate welding
The hot plate welding process can be broken down into three basic steps: Melt, Open, and Seal. During the melt or heating stage, an upper and a lower heating plate are used to melt the components that must be joined. The temperature of both plates is controlled to ensure uniform heating across the entire surface area of the part. The hot plate temperature range is 30 to 100 °C (86 to 212 °F) above the melting temperature of the material, and a constant pressure between 0.2 and 0.5 MPa is applied against the hot plate.
After sufficient heating time, the change-over phase begins. The parts are retracted from the hot plate, the plate is moved away, and the parts are brought together. This phase should be as short as possible to prevent the melted region from cooling off. The welding/forging phase begins when the two molten surfaces are pressed together, creating intermolecular diffusion of the plastic molecules, which provides weld strength.
Plastic Screen Protectors: Display Quality Impact
You may want to see also
Explore related products
Tack welding
To begin tack welding, you'll need a welding gun fitted with a tack welding nozzle, which looks like a tube with a fin on its end. Before turning on your welding gun, ensure the plastic pieces are securely clamped and taped together, forming the desired joint. Place the pieces on a workbench, using C-clamps to pin them to the table. Wrap foil tape around the pieces to keep them pressed together, avoiding the area you plan to weld.
Once the pieces are securely positioned, you can start the tack welding process. Preheat your welding gun for at least 2 minutes, adjusting the temperature according to the type of plastic you're working with. Different plastics melt at varying temperatures, typically between 200°C and 300°C (392°F and 572°F). For instance, propylene and polyurethane require a temperature of 300°C (572°F), while PVC should be welded at around 275°C (527°F).
With the welding gun preheated, it's time to apply heat to the joint. Press the fin of the tack welding nozzle against the plastic, melting the ends of the joint together. You only need to melt the plastic slightly to secure the pieces. If additional security is needed, consider tack welding spots every 1 foot (0.30 m) along the joint.
Freezing Meat Without Plastic: An Eco-Friendly Guide for Australians
You may want to see also
Frequently asked questions
Welding plastic can create dust and fumes, so it's important to work in a well-ventilated area. If possible, work outdoors or under a ventilation system. Open nearby doors and windows, and use fans to improve airflow. Wear protective gear, including a long-sleeved shirt, polycarbonate glasses, and a dust mask.
First, clean the plastic and identify the type of plastic using a welding rod test kit. Then, use clamps and tape to secure the plastic pieces together, forming the desired joint. Preheat your welding gun for 2-3 minutes, setting the temperature according to the type of plastic (typically between 200°C and 300°C or 390°F and 570°F). Once the gun is heated, gradually melt and join the plastic together. Finish by smoothing out the weld to create a strong bond.
There are several techniques for welding plastic, including hot gas, hot plate, extrusion, ultrasonic, and laser welding. Hot gas involves using a hot air gun or torch to melt the plastic at the joint, while hot plate welding uses a heated aluminum plate to melt the plastic before pressing the pieces together. Extrusion welding is used for large plastic structures, melting welding rods with a heated extrusion gun. Ultrasonic welding uses mechanical vibrations to create frictional heat, and laser welding employs a laser beam to thaw the plastic before applying pressure to bond the joints.
