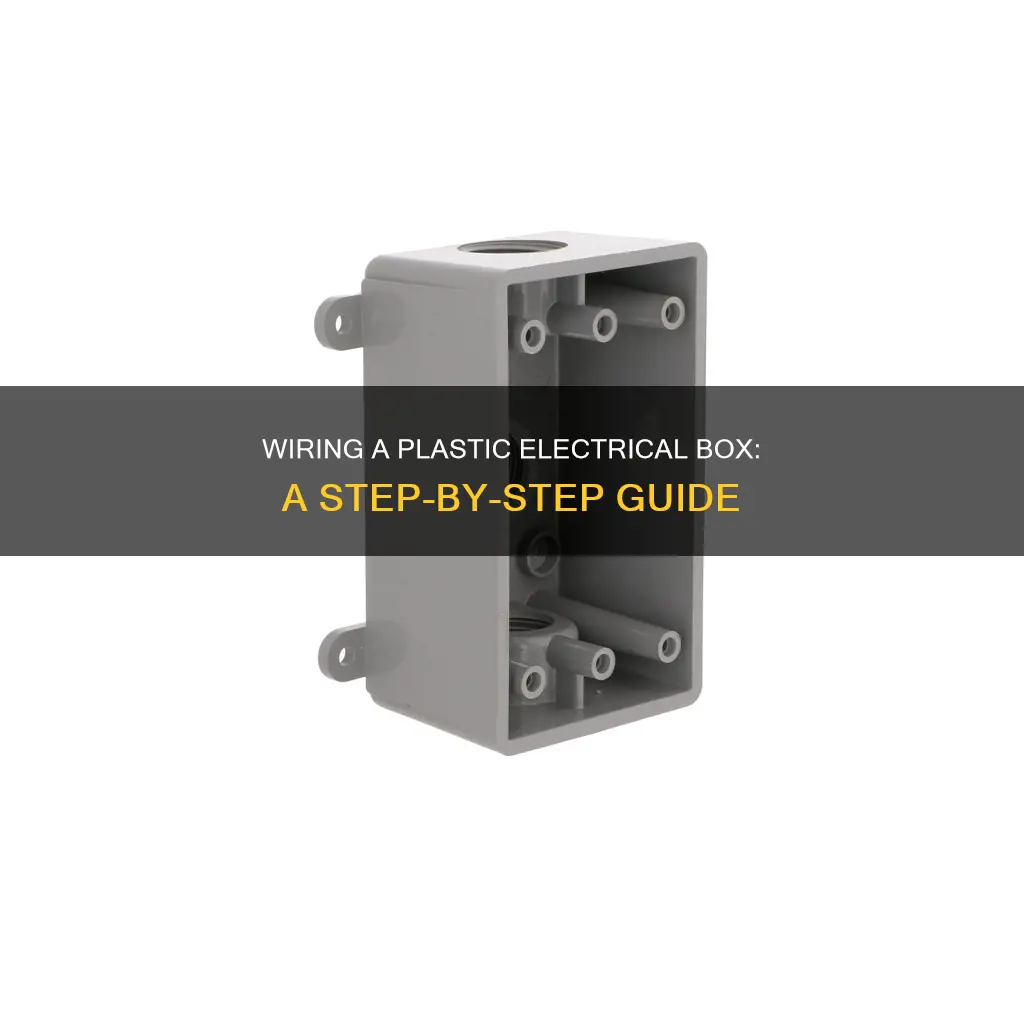

Wiring a plastic electrical box is a process that requires careful attention to safety and detail. It involves a series of steps, from ensuring the power is off at the electrical outlet to feeding new wiring through the box and making careful considerations for cable entry and clamping. Plastic electrical boxes differ from metal boxes in their clamping mechanisms and cable entry methods, and it is important to be aware of these differences when working with plastic electrical boxes. With the right tools and precautions, installing a plastic electrical box can be a straightforward process, but it is always important to prioritize safety when working with electrical systems.
Explore related products
What You'll Learn
Plastic boxes have knockouts that provide a cable entry
Plastic electrical boxes are different from older-style metal boxes, which feature a clamping mechanism that secures or anchors the cable to the box. Plastic boxes, on the other hand, have knockouts that provide a cable entry. This knockout creates a hole through which the cable passes, and the cable is then held in place by a staple or wire clamp within 8 inches of the electrical box, as per electrical code requirements. This setup allows the cable to float freely within the box, and some people even create a flap or door by breaking three sides of the plastic, providing additional cable retention.
When working with plastic electrical boxes, it is important to note that metal-clad cables should not be used. Instead, non-metallic (NM) or Romex cables are more suitable. The plastic boxes are designed with built-in clamps to secure the NM cable in place. It is also worth mentioning that some plastic boxes might have prepunched holes, which can be advantageous for air sealing.
To install wiring in a plastic electrical box, it is crucial to follow safety precautions. Ensure that the power is turned off at the circuit breaker panel box before beginning any work. Use a voltage tester to confirm that the power is indeed off at the electrical outlet you will be working with. Once confirmed, unscrew the faceplate and remove the outlet from the box. Create a hole in the back of the old box using a screwdriver, targeting one of the knockouts usually found in the corners.
Feed your new wiring through the hole you created, and out the other side of the wall. The friction fit of the knockout will hold the wires in place. Remember to leave about 1/4 inch of insulation beyond the cable clamp or friction point to protect the wires inside the cable. Additionally, ensure you have at least 6 inches of conductor from where the cable enters the box for the makeup of the receptacle. Finally, connect the new wiring to the outlet, and you can enjoy your newly installed outlet.
