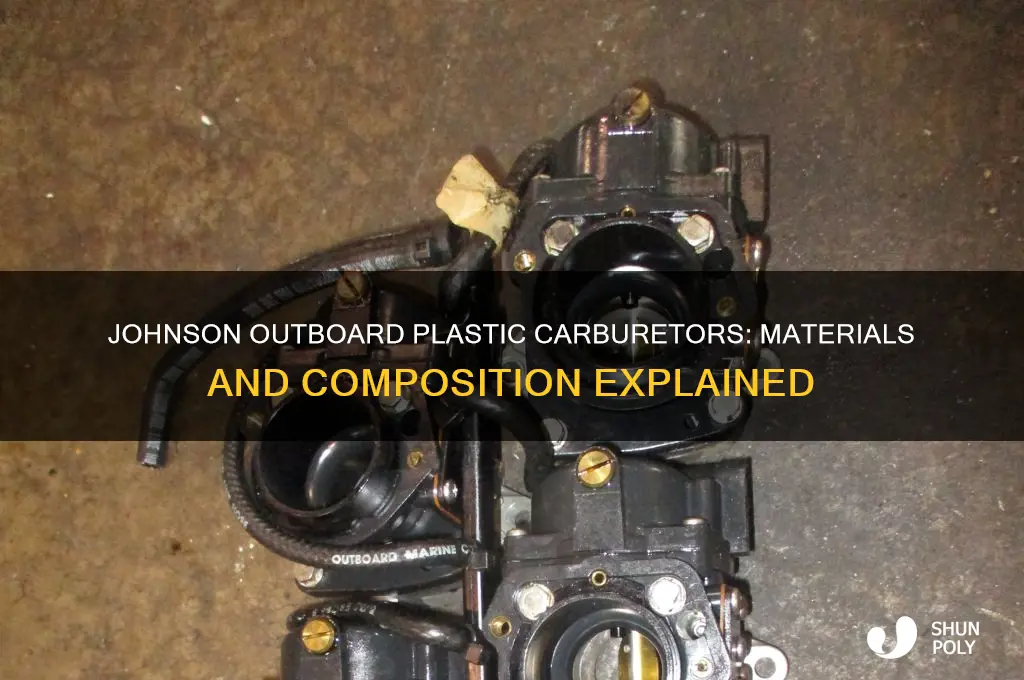

Johnson outboard plastic carburetors are typically constructed from a specialized, durable plastic material known as glass-filled nylon or polyamide. This material is chosen for its excellent resistance to fuel and oil, as well as its ability to withstand the harsh marine environment, including exposure to saltwater, UV radiation, and temperature fluctuations. The use of plastic in these carburetors offers advantages such as reduced weight, lower manufacturing costs, and improved corrosion resistance compared to traditional metal carburetors. However, it’s important to note that while the main body and components are plastic, critical parts like gaskets, O-rings, and internal components may still be made from rubber or other materials to ensure proper sealing and functionality.
| Characteristics | Values |
|---|---|
| Material | Nylon 6/6 (Polyamide 66) |
| Additives | Glass fiber reinforcement (for strength and heat resistance), UV stabilizers (for sun protection), Lubricants (for reduced friction) |
| Properties | Lightweight, Corrosion resistant, Fuel resistant, Cost-effective, Moldable |
| Common Models | Used in various Johnson outboard motors, particularly smaller horsepower models |
| Advantages | Lower cost compared to metal carburetors, Easier to manufacture, Less prone to corrosion |
| Disadvantages | Less durable than metal carburetors, Can warp or crack under extreme heat or stress, More susceptible to damage from ethanol-blended fuels |
| Maintenance | Regular cleaning and inspection recommended, Use of ethanol-free fuel or fuel stabilizer advised |
Explore related products
What You'll Learn
- Materials Composition: Johnson outboard plastic carburetors are primarily made from durable, lightweight nylon or polypropylene
- Manufacturing Process: Injection molding is commonly used to produce these plastic carburetor components
- Advantages of Plastic: Plastic carburetors offer corrosion resistance and cost-effectiveness compared to metal alternatives
- Common Components: Includes float bowls, choke plates, and throttle shafts made from engineered plastics
- Durability Concerns: Plastic carburetors may degrade over time due to fuel exposure and UV rays
Materials Composition: Johnson outboard plastic carburetors are primarily made from durable, lightweight nylon or polypropylene
Johnson outboard plastic carburetors owe their reliability to a carefully selected materials composition. At the heart of their design lies a choice between two robust thermoplastics: nylon and polypropylene. These materials are not selected arbitrarily; their properties align precisely with the demanding environment of marine engines. Nylon, known for its high tensile strength and resistance to wear, ensures the carburetor can withstand the constant vibration and mechanical stress of outboard operation. Polypropylene, on the other hand, offers exceptional chemical resistance, protecting the carburetor from the corrosive effects of fuel and saltwater.
The decision to use nylon or polypropylene in Johnson carburetors is a strategic one, balancing durability with weight considerations. Both materials are significantly lighter than metal, reducing the overall weight of the engine without compromising performance. This lightweight advantage is particularly critical in marine applications, where every ounce saved contributes to better fuel efficiency and handling. However, the choice between nylon and polypropylene may also depend on the specific model and intended use, as each material brings unique benefits to the table.
For enthusiasts and mechanics working with Johnson outboard engines, understanding the material composition of these carburetors is essential for maintenance and troubleshooting. Nylon, while durable, can be more susceptible to heat degradation over time, particularly in high-performance engines. Polypropylene, though chemically resistant, may exhibit greater flexibility, which could impact precision in fuel delivery under extreme conditions. Recognizing these characteristics allows for informed decisions when inspecting or replacing carburetor components.
Practical tips for maintaining plastic carburetors include regular inspection for cracks or warping, especially in nylon components exposed to prolonged heat. Cleaning should be done with mild solvents to avoid damaging the polypropylene’s surface. For those considering aftermarket replacements, ensure compatibility with the original material to maintain optimal performance. By leveraging the inherent strengths of nylon and polypropylene, Johnson outboard carburetors deliver a blend of durability, efficiency, and reliability that meets the rigors of marine environments.
Unveiling the Plastic Composition of Screen Protectors: A Comprehensive Guide
You may want to see also
Explore related products
Manufacturing Process: Injection molding is commonly used to produce these plastic carburetor components
Injection molding stands as the cornerstone of manufacturing plastic carburetor components for Johnson outboard motors, offering precision, scalability, and cost-efficiency. This process begins with heating thermoplastic polymers, such as nylon or polypropylene, to their melting point, typically between 180°C and 260°C, depending on the material. The molten plastic is then injected under high pressure into a mold cavity designed to the exact specifications of the carburetor part. This method ensures consistent wall thickness, intricate detailing, and minimal material waste, making it ideal for mass production.
The mold itself is a critical component, often machined from hardened steel or aluminum to withstand thousands of cycles without warping. For carburetor components, the mold must incorporate features like fuel passages, throttle bores, and mounting points with tolerances as tight as ±0.05 mm. Cooling channels within the mold regulate temperature, reducing cycle times to as little as 30 seconds per part. This efficiency is essential for meeting the high-volume demands of outboard motor manufacturing.
Material selection plays a pivotal role in the durability and performance of plastic carburetors. Nylon 6/6, for instance, is favored for its resistance to fuel and oil, while glass-filled polypropylene enhances rigidity and thermal stability. Additives such as UV stabilizers and antioxidants are often incorporated to extend the component’s lifespan in harsh marine environments. The choice of material directly influences the injection molding parameters, including melt temperature, injection speed, and cooling time.
Despite its advantages, injection molding requires meticulous process control to avoid defects like warping, sink marks, or voids. Operators must monitor factors such as mold temperature, injection pressure, and material moisture content. For example, excessive moisture in hygroscopic materials like nylon can lead to steam formation during melting, causing surface imperfections. Post-molding operations, such as machining or assembly, are minimized due to the process’s inherent precision, but quality checks remain essential to ensure each part meets stringent performance standards.
In conclusion, injection molding is not just a manufacturing process but a strategic choice for producing Johnson outboard plastic carburetors. Its ability to balance precision, efficiency, and material performance makes it indispensable in the marine industry. By understanding the intricacies of this process, manufacturers can optimize production while ensuring the reliability and longevity of these critical engine components.
CTK700 Plastic Composition: Unveiling the Material Behind the Device
You may want to see also
Explore related products
Advantages of Plastic: Plastic carburetors offer corrosion resistance and cost-effectiveness compared to metal alternatives
Plastic carburetors in Johnson outboard motors are typically made from durable, engineered polymers such as nylon or polyamide, which are chosen for their specific mechanical and chemical properties. These materials are not only lightweight but also inherently resistant to the harsh marine environment, where saltwater and humidity can quickly degrade metal components. This section delves into the advantages of plastic carburetors, focusing on their corrosion resistance and cost-effectiveness compared to metal alternatives.
One of the most significant benefits of plastic carburetors is their corrosion resistance. Unlike metal carburetors, which are prone to rust and oxidation when exposed to saltwater or moisture, plastic carburetors remain unaffected by these corrosive elements. For instance, nylon-based carburetors can withstand prolonged exposure to saltwater without degradation, making them ideal for marine applications. This resistance eliminates the need for frequent maintenance or replacement due to corrosion, ensuring longer service life and reliability. Boat owners operating in coastal or saltwater environments can particularly benefit from this advantage, as it reduces downtime and repair costs associated with corroded carburetor parts.
From a cost perspective, plastic carburetors are significantly more affordable to manufacture than their metal counterparts. The production process for plastic components involves injection molding, which is faster and less labor-intensive than machining metal parts. Additionally, the raw materials used in plastic carburetors are generally less expensive than metals like aluminum or brass. This cost-effectiveness translates to lower prices for consumers, making plastic carburetors an attractive option for budget-conscious boat owners. Moreover, the reduced weight of plastic carburetors contributes to fuel efficiency, as lighter engines require less power to operate, further enhancing their economic appeal.
A comparative analysis highlights the trade-offs between plastic and metal carburetors. While metal carburetors may offer higher thermal conductivity and durability in extreme temperatures, plastic carburetors excel in corrosion resistance and cost efficiency. For most recreational boating applications, where moderate temperatures and saltwater exposure are common, plastic carburetors provide a practical and reliable solution. However, in high-performance or racing applications, where heat dissipation is critical, metal carburetors may still be preferred. Boat owners should consider their specific usage conditions when choosing between the two materials.
To maximize the benefits of plastic carburetors, proper maintenance is essential. While plastic is resistant to corrosion, it can still be damaged by debris or improper cleaning. Regularly inspect the carburetor for cracks or wear, and use mild cleaning agents to avoid chemical damage. Avoid using abrasive tools that could scratch the surface, as this can compromise its integrity. By following these practical tips, boat owners can ensure their plastic carburetors perform optimally and last for years, leveraging the full advantages of this innovative material choice.
Unveiling the Shiny Plastic Material Used in Modern Shoe Design
You may want to see also
Explore related products
Common Components: Includes float bowls, choke plates, and throttle shafts made from engineered plastics
Engineered plastics dominate the construction of Johnson outboard carburetor components like float bowls, choke plates, and throttle shafts due to their unique blend of properties. These materials, often nylon or acetal copolymer, offer lightweight durability, resistance to fuel and oil, and dimensional stability under fluctuating temperatures. Unlike metal, they won’t corrode or warp, ensuring consistent performance in marine environments where saltwater and humidity are constant threats. This shift from traditional metal parts reflects a broader trend in outboard motor design: prioritizing longevity and reliability without sacrificing efficiency.
Consider the float bowl, a critical component regulating fuel flow. Engineered plastics provide a smooth, non-porous surface that prevents fuel contamination and ensures precise metering. Their low friction coefficient reduces wear on internal mechanisms, extending the carburetor’s lifespan. Similarly, choke plates made from these materials resist thermal expansion, maintaining consistent operation during cold starts. Throttle shafts benefit from the plastic’s self-lubricating properties, minimizing the need for additional grease or oil that could attract debris and clog passages.
However, working with these components requires caution. Engineered plastics, while robust, are not indestructible. Over-tightening fasteners or using sharp tools can crack or deform them. When replacing a float bowl, for instance, torque screws to manufacturer specifications—typically 2–3 Nm for small carburetor screws. Avoid using metal tools directly on plastic surfaces; instead, opt for nylon or plastic-tipped instruments to prevent scratches. For throttle shafts, inspect for hairline cracks or grooves during routine maintenance, as these can lead to erratic engine behavior.
A comparative analysis highlights the advantages of plastic over metal in these applications. Metal float bowls, for example, are prone to corrosion from ethanol-blended fuels, leading to pitting and fuel leaks. Plastic components, however, remain unaffected by ethanol, making them ideal for modern fuel blends. Choke plates in metal carburetors often warp under heat, causing poor starting performance, whereas plastic plates retain their shape. While initial skepticism surrounded plastic parts in high-stress applications, decades of use have proven their reliability, particularly in Johnson outboards from the 1980s onward.
For DIY enthusiasts, understanding these materials simplifies troubleshooting. A sticking choke plate, for instance, may indicate debris buildup rather than material failure. Cleaning with carburetor cleaner and a soft brush often restores function. Similarly, a leaky float bowl gasket can be replaced with a plastic-compatible sealant, ensuring a tight seal without damaging the component. Always refer to the Johnson service manual for part-specific recommendations, as some models use proprietary plastic blends requiring specialized care. By embracing the properties of engineered plastics, owners can maintain their outboard carburetors effectively, ensuring smooth operation season after season.
Unveiling the Plastic Material Behind Political Campaign Yard Signs
You may want to see also
Explore related products
Durability Concerns: Plastic carburetors may degrade over time due to fuel exposure and UV rays
Plastic carburetors in Johnson outboard motors, often made from nylon or polyamide composites, face significant durability challenges due to their material composition. These polymers, while lightweight and cost-effective, are inherently susceptible to chemical breakdown when exposed to ethanol-blended fuels, which are now standard in most gasoline. Ethanol acts as a solvent, causing the plastic to become brittle and prone to cracking over time. This degradation is accelerated in marine environments where fuel quality can vary, and engines may sit idle for extended periods, allowing fuel to stagnate within the carburetor.
UV radiation further exacerbates the issue, particularly for outboard motors operating in open water. Prolonged exposure to sunlight can cause photodegradation, where the plastic’s molecular structure weakens, leading to surface chalking, loss of flexibility, and eventual failure. Unlike metal carburetors, which can withstand decades of use with proper maintenance, plastic components often require replacement within 5–10 years, depending on usage intensity and environmental conditions. This vulnerability highlights the trade-off between the initial affordability of plastic parts and their long-term reliability.
To mitigate these risks, owners should adopt proactive maintenance practices. Regularly inspect carburetor components for signs of cracking, warping, or discoloration, especially around fuel passages and gaskets. Use fuel stabilizers to minimize ethanol-related damage during storage, and consider installing a fuel water separator to reduce contamination. For UV protection, apply marine-grade UV inhibitors or store the outboard under a cover when not in use. In severe cases, upgrading to aftermarket metal carburetor kits may be a worthwhile investment, though this requires careful compatibility checks with the engine model.
Comparatively, while plastic carburetors offer advantages in terms of corrosion resistance and manufacturing efficiency, their lifespan pales in comparison to metal counterparts. For instance, aluminum or brass carburetors can endure harsh marine conditions for 20+ years with routine care. Plastic’s limitations underscore the importance of understanding its material properties and planning for eventual replacement. Owners of older Johnson outboards, particularly those with plastic carburetors, should budget for maintenance and keep spare parts on hand to avoid unexpected breakdowns during critical operations.
Instructively, preventing premature failure involves a combination of vigilance and preventative measures. Flush the fuel system annually to remove ethanol residues, and run the engine periodically during off-seasons to circulate fresh fuel. When replacing parts, opt for OEM components or high-quality aftermarket alternatives designed to resist ethanol and UV damage. By addressing both chemical and environmental stressors, users can extend the functional life of plastic carburetors, though they should remain aware of their inherent limitations and plan accordingly for long-term engine reliability.
Understanding Hard White Plastic Washers: Materials and Manufacturing Insights
You may want to see also
Frequently asked questions
Johnson outboard plastic carburetors are typically made of a durable, lightweight thermoplastic material, often nylon or a similar polymer, designed to resist corrosion and withstand marine environments.
No, Johnson outboard plastic carburetors are made of thermoplastic materials, whereas metal carburetors are constructed from aluminum or other metal alloys, offering different properties in terms of weight, corrosion resistance, and durability.
Yes, while the main body of Johnson outboard plastic carburetors is made of plastic, they often include metal components such as screws, springs, and gaskets to ensure proper functionality and assembly.
The plastic used in Johnson outboard carburetors is specifically formulated to resist saltwater corrosion, UV exposure, and fuel degradation, ensuring longevity and reliability in harsh marine conditions.
Johnson outboard plastic carburetors are generally designed for replacement rather than repair due to the complexity of the plastic components. However, minor issues like clogged jets or worn gaskets can sometimes be addressed with cleaning or part replacement.
