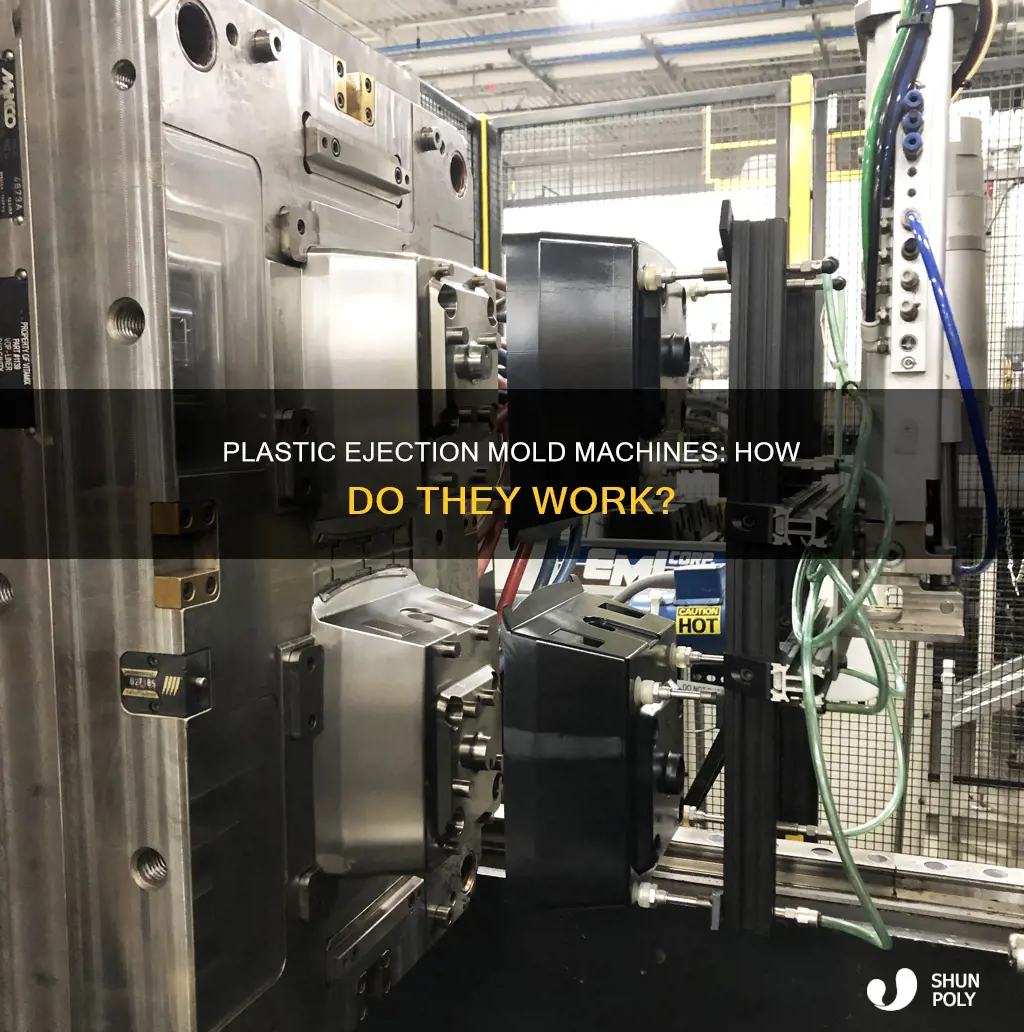

Plastic ejection mould machines, also known as injection moulding machines, are used to manufacture plastic products. The process involves feeding plastic pellets into a hopper, where they are heated and melted in a barrel. The molten plastic is then injected into a mould cavity at high pressure, where it cools and solidifies into the desired shape. The size of the machine varies depending on the size of the parts produced, with small tabletop machines producing parts weighing a few grams, and large machines producing parts weighing several kilograms. Injection moulding machines have two main parts: an injection unit and a clamping unit. The moulds are made in two sections, which are clamped together and secured to a platen. Once the injected resins have cooled, the moulds are opened, and the solid plastic object is ejected with the aid of an ejection bar.
| Characteristics | Values |
|---|---|
| Purpose | Manufacturing plastic products by the injection molding process |
| Main parts | Injection unit, clamping unit |
| Orientation | Horizontal or vertical |
| Clamps | Manual, hydraulic, magnetic |
| Driving systems | Hydraulic, mechanical, electrical, or hybrid |
| Plastic ejection | Requires a separate ejection system for each daylight |
| Mold channels | Channels through which plastic resins flow into mold cavities |
| Mold finishing | Requires careful polishing to prevent scratches and cracks |
| Ejection stroke | Determined by the length of the ejector cylinder |
| Size | Varies from about 1 ton to more than 1000 tons |
| Cost | Ranges from a few thousand to hundreds of thousands of dollars |
Explore related products
What You'll Learn
Injection moulding process
Injection moulding is a manufacturing process that involves injecting molten material into a mould to produce parts. The process can be performed with various materials, including metals, glasses, elastomers, confections, and commonly, thermoplastic and thermosetting polymers. Injection moulding is the most common modern method of manufacturing plastic parts and is ideal for producing high volumes of identical objects.
The injection moulding process begins with plastic pellets being fed into a hopper. The pellets are then heated and melted in a barrel, which is equipped with a screw that moves the plastic forward. This screw delivers the raw material forward, mixes and homogenises the thermal and viscous distributions of the polymer, and reduces the required heating time by mechanically shearing the material and adding frictional heating. Upon entering the barrel, the temperature increases, and the Van der Waals forces that resist the relative flow of individual chains are weakened, reducing the material's viscosity and enabling it to flow.
Once the plastic has melted, it is injected at high pressure into the mould cavity, where it cools and solidifies into the desired shape. The moulds can be of a single or multiple cavities, with each cavity either forming identical parts or unique geometries during a single cycle. Moulds are typically made from tool steels, but stainless steels and aluminium moulds are also used for certain applications. The choice of mould material depends on factors such as production volume, with aluminium being more suitable for low-volume applications due to reduced fabrication costs and time.
The size of the injection moulding machine varies depending on the size of the parts being produced, ranging from small tabletop machines producing parts weighing a few grams to large machines producing parts weighing several kilograms. The cost of the machine also depends on its size, features, and manufacturer, with larger machines generally being more expensive to purchase and operate.
Plasticity Index: Can It Ever Be Negative?
You may want to see also
Explore related products
Injection moulding machine components
Injection moulding is a process used to create plastic parts from a mould. The size of the machine used in the process varies depending on the size and complexity of the desired part, as well as the required production volume.
An injection moulding machine has four main components: the base, the hopper, the barrel, and the clamping unit. The base holds all the other parts and the electronics needed to run the machine. The hopper is where the plastic material is poured and usually contains a dryer to keep moisture away from the plastic. The barrel is where the plastic is melted, and the clamping unit holds the injection mould.
There are also smaller components that make up an injection moulding machine. The injection unit, which melts the raw material and guides it into the mould, consists of the hopper, barrel, and screw. The nozzle is located at the bottom of the ejector system and pushes the liquified plastic out of the barrel and into the mould. The mould itself consists of two steel parts attached to two large clamping plates. The mould cavity and the mould core are indispensable parts of the mould, working together to ensure the mould's structure is robust and the pressure is balanced.
The ejection system enables the removal of the moulded component from the mould once it has solidified. The ejector cylinder determines the maximum available ejection stroke on the moulding machine. Ejector pins are added to a mould design to vent gas traps and release interfacial vacuums between the component and the mould core.
Creating Eerie Floating Plastic Doll Jars
You may want to see also
Explore related products
Clamping units
Plastic injection moulding machines are a type of manufacturing equipment used to mass-produce plastic parts. They are composed of two main parts: an injection unit and a clamping unit.
The clamping unit's primary function is to exert a sufficient "clamping force" to counter the forces generated by the injection unit. This force is determined by the power of the clamping motor drive and clamping cylinder. Hydraulic force is commonly used to push the moving platen, attached to the mould core, towards the stationary platen, which is attached to the mould cavity.
The safety of workers is another crucial aspect of clamping units. The clamping unit's safety function protects workers from being clamped by the machine through mechanical, hydraulic, and electrical means. It is illegal to dismantle the safety mechanism to improve user-friendliness.
The speed of mould opening and locking is another factor to consider. If the pressure flow is insufficient or not adjusted correctly, increasing the pressure and speed of these processes may be necessary.
Plastic Industry: A Profitable Future?
You may want to see also
Explore related products
Runner systems
Plastic ejection mould machines are used in the process of injection moulding, which involves feeding plastic pellets into a hopper, heating and melting the plastic in a barrel, injecting the molten plastic into a mould cavity at high pressure, and then cooling and solidifying the plastic into the desired shape.
One of the key components of plastic ejection mould machines is the runner system, which plays a significant role in part formation. There are two primary types of runner systems: cold runners and hot runners. Cold runner systems are more cost-effective and simpler to operate, while hot runner systems offer faster cycle times and reduced waste.
Cold runners are channels formed between the two halves of the mould. They carry the plastic from the injection moulding machine nozzle to the cavities. During each moulding cycle, the cold runner is ejected along with the newly formed plastic parts. This results in waste, and the solidified runner must be managed or recycled. Cold runner systems are ideal for low to medium-low volume runs and simple part designs due to limitations from plastic cooling in the runners.
Hot runner systems, on the other hand, are heated channels that keep the polymer in a molten state. They eliminate the need to deal with a frozen or solidified runner. Hot runners are more complex, costly, and require more maintenance. They are assembled from components manufactured by specialised companies. Hot runner systems became popular in the 1980s and 1990s due to technological advancements and the rising cost of plastic materials.
The choice between a cold or hot runner system depends on various factors, including production requirements, part design complexity, and budget constraints. Additionally, the ejection mechanisms in plastic ejection mould machines can vary significantly in function and design. It is crucial to carefully consider the design and choice of the ejection method, taking into account factors such as ejector pin marks, cavity venting, interfacial vacuum release, and sufficient "daylight" for component ejection.
Spotting Fake Sunglasses: Plastic or Not?
You may want to see also
Explore related products
Ejection systems
Plastic injection moulding machines are used to produce high-quality plastic parts. The injection moulding process involves feeding plastic pellets into a hopper, where they are heated and melted. The molten plastic is then injected into a mould cavity at high pressure, where it cools and solidifies into the desired shape.
The ejection system is a crucial component of the plastic injection moulding process, as it enables the removal of the moulded component from the mould once it has solidified. The choice of ejection method depends on various factors, such as production requirements. The ejection mechanism can vary significantly in function and design.
There are several types of ejection systems, including mechanical, pressure-driven, pneumatic, and hybrid systems. The mechanical ejection system is the most commonly used type, where tools are used to push or pull the product out of the cavity. This system often employs ejector pins or plates to remove the product. The push-pull ejection system uses reciprocating force to eject the product, making it suitable for fast ejection speeds.
The pressure ejection system, or water-driven ejection system, uses pressure-induced tension to facilitate ejection. This system provides precise control of the ejection force and movement, making it suitable for complex products requiring high precision. The ejector pin system is another widely used mechanical system, where hydraulic or pneumatic systems operate a series of ejector pins to push the product out.
The maximum ejection stroke of the moulding machine is determined by the length of the ejector cylinder. It is important to consider whether the ejection system will be used for cavity vent purposes and whether it needs to release interfacial vacuums between the component and the mould core prior to ejection. Additionally, sufficient "daylight" or open space is required for component ejection and clearance.
Plastic's Chilling Effect: Keeping Things Cold
You may want to see also
Frequently asked questions
An ejection mould machine, also known as an injection press, is a machine used for manufacturing plastic products by the injection moulding process.
The plastic pellets are loaded into a hopper, heated and melted in a barrel, and then injected into the mould cavity at high pressure, where it cools and solidifies into the desired shape. The mould will then open when the plastic has solidified, and the part is ejected.
Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electrical, or hybrid.
