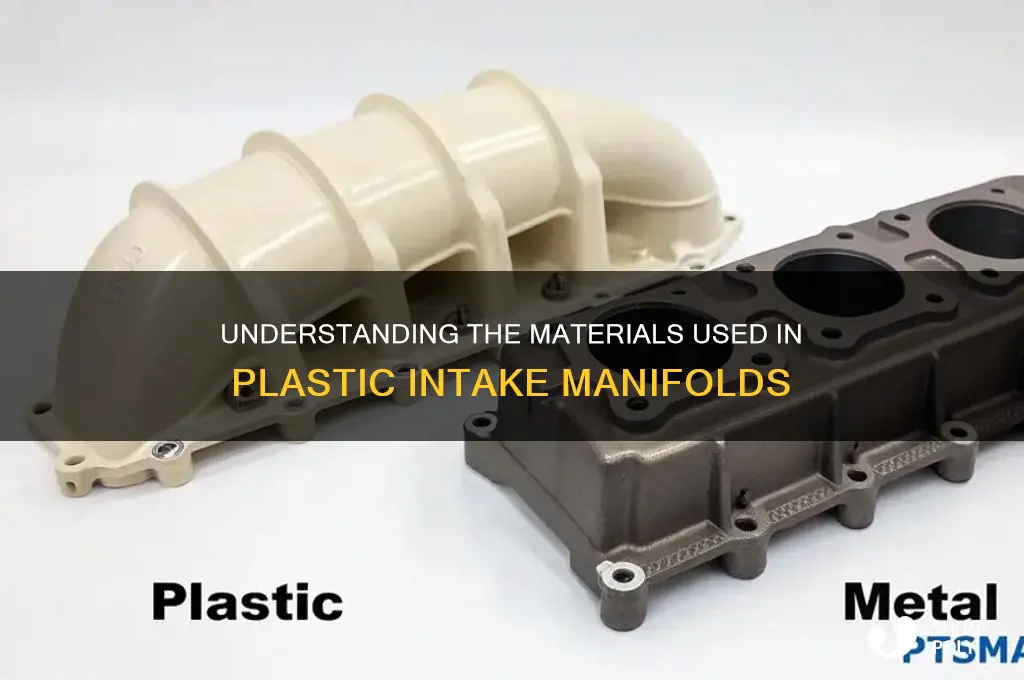

Plastic intake manifolds, commonly used in modern vehicles, are typically made from a blend of high-performance polymers, such as nylon, glass-filled polypropylene, or reinforced thermoplastics. These materials are chosen for their lightweight properties, durability, and resistance to heat and chemicals, making them ideal for withstanding the demanding conditions under the hood. The manufacturing process often involves injection molding, which allows for complex designs and precise tolerances, ensuring optimal airflow and efficiency. Compared to traditional aluminum or metal manifolds, plastic versions offer cost-effectiveness, reduced weight, and improved corrosion resistance, contributing to better fuel efficiency and overall engine performance.
| Characteristics | Values |
|---|---|
| Material | Glass-filled nylon (typically 30-40% glass fiber) |
| Common Grades | PA66 (Nylon 66), PA6 (Nylon 6) |
| Additives | Impact modifiers, heat stabilizers, UV stabilizers, lubricants |
| Manufacturing Process | Injection molding |
| Key Properties | High strength-to-weight ratio, heat resistance (up to 200°C), chemical resistance, dimensional stability |
| Advantages | Lightweight, cost-effective, reduced NVH (noise, vibration, harshness), design flexibility |
| Disadvantages | Lower heat resistance compared to aluminum, potential for warping under extreme conditions |
| Typical Applications | Automotive engines, motorcycles, small engines |
| Common Brands | DuPont Zytel, BASF Ultramid, Solvay Technyl |
| Industry Standards | Meets automotive standards like ISO 16232 for cleanliness, SAE J2064 for material performance |
Explore related products
What You'll Learn
- Material Composition: Nylon, glass fiber, or polypropylene composites are commonly used for durability
- Reinforcement Techniques: Glass or carbon fibers enhance strength and heat resistance in manifolds
- Manufacturing Process: Injection molding is the primary method for shaping plastic manifolds
- Thermal Properties: Plastics are engineered to withstand engine heat without warping or cracking
- Cost vs. Metal: Plastic manifolds are lighter and cheaper than aluminum or steel alternatives
Material Composition: Nylon, glass fiber, or polypropylene composites are commonly used for durability
Plastic intake manifolds, a critical component in modern engines, have evolved significantly in terms of material composition. The shift from traditional metal to advanced plastics like nylon, glass fiber, and polypropylene composites is driven by the need for durability, lightweight design, and cost-efficiency. These materials are engineered to withstand the harsh under-hood environment, including temperature fluctuations, chemical exposure, and mechanical stress, while maintaining optimal performance.
Nylon, a thermoplastic polymer, is a popular choice due to its inherent toughness and resistance to wear. When reinforced with glass fibers, nylon composites achieve a balance of strength and flexibility, making them ideal for intake manifolds. For instance, a 30% glass-filled nylon can exhibit a tensile strength of up to 15,000 psi, ensuring longevity even under high-pressure conditions. This material is particularly suited for applications where vibration damping is critical, as it reduces noise and prevents fatigue-related failures.
Polypropylene composites, on the other hand, offer excellent chemical resistance and thermal stability, often enhanced with additives like talc or mineral fillers. These composites are lightweight, with a density of approximately 0.9–1.2 g/cm³, contributing to overall vehicle weight reduction. A common formulation includes 20–30% talc-filled polypropylene, which improves stiffness and heat resistance, making it suitable for intake manifolds in turbocharged engines where temperatures can exceed 200°F.
Glass fiber reinforcement is a key element in both nylon and polypropylene composites, providing dimensional stability and reducing thermal expansion. For example, a 40% glass-fiber-reinforced polypropylene can reduce thermal expansion by up to 50% compared to unfilled plastics. This is crucial for maintaining the manifold’s shape and sealing integrity under extreme conditions. Manufacturers often specify a minimum glass fiber content of 30% to ensure the material meets automotive standards for durability and performance.
In practice, selecting the right composite involves considering the engine’s specific demands. For high-performance engines, nylon-based composites are often preferred for their impact resistance and fatigue endurance. Polypropylene composites, however, are more cost-effective and are typically used in standard passenger vehicles. Engineers must also account for processing requirements, as glass-filled materials demand specialized molding techniques to avoid fiber degradation. By tailoring the material composition, manufacturers can optimize intake manifolds for durability, efficiency, and reliability across diverse automotive applications.
Unveiling the Materials: What Plastics Are Dildos Made Of?
You may want to see also
Explore related products
Reinforcement Techniques: Glass or carbon fibers enhance strength and heat resistance in manifolds
Plastic intake manifolds, often made from nylon or polyphthalamide (PPA), face significant challenges under the hood: extreme temperatures, vibration, and pressure fluctuations. To combat these, engineers turn to reinforcement techniques, specifically incorporating glass or carbon fibers into the polymer matrix. These fibers act as a skeletal structure, dramatically increasing the material's strength and stiffness while improving its resistance to heat distortion.
Glass fibers, the more common choice due to their lower cost, are typically incorporated at levels ranging from 15% to 30% by weight. This addition can double the tensile strength of the base plastic, allowing the manifold to withstand higher underhood pressures without deformation. Carbon fibers, while more expensive, offer even greater strength-to-weight ratios and superior heat resistance, making them ideal for high-performance applications where every gram counts and operating temperatures soar.
The integration of these fibers isn't simply a matter of mixing them into the plastic. Careful consideration must be given to fiber length, orientation, and distribution during the molding process. Short fibers, typically 0.1 to 0.5 millimeters in length, are commonly used due to their ease of processing. Longer fibers, while offering potentially greater strength, can be more challenging to disperse evenly and may lead to processing difficulties.
The benefits of fiber reinforcement extend beyond mere strength. The improved thermal conductivity of glass and carbon fibers helps dissipate heat more efficiently, reducing the risk of thermal degradation and ensuring the manifold maintains its structural integrity even under prolonged high-temperature operation. This is particularly crucial in modern turbocharged engines where intake air temperatures can reach well above 200°C.
While fiber reinforcement significantly enhances the performance of plastic intake manifolds, it's not without its considerations. The increased stiffness can make the material more brittle, potentially leading to cracking under impact. Therefore, careful design and material selection are crucial to balance strength, flexibility, and cost. Ultimately, the choice between glass and carbon fibers depends on the specific application's demands, with glass offering a cost-effective solution for most applications and carbon fibers reserved for high-performance scenarios where weight savings and extreme heat resistance are paramount.
Understanding Plastic Wall Tile Composition: Materials and Manufacturing Process
You may want to see also
Explore related products
Manufacturing Process: Injection molding is the primary method for shaping plastic manifolds
Injection molding stands as the cornerstone of plastic intake manifold production, offering precision, efficiency, and scalability unmatched by other methods. This process begins with heating thermoplastic pellets—typically nylon, polypropylene, or glass-filled polymers—to a molten state, often between 400°F and 600°F, depending on the material. The molten plastic is then injected under high pressure into a two-piece mold cavity, which is preheated to 150°F–250°F to prevent material sticking and ensure uniform cooling. The mold, machined from hardened steel or aluminum, is designed with intricate channels and cooling lines to replicate the manifold’s complex geometry, including runners, gates, and air passages. Once the plastic solidifies, the mold opens, and the part is ejected, ready for secondary operations like drilling or surface finishing.
The success of injection molding hinges on meticulous control of process parameters. Cycle times, typically 30–60 seconds, are optimized to balance productivity and part quality. Clamping force, ranging from 500 to 2,000 tons, ensures the mold halves remain sealed during injection. Material selection is critical; glass-filled nylon, for instance, offers heat resistance and structural integrity, making it ideal for under-hood applications. However, this material’s abrasiveness requires specialized screws and barrels to prevent wear. Additives like UV stabilizers or flame retardants may be incorporated to enhance durability, though these can increase costs by 10–20%.
Despite its advantages, injection molding is not without challenges. Warping, sink marks, and voids can occur if cooling rates are uneven or if the mold design is flawed. To mitigate these issues, designers employ techniques like ribbing, draft angles, and uniform wall thicknesses. Simulation software, such as Moldflow, is often used to predict flow patterns and identify potential defects before production. Post-molding inspections, including pressure testing and dimensional analysis, ensure parts meet stringent automotive standards, such as SAE J2044 for burst resistance.
A key takeaway is that injection molding’s dominance in plastic manifold production stems from its ability to meet the automotive industry’s demands for lightweight, cost-effective components. Compared to aluminum or composite alternatives, plastic manifolds reduce vehicle weight by up to 50%, improving fuel efficiency. While initial tooling costs can exceed $100,000, the process’s high repeatability and low per-unit cost make it economically viable for high-volume production. For engineers and manufacturers, mastering injection molding’s nuances is essential to leveraging its full potential in creating next-generation intake systems.
Flexible Plastic Essentials: Identifying Common Items Made from This Material
You may want to see also
Explore related products
Thermal Properties: Plastics are engineered to withstand engine heat without warping or cracking
Plastic intake manifolds, often crafted from materials like glass-filled nylon or polypropylene, are designed to endure the harsh thermal environment of an engine bay. These polymers are not your everyday plastics; they’re engineered with additives and reinforcements to resist temperatures ranging from -40°C to 220°C. For instance, glass-filled nylon, which comprises up to 30% glass fibers, significantly enhances heat resistance and structural integrity, ensuring the manifold doesn’t warp under the hood’s intense heat. This engineering precision allows plastic manifolds to perform reliably in conditions that would degrade lesser materials.
Consider the thermal expansion coefficient, a critical factor in material selection. Plastics like polypropylene expand minimally when exposed to heat, a property achieved through molecular chain modifications and fillers. This controlled expansion prevents cracking or misalignment with adjacent metal components, even as the engine reaches operating temperatures of 90°C to 100°C. Manufacturers often pair these plastics with heat shields or coatings to further mitigate thermal stress, ensuring longevity in high-temperature applications.
From a practical standpoint, the thermal stability of plastic intake manifolds translates to real-world benefits. Unlike aluminum, which can warp at temperatures exceeding 250°C, engineered plastics maintain their shape and functionality within typical engine operating ranges. This reliability is particularly crucial in turbocharged or high-performance engines, where heat levels are elevated. For DIY enthusiasts, selecting a manifold made from glass-filled nylon or mineral-reinforced polypropylene ensures compatibility with under-hood conditions, reducing the risk of failure during installation or operation.
However, not all plastics are created equal. Cheaper, unreinforced polymers may degrade prematurely, leading to leaks or cracks. Always verify the material composition and temperature ratings before installation. For example, a manifold rated for 180°C continuous use is unsuitable for engines with peak temperatures above 200°C. Pairing the manifold with a thermal barrier or ensuring proper airflow around the engine bay can further enhance its resilience, making it a cost-effective and lightweight alternative to metal counterparts.
In summary, the thermal properties of plastic intake manifolds are a testament to material science advancements. By selecting polymers with tailored heat resistance and understanding their limitations, both manufacturers and consumers can leverage the benefits of reduced weight, cost, and corrosion resistance without compromising performance. Whether for daily driving or high-performance applications, these engineered plastics prove that not all materials need to be metal to withstand the heat.
Plastic Frying Pan: A Melting Disaster or Innovative Kitchen Tool?
You may want to see also
Explore related products
Cost vs. Metal: Plastic manifolds are lighter and cheaper than aluminum or steel alternatives
Plastic intake manifolds, typically crafted from nylon 6/6, polypropylene, or glass-filled polymers, offer a compelling blend of affordability and performance. These materials are engineered to withstand under-hood temperatures exceeding 200°F, resist chemical corrosion from fuels and oils, and maintain structural integrity under vacuum pressures. Unlike aluminum or steel, which require energy-intensive casting or stamping, plastic manifolds are injection-molded in minutes, slashing production costs by up to 40%. This efficiency translates directly to vehicle pricing, making plastic manifolds a staple in economy and mid-range vehicles where cost optimization is critical.
Consider the trade-offs, however. While a plastic manifold might weigh 5-7 pounds less than its aluminum counterpart, reducing vehicle weight and improving fuel efficiency by 1-2%, it sacrifices thermal conductivity. Aluminum dissipates heat 200 times faster than plastic, a factor that can impact engine performance under sustained high-load conditions. For daily drivers operating within typical RPM ranges (2,000-4,000 RPM), this difference is negligible. But for performance enthusiasts pushing engines beyond 6,000 RPM, the thermal limitations of plastic may necessitate aftermarket upgrades.
Manufacturers often reinforce plastic manifolds with 20-30% glass fibers to enhance rigidity and reduce thermal expansion. This hybrid approach retains the weight and cost advantages of plastic while mitigating its weaknesses. For instance, a glass-filled nylon manifold can expand just 0.002 inches per linear foot when exposed to a 100°F temperature increase, compared to 0.004 inches for unreinforced plastic. Such precision engineering ensures compatibility with modern engines’ tight tolerances, avoiding leaks or warping that could void warranties.
From a maintenance perspective, plastic manifolds simplify repairs. Replacing a cracked plastic unit costs $150-$300, whereas an aluminum manifold repair can exceed $600 due to welding or machining requirements. DIY enthusiasts should note, however, that plastic manifolds require torque-sensitive installation—overtightening bolts by as little as 10 ft-lbs can deform the material. Always use a torque wrench calibrated to the manufacturer’s specifications, typically 8-12 ft-lbs for plastic intake bolts.
In the cost vs. metal debate, plastic manifolds emerge as the pragmatic choice for 90% of drivers. Their lightweight design contributes to EPA-estimated fuel savings of $100-$150 annually for average commuters, offsetting the material’s limitations. For those prioritizing longevity over initial savings, aluminum remains superior—but at a premium that few mainstream vehicles justify. Ultimately, plastic’s dominance in this component category reflects its alignment with modern automotive priorities: efficiency, accessibility, and performance within practical limits.
Understanding the Plastic Materials Used in Electrical Boxes
You may want to see also
Frequently asked questions
Plastic intake manifolds are typically made from nylon, glass-filled nylon, or polypropylene due to their durability, heat resistance, and lightweight properties.
Yes, modern plastic intake manifolds are engineered to be highly durable, often outperforming metal manifolds in terms of resistance to corrosion and thermal expansion.
Plastic intake manifolds are preferred for their lighter weight, cost-effectiveness, and ability to be molded into complex shapes for improved airflow and engine efficiency.
Yes, plastic intake manifolds are designed to withstand high temperatures, often up to 250°F (121°C), thanks to the use of heat-resistant materials like glass-filled nylon.
While plastic intake manifolds are durable, they can degrade over time due to prolonged exposure to heat, chemicals, or mechanical stress. However, proper maintenance can significantly extend their lifespan.
