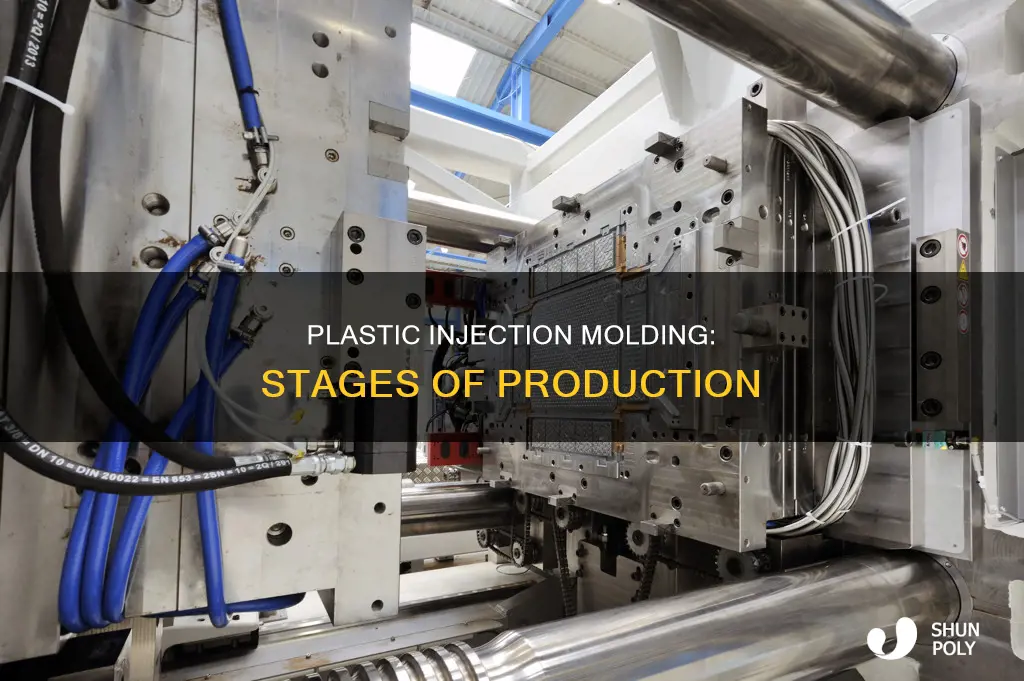

Plastic injection moulding is a manufacturing process that involves injecting molten plastic into a mould to create a desired shape. This process has gained popularity due to its ability to produce large quantities of identical parts in a cost-effective manner. The four stages in the cycle of plastic injection moulding are clamping, injection, cooling, and ejection. The process begins with raw plastic material, which is then heated and injected into a mould under pressure. The plastic undergoes a transformation, cooling and solidifying into the desired shape. The mould design is crucial, as it determines the quality, strength, durability, shape, and size of the final product. Injection moulding machines require routine maintenance and skilled operation to ensure precision and avoid common issues that can affect the quality of the finished product.
| Characteristics | Values |
|---|---|
| Number of stages | 4 |
| Stage 1 | Clamping |
| Stage 2 | Injection |
| Stage 3 | Cooling |
| Stage 4 | Ejection |
| Injection time | 2 seconds to 2 minutes |
| Injection pressure range | 35-150 MPa |
| Injection moulding machine | Needs to be routinely maintained and repaired |
| Mould | Made from strong tool metal such as steel or aluminium |
| Plastic scraps | Can be re-melted and used again |
Explore related products
What You'll Learn
Plastic is heated and injected into a mould
Injection moulding is a popular method for manufacturing plastic parts, particularly when large production runs are required. The process involves heating plastic to a molten state and injecting it into a cavity or mould to create a component that is the right shape, colour, and size.
Plastic injection moulding begins with raw plastic material in the form of granules or pellets. These are fed through a hopper and heated to a high temperature until they melt. The plastic is then injected under pressure into a single or multi-cavity mould to produce the desired shape. The mould must be sturdy to withstand the pressure involved during the injection process and allow for proper heat transfer to control the cooling process.
The injection moulding machine monitors the pressure applied to ensure safety. The rate of injection and pressure are determined and controlled by the hydraulic system in the machine. Injection speed is crucial for achieving high-quality parts, and the process must balance speed with consistency and part quality. The injection pressure can range from 35-140 MPa, and the challenge increases as pressure ranges from 100-150 MPa.
Once the plastic has been injected into the mould, it begins to cool and solidify, taking the desired shape. The mould may be heated with oil or cooled with water to achieve the optimal temperature for the final product. The cooling time depends on the wall thickness of the part and the thermodynamic properties of the plastic. After the plastic has cooled and solidified, the mould is opened, and the new component is released, ready for the next stage of production.
Plastic Waste: Where Does It Float?
You may want to see also
Explore related products
The mould is closed and clamped
The mould-closing stage is a critical step in the injection moulding process. It involves the careful clamping of the two halves of the mould together before injecting the material. This stage is essential to ensure the mould is securely closed and tightly sealed during the injection phase.
Firstly, the two halves of the mould are closed by a clamping unit. This unit ensures that the mould halves are securely attached to the injection moulding machine. One of the halves is usually designed to be stationary, while the other can slide to allow for easy insertion and removal of the moulded part. The clamping unit applies sufficient force to hold the mould halves tightly together.
The clamping force is a crucial parameter in the injection moulding process. It must be carefully controlled to prevent issues such as "flash," where excess plastic escapes from the mould due to insufficient clamping force. Proper clamping force also maintains dimensional accuracy in the final product, preventing part distortion caused by the injected plastic's pressure. Larger injection moulding machines, with higher clamping power, may take longer to close and clamp the mould securely.
Additionally, the mould design plays a significant role in the mould-closing stage. It must be designed to withstand the pressures involved during injection. The mould should be sturdy and allow for proper polymer flow along its interior surfaces. Heat transfer is another critical consideration in mould design, as it significantly impacts the cooling process and the final product's quality.
Once the mould is securely closed and clamped, the injection process can begin. This involves injecting molten plastic or polymer into the mould at high pressure. The clamping force ensures that the mould remains tightly sealed during this phase, preventing any leakage of the molten material. The injection pressure, ranging from 35-140 MPa, is controlled by the hydraulic system in the injection moulding machine.
Butter vs Plastic: Which is Greener?
You may want to see also
Explore related products
The plastic cools and solidifies
The plastic injection moulding process is a popular method for manufacturing plastic parts. It involves injecting molten material into a mould, which cools and hardens to the shape of the mould cavity. This process can be used to create a vast array of items, from small components to entire car body panels.
The plastic inside the mould begins to cool and solidify as soon as the mould is filled. The mould remains cold, which helps the plastic to solidify quickly. The cooling process is carefully designed to control heat transfer and ensure the plastic cools at the desired rate. The standard method of cooling involves passing a coolant, usually water, through holes drilled in the mould plates. This coolant absorbs heat from the mould, keeping it at a suitable temperature for the plastic to solidify efficiently.
The duration of the cooling process depends on the wall thickness of the part and the thermodynamic properties of the plastic. The part may shrink slightly during cooling, so a holding pressure is maintained to compensate for this shrinkage. This pressure is applied until the gate (the cavity entrance) solidifies, after which no more material can enter the cavity.
Once the plastic has sufficiently cooled and solidified, the mould can be opened and the part ejected. This final stage of the process is known as ejection. The cooling duration can be significantly reduced by using external cooling lines that circulate water or oil to control the temperature.
The plastic injection moulding process is advantageous due to its ability to produce identical parts at a low cost. Once the initial mould has been created, it can be used repeatedly to create countless identical parts. This process is also favoured for its ability to facilitate large production runs and significantly reduce waste material compared to other manufacturing methods.
Revive Scratched Plastic Frames: Simple Tricks to Make Them Shine
You may want to see also
Explore related products
The mould is opened
The mould-opening stage of plastic injection moulding is the penultimate step in the process. It occurs after the plastic has been injected into the mould and cooled, but before the ejection of the plastic product.
The mould-opening stage is critical as it determines the quality of the final product. If the mould is opened too early, the plastic may not have set properly, leading to deformation or warping of the product. This can also cause the product to stick to the mould, making it difficult to remove and potentially damaging the mould. If the mould is opened too late, the plastic may have shrunk, resulting in a smaller product than intended.
To ensure the mould is opened at the right time, several factors must be considered. These include the type of plastic being used, the size and complexity of the mould, and the desired quality of the final product. For example, larger and more complex moulds may require a longer cooling time to ensure the plastic has set properly. On the other hand, if the production speed is a priority, the mould may be opened earlier, even if it means sacrificing some quality.
During the mould-opening stage, it is also important to consider the design of the mould and the ejection process. The mould must be carefully designed to allow for easy removal of the product without damaging either the product or the mould. This may involve the use of ejector pins or other mechanisms to gently remove the product from the mould. Additionally, the ejection process must be carefully controlled to avoid any damage to the product or the mould.
Overall, the mould-opening stage of plastic injection moulding is a critical step that requires careful consideration and control to ensure the successful production of high-quality plastic parts.
Designing Injection-Molded Parts: A Comprehensive Guide
You may want to see also
Explore related products
The plastic component is ejected
Ejection is the final stage of the plastic injection moulding process. It involves removing the plastic component from the mould after it has cooled and hardened. This stage requires careful execution to avoid damaging the mould or the finished part.
During ejection, the mould is opened, and the plastic component is removed. The component may have shrunk slightly during the cooling process, resulting in a tighter fit within the mould. This shrinkage must be considered during the mould design stage to ensure successful ejection.
There are several ejection methods available, including stripper rings and plates, floating valve ejectors, and a combination of mechanical and pneumatic ejection. Stripper rings and plates eject the component by pushing or pulling it off the mould core, providing good support and minimising distortion or damage. Floating valve ejectors are used in vertically oriented moulds, employing gravity to aid in the ejection process.
To ensure a smooth ejection process, it is crucial to consider the ejection force required and the capabilities of the moulding machine. Mould designers must account for the ejection force requirement to avoid issues during production. Additionally, the moulding machine should be able to actuate the ejection system effectively.
The plastic component ejection stage is a critical step in the plastic injection moulding process. It requires careful planning and execution to ensure the successful removal of the finished part without causing any damage to the mould or the component.
Gerbils and Plastic Wheels: A Deadly Combination?
You may want to see also
Frequently asked questions
There are four stages in the plastic injection moulding cycle: clamping, injection, cooling, and ejection. Firstly, the mould is clamped shut. Then, plastic pellets are melted at high heat and injected into the mould under pressure. The plastic is then left to cool and solidify, before the mould is opened and the plastic component is ejected.
During the injection stage, the molten plastic is injected under pressure into a single or multi-cavity mould to produce the desired shape. The pressure during the injection stage can range from 35-140MPa, and the injection speed must be carefully controlled to achieve high-quality parts.
During the cooling stage, the plastic inside the mould begins to cool and harden, taking on the desired shape. The mould's temperature is carefully controlled using heated oil or cold water, or a combination of both in some cases. The cooling time depends on the wall thickness and material properties of the part.
During the ejection stage, the mould is opened and the newly formed plastic component is released using moving rods, plates, or an air blast. The upper mould typically lacks an ejection mechanism, so proper ejection techniques are crucial to ensure a smooth production process.
