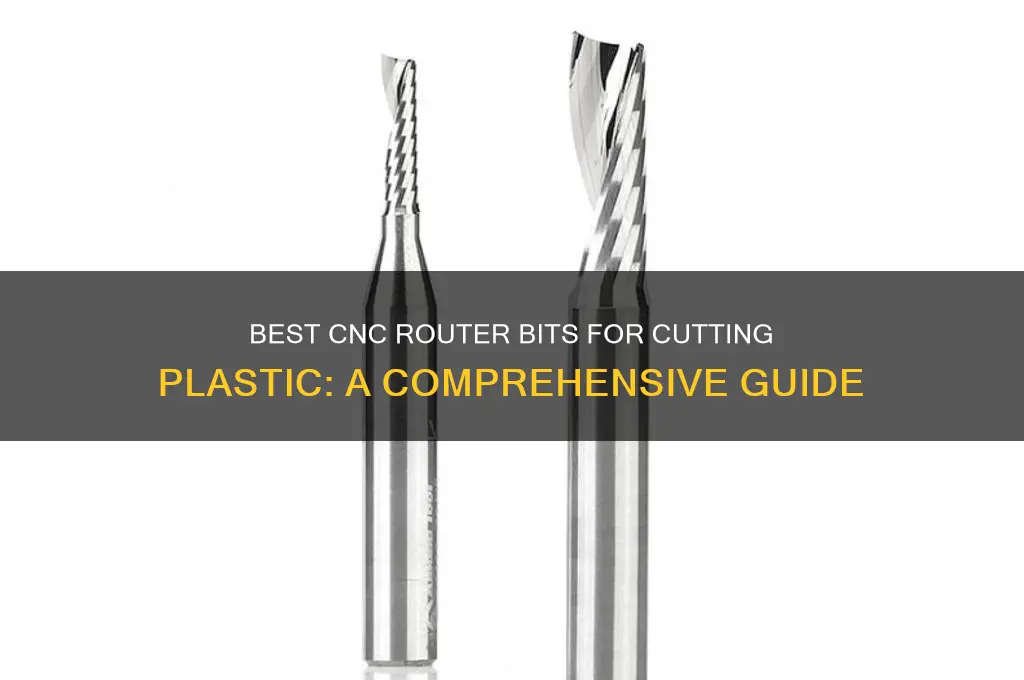

When using a CNC router to cut plastic, selecting the appropriate bit is crucial for achieving clean, precise, and efficient results. The choice of bit depends on the type of plastic being cut, the desired edge finish, and the specific operation (e.g., cutting, engraving, or pocketing). For most plastics, such as acrylic, ABS, or polycarbonate, a single-flute or two-flute end mill with a sharp cutting edge and a high helix angle is recommended, as it minimizes melting and chipping. Additionally, using a downcut bit can help push chips downward, reducing the risk of surface scratches. It’s also essential to consider the bit’s material—carbide-tipped bits are durable and perform well with plastics, while coated bits can further reduce friction and heat buildup. Always ensure the spindle speed and feed rate are optimized for the chosen bit and plastic material to maximize cutting performance and tool life.
| Characteristics | Values |
|---|---|
| Bit Type | Single Flute, Compression, V-Bit, End Mill, Ball Nose |
| Material | Carbide (recommended for longevity and heat resistance) |
| Flute Count | 1-2 flutes (single flute preferred for chip clearance in plastics) |
| Coating | TiN (Titanium Nitride), TiAlN (Titanium Aluminum Nitride) for reduced friction and heat |
| Cutting Edge Angle | 45° or 60° (sharp edges for clean cuts) |
| Shank Diameter | 1/4" or 1/8" (common sizes for CNC routers) |
| Cutting Speed | 100-300 inches/min (varies by plastic type and bit size) |
| Feed Rate | 50-150 inches/min (adjust based on material thickness and bit size) |
| Depth of Cut | Up to 1/2 the bit diameter per pass (avoid overheating) |
| Coolant Usage | Air cooling or mist coolant (optional, depends on plastic type) |
| Chip Load | 0.002"-0.005" per flute (optimize for clean edges) |
| Plastic Compatibility | Acrylic, ABS, Delrin, Polycarbonate, Nylon, HDPE, etc. |
| Bit Geometry | Upcut or downcut (upcut for chip evacuation, downcut for top surface finish) |
| Tool Life | 10-50 hours (depends on material and cutting conditions) |
| Surface Finish | Smooth to matte (varies by bit type and speed) |
| Special Considerations | Avoid melting by using sharp bits and proper speeds/feeds |
Explore related products
What You'll Learn
- Bit Material Selection: Choose carbide or HSS bits for durability and clean plastic cuts
- Flute Count Guide: Use 1-2 flutes for softer plastics, 3+ for harder materials
- Cutting Speed Tips: Lower RPMs prevent melting; adjust based on plastic type
- Feeds and Depths: Shallow passes and slow feed rates ensure precision and longevity
- Cooling Techniques: Apply air or coolant to reduce heat and extend bit life
Bit Material Selection: Choose carbide or HSS bits for durability and clean plastic cuts
Selecting the right bit material is crucial for achieving clean, precise cuts in plastic with a CNC router. Carbide and high-speed steel (HSS) bits are the two primary options, each with distinct advantages. Carbide bits, known for their hardness and heat resistance, excel in cutting harder plastics like acrylic or polycarbonate. They maintain sharpness longer, reducing the need for frequent replacements, especially in high-volume production. HSS bits, while softer, are more flexible and cost-effective, making them suitable for softer plastics like ABS or polyethylene. However, HSS bits wear faster under high heat and pressure, requiring more frequent sharpening or replacement.
When deciding between carbide and HSS, consider the plastic’s hardness and the project’s scale. For instance, a carbide bit is ideal for cutting 1/4-inch acrylic sheets at high speeds (15,000–20,000 RPM) due to its ability to withstand friction without dulling. Conversely, an HSS bit can handle 3mm ABS panels at moderate speeds (8,000–12,000 RPM) but may require sharpening after 10–15 cuts. Always match the bit’s flute count to the material: single-flute bits for softer plastics to minimize melting, and two- or three-flute bits for harder plastics to ensure chip evacuation.
Durability isn’t the only factor—edge quality matters too. Carbide bits produce cleaner edges with minimal burrs, essential for applications like signage or display cases. HSS bits, while slightly more prone to leaving burrs, can still deliver acceptable results with proper feed rates (e.g., 50–75 inches per minute for 1/8-inch polyethylene). Post-processing, such as light sanding or deburring, can refine HSS-cut edges to meet aesthetic standards.
Cost-effectiveness plays a role in material selection, particularly for hobbyists or small-scale projects. HSS bits are 30–50% cheaper than carbide, making them a budget-friendly choice for occasional use. However, for professional settings where consistency and longevity are critical, carbide’s higher upfront cost pays off in reduced downtime and superior performance. For example, a carbide bit cutting 100 acrylic panels daily may last 6–8 weeks, while an HSS bit under the same conditions would need replacement weekly.
In conclusion, the choice between carbide and HSS hinges on balancing material hardness, project demands, and budget. Carbide offers unmatched durability and edge quality for hard plastics and high-volume work, while HSS provides flexibility and affordability for softer materials or lighter use. Pairing the right bit material with optimized speeds, feeds, and flute design ensures efficient, clean cuts tailored to the plastic’s properties. Always test on scrap material to fine-tune settings before committing to the final piece.
Creative Uses for Plastic Cups: Why Cut the Bottom Off?
You may want to see also
Explore related products
Flute Count Guide: Use 1-2 flutes for softer plastics, 3+ for harder materials
Choosing the right flute count for your CNC router bit is critical when cutting plastic, as it directly impacts efficiency, finish quality, and tool life. Softer plastics like acrylic, polycarbonate, and ABS require 1-2 flute bits. These materials shear easily, and fewer flutes reduce friction and heat buildup, minimizing melting or chipping. Single-flute bits excel in thin plastics (under 1/4") where chip evacuation is paramount, while two-flute bits offer slightly more rigidity for thicker pieces without sacrificing cooling.
Hard plastics like Delrin, nylon, and G10 demand 3+ flute bits. These materials resist shearing and require the increased chip load capacity and rigidity of multi-flute designs. Three-flute bits strike a balance between chip evacuation and strength, making them versatile for most hard plastics. For extremely dense plastics or deep cuts, consider 4-flute bits for maximum stability and chip removal, though they may require slower feed rates to prevent overheating.
Bamboo vs. Plastic Cutting Boards: Which Material Reigns Supreme?
You may want to see also
Explore related products
Cutting Speed Tips: Lower RPMs prevent melting; adjust based on plastic type
Plastic's tendency to melt under friction makes cutting it on a CNC router a delicate balance. Higher RPMs generate heat, which can lead to warping, burrs, and a messy finish. Lowering spindle speed reduces friction, minimizing heat buildup and ensuring cleaner cuts. Think of it like slicing through butter: a slow, steady hand prevents smearing, while a rushed motion creates a mess.
For optimal results, start with a conservative RPM range of 10,000-15,000 for softer plastics like acrylic or HDPE. Harder plastics like Delrin or nylon may require slightly higher speeds, around 12,000-18,000 RPM. Always prioritize slower speeds and adjust upwards gradually, testing on scrap material to find the sweet spot where the plastic cuts cleanly without melting.
The type of plastic dictates the ideal RPM. Softer plastics, prone to melting, demand lower speeds. Harder plastics, more resistant to heat, can tolerate slightly higher RPMs. Imagine cutting through a ripe tomato versus a carrot – the tomato requires a gentler touch. Refer to manufacturer recommendations or online resources for specific plastic types, but remember, these are starting points. Experimentation is key to finding the perfect RPM for your material and desired finish.
Remember, lower RPMs don't mean slower cutting. Feed rate, the speed at which the bit moves through the material, can be adjusted to maintain efficient cutting while keeping heat generation under control. Start with a moderate feed rate and increase it gradually, observing the cut quality. A well-balanced combination of RPM and feed rate ensures clean, precise cuts without melting or chipping.
Don't be afraid to experiment and document your findings. Create a cutting log noting RPM, feed rate, plastic type, and cut quality. This log becomes a valuable reference for future projects, saving time and material by eliminating guesswork. With patience and careful adjustment, you'll master the art of cutting plastic on your CNC router, achieving professional results every time.
Mastering Corrugated Plastic: Cutting and Folding Techniques for Precision
You may want to see also
Explore related products
Feeds and Depths: Shallow passes and slow feed rates ensure precision and longevity
Plastic machining on a CNC router demands a delicate balance between speed and precision. Aggressive feeds and depths, while tempting for their efficiency, often lead to chipped edges, melting, and premature tool wear. The key to achieving clean, accurate cuts lies in embracing shallow passes and slow feed rates.
Think of it as a sculptor meticulously chipping away at marble – haste leads to cracks, while patience reveals the masterpiece.
Shallow passes, typically ranging from 0.5mm to 2mm per pass, minimize the stress on both the cutting tool and the plastic material. This reduces the likelihood of heat buildup, a common culprit behind warping and melting in plastics. For example, when cutting 6mm acrylic, a 1mm depth per pass with a single-flute spiral bit at 1200mm/min feed rate yields significantly cleaner results than a 3mm depth at 2400mm/min.
Slower feed rates, generally between 600mm/min and 1800mm/min depending on the plastic type and bit, allow the tool to engage the material more gently. This reduces friction, preventing the plastic from melting and adhering to the cutter, a phenomenon known as "chip welding."
The benefits of this approach extend beyond aesthetics. Shallow passes and slow feed rates significantly prolong tool life. Plastic, especially harder varieties like Delrin and Nylon, can be abrasive. By reducing the load on the cutting edge, you minimize wear and tear, saving on tool replacement costs.
Imagine the difference between dragging a knife through butter versus hacking at a block of ice – the latter dulls the blade quickly.
While this method may seem counterintuitive to maximizing productivity, the time saved in avoiding rework and tool changes often outweighs the initial slower cutting time. Remember, precision and longevity are paramount in CNC machining, and shallow passes with slow feed rates are the cornerstone of achieving both when working with plastic.
Scissors' Paper Power: Why Plastic Resists the Blade's Edge
You may want to see also
Explore related products
Cooling Techniques: Apply air or coolant to reduce heat and extend bit life
Heat buildup is the silent killer of CNC router bits, especially when cutting plastics. Friction from the cutting action melts and re-solidifies plastic onto the bit, accelerating wear and leading to poor edge quality. Cooling techniques aren't just about comfort for your machine – they're essential for maintaining precision, extending bit life, and preventing costly mistakes.
Air cooling is the simplest and most accessible method. A steady stream of compressed air directed at the cutting zone helps dissipate heat and blow away plastic chips. Aim the airflow slightly ahead of the bit to prevent chip buildup in the flutes. For best results, use an air pressure of 60-90 PSI, adjusting based on the plastic's hardness and your feed rate. Remember, air cooling is most effective for softer plastics like acrylic and HDPE.
For harder plastics or deeper cuts, consider coolant. Flood coolant systems deliver a continuous flow of liquid, typically a water-soluble oil mixture, directly to the cutting interface. This not only cools the bit but also lubricates the cut, reducing friction and chip welding. Mist coolant systems offer a lighter touch, spraying a fine mist of coolant onto the workpiece. This is ideal for situations where excessive liquid could be problematic, such as when working with porous plastics. Choose a coolant specifically formulated for plastic machining to avoid residue or discoloration.
Regularly monitor coolant levels and concentration, and clean your system periodically to prevent clogging. Remember, coolant disposal must comply with local regulations.
The choice between air and coolant depends on your specific application. Air cooling is cost-effective and easy to implement, while coolant provides superior cooling and lubrication for demanding cuts. Experiment with different techniques and monitor your bit's performance to find the optimal solution for your plastic cutting needs. By prioritizing cooling, you'll achieve cleaner cuts, longer bit life, and ultimately, more efficient CNC routing.
Effective Techniques for Cutting ABS Plastic: A Comprehensive Guide
You may want to see also
Frequently asked questions
A single-flute or compression spiral bit is ideal for cutting plastic on a CNC router, as it minimizes melting and provides clean edges.
Use a higher spindle speed, typically between 12,000 to 18,000 RPM, to achieve clean cuts and reduce the risk of melting the plastic.
Yes, but a standard end mill may cause melting or chipping. Specialized plastic-cutting bits are recommended for better results.
Use a sharp, single-flute bit, increase spindle speed, and reduce feed rate to minimize friction and heat buildup.
A feed rate of 60-120 inches per minute (IPM) is generally suitable, but adjust based on the material thickness and bit size for optimal results.
