Omar Khalid

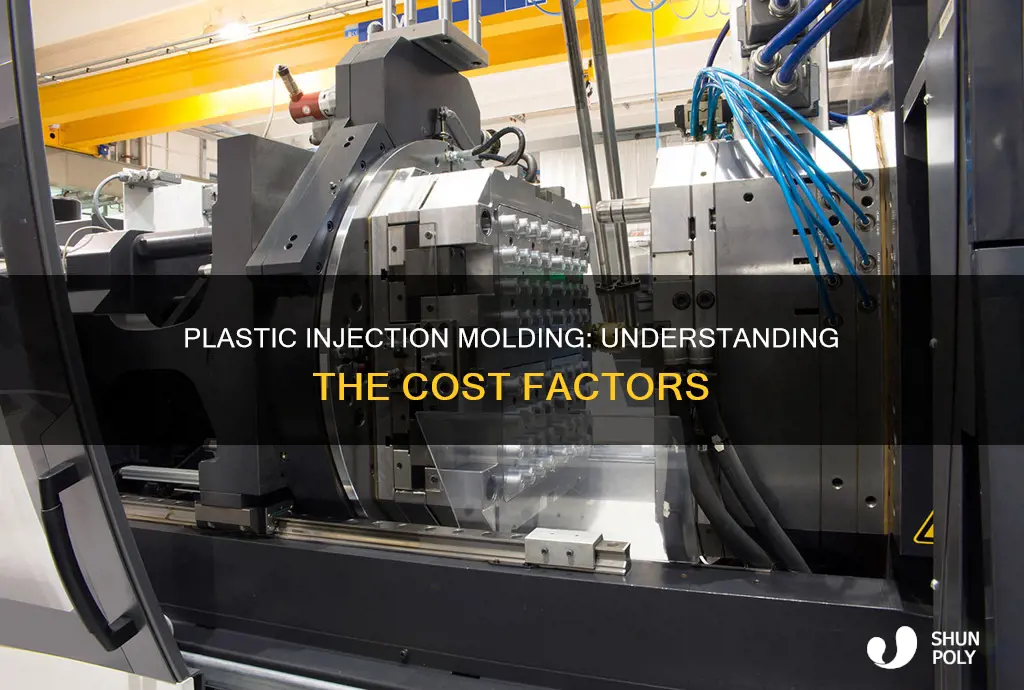

Plastic injection molding costs can vary significantly depending on various factors, including the size, complexity, and material of the mold, as well as the production volume. The cost can range from as little as $100 for simple, low-volume 3D-printed molds to over $100,000 for large, complex, high-production molds. The type of mold material, such as steel or aluminum, also impacts the cost, with steel being more expensive upfront but more durable and cost-effective in the long run. Additionally, the price per unit decreases as the production volume increases, making injection molding a cost-efficient method for large-scale manufacturing. Other cost considerations include the number of cavities in the mold, the type of plastic resin used, and the equipment required for the process. Understanding these factors is crucial in estimating the overall cost of plastic injection molding for a specific project.
| Characteristics | Values |
|---|---|
| Price range | $100 to $100,000+ |
| Simple single-cavity mold cost | $1,000 to $5,000 |
| Average cost at Rex Plastics | $12,000 |
| Desktop injection molding machine cost | $10,000 |
| Large industrial molding machine cost | $50,000 to $100,000+ |
| Material cost | $2 to $20 per pound for plastic resins; $1 to $5 per kg for thermoplastic pellets |
| Multi-cavity mold cost | $25,000 to $50,000+ |
| Mold material | Steel, aluminum, fiberglass-filled material, hardened tool steel, various metals and plastics, foam, glass, wood |
| Mold type | Prototype, production, high-strength steel, multi-cavity, family |
| Part size | Smaller parts are cheaper |
| Part complexity | Simpler designs are cheaper |
| Part quantity | Higher quantities lower the per-unit cost |
Explore related products
What You'll Learn
Cost range: $100 to $100,000+ depending on scope
The cost of plastic injection moulding can vary significantly, ranging from $100 to $100,000 or more, depending on the scope and complexity of the project. Several factors influence the cost, including the size, design, and volume of production.
For instance, simple low-volume 3D-printed moulds can be very affordable, with prices as low as $100. In contrast, large, complex moulds for high-volume production can reach or exceed $100,000. The number of units produced also impacts the cost per unit, as higher production numbers lead to a lower final per-piece cost.
The type of mould is another factor that affects pricing. Simple single-cavity moulds typically cost between $1,000 and $5,000, while large or complex moulds can exceed $25,000. Multi-cavity moulds, which can produce multiple parts simultaneously, have higher initial costs but result in lower part costs. Family injection moulds, which have multiple cavities for different part shapes, are more expensive but make the overall production process faster and more cost-effective.
The choice of mould material also influences the cost. Steel moulds are more expensive upfront but are more durable and can be easily modified or repaired, ultimately lowering the per-piece price. On the other hand, aluminium moulds are cheaper initially but less durable and cannot be repaired or modified. Additionally, the cost of purchasing materials for moulds varies depending on the chosen material, with thermoplastic resins ranging from $2 to $20 per pound and thermoplastic pellets costing approximately $1 to $5 per kilogram.
Other factors that can impact the overall cost of plastic injection moulding include the production process, equipment costs, and the number of cavities in the mould. Considering all these variables is essential to determine the final cost of a plastic injection moulding project.
Sugar-Rimmed Plastic Cups: The Perfect Sweet Treat
You may want to see also
Explore related products
Material selection: fiberglass-filled plastic wears down moulds
Plastic injection molding is one of the most cost-efficient manufacturing methods, with the price per unit decreasing as the number of units produced increases. The cost of a project depends on the scope and intricacy of the project, with factors such as part size, complexity, material, and anticipated quantities influencing the price. For instance, a simple, single-cavity plastic injection mold can cost between $1,000 and $5,000, while a large or complex mold can exceed $80,000. On average, a typical mold for a small, simple part can cost around $12,000.
When it comes to material selection, fiberglass-filled plastic can wear down most common molds. To withstand injection molding with fiberglass-filled material, a mold must be made from hardened tool steel. This is an important consideration, as the choice of material can impact the overall cost of the project.
At Rex Plastics, hardened tool steel is primarily used for their CNC mold-making process. However, various other materials can be used for CNC machines, including different metals, plastics, foam, glass, and even wood. While less common materials may require specialized equipment, such as hot wire or plasma cutters, CNC machines offer a high degree of precision and detail.
In addition to the mold material, the tooling process can also affect the cost. Tooling, or the creation of the mold, is often the most expensive part of injection molding. The complexity of the shape, the required tolerances, and the desired surface finish all contribute to the cost.
By considering the scope and complexity of the project, selecting appropriate materials, and understanding the tooling process, one can better estimate the overall cost of plastic injection molding.
Plastic Items: Visual Identification Tricks
You may want to see also
Explore related products
Size: bigger parts require larger, more expensive moulds
The cost of plastic injection moulding varies based on several factors, including the size and complexity of the project, the type of machinery and moulds required, and the raw materials used. When it comes to size, it's important to understand that bigger parts require larger moulds, which can significantly impact the overall cost of the project.
The size of the part is a critical factor in determining the cost of plastic injection moulding. As the part size increases, the cost of production also increases. This is because larger parts require larger moulds, which can be more expensive to manufacture and may require specialised equipment. Additionally, the complexity of the design, engineering, and calibration necessary to construct, install, and process larger moulds can drive up costs.
The cost of larger moulds can range from \$60,000 to \$80,000 or more, depending on the specific requirements. This initial investment is typically a non-recurring expense, but it is a significant factor to consider when planning a project. It's worth noting that the cost per unit can be reduced by creating more cavities or parts per cycle, making the overall production more cost-effective.
To accommodate larger parts, more expensive and specialised machinery may be required. Most standard injection moulding machines have limitations in terms of maximum part size, typically around 4' x 4'. For projects that require larger parts, custom machinery or heavy-gauge plastic thermoforming processes may be necessary, resulting in higher upfront costs.
It's important to consider the size of the part and the corresponding mould required when planning a plastic injection moulding project. By working with experienced mould designers and builders, it is possible to optimise the design for cost-effectiveness while ensuring the desired functionality and complexity of the final product.
Authenticating Pearls: Plastic or Real?
You may want to see also
Explore related products
Complexity: intricate designs require multi-step processes
The cost of plastic injection moulding depends on several factors, including the complexity of the design. The more intricate the design, the higher the cost is likely to be. This is because complex designs often require multi-step processes and specialised equipment, increasing the overall cost of production.
Complex designs may require a multi-step moulding process, such as overmoulding, where an initial part is created and then placed inside another mould for a second injection moulding process. This type of process requires more time, labour, and materials, all of which contribute to higher costs.
Additionally, intricate designs often necessitate the use of specialised equipment, such as hot wire or plasma cutters, which can drive up expenses. The mould material used can also impact the cost, with hardened tool steel being a common choice for its durability but requiring a significant investment.
The complexity of the mould design itself can also influence the cost. Moulds with complex geometries or intricate details tend to be more expensive to fabricate. This is because they require more time, technical expertise, and research and development to create. The number of cavities in a mould also affects the price, as a higher number of cavities increases the complexity and precision required in the mould development process.
Furthermore, the complexity of the product's assembly can impact the overall cost. A more complex product will take longer to assemble, potentially resulting in higher labour costs. The volume and weight of the packaged products, as well as transportation methods, will also influence transportation costs, with more substantial and intricate items incurring higher expenses.
Reviving Car Plastic Trim: Easy DIY Tricks and Tips
You may want to see also
Explore related products
Volume: higher production numbers lower the per-piece cost
Plastic injection molding costs can range from $100 for a 3D-printed low-volume injection mold to $100,000+ for a complex multi-cavity steel mold for high-volume production. The cost of a mold depends on its size, complexity, material, and anticipated quantity. For instance, a simple single-cavity plastic injection mold usually costs between $1,000 and $5,000, while a 12-cavity hardened "family" mold can cost tens of thousands of dollars.
The cost of a mold is typically the most significant expense in injection molding, and this cost can be amortized over more parts, making the price per unit cheaper with higher production numbers. For example, if a mold costs $1 per part for 100 parts, the cost per part decreases to $0.5 for 5,000 parts and $0.25 for 100,000 parts. Labor costs also decrease with larger production volumes, resulting in significantly lower per-piece expenses.
The type of mold used also affects the cost per part. Single-cavity molds produce one part per cycle time, resulting in slower production rates and higher part costs. On the other hand, multi-cavity molds can produce multiple parts simultaneously, leading to significantly lower part costs despite higher initial mold costs. Family injection molds, a type of multi-cavity mold, can create different shapes of parts simultaneously, making them a cost-effective solution for manufacturing various parts.
To further reduce costs, manufacturers can use self-mating parts, which only require a single half mold to create the entire part, halving the plastic injection mold size and cost. Additionally, 3D-printed molds are a more affordable option for low-volume production, while machined aluminum molds are the most efficient for mid-volume production as they are cheaper than traditional steel molds but durable enough to last a few thousand shots.
Overall, while the final cost of production increases with higher production volumes, the per-piece cost decreases due to the distribution of mold and labor costs across a larger number of parts. This makes injection molding an ideal process for mass-producing plastic parts affordably.
Hemp Plastic: Water Degradation and Eco-Friendly Solutions
You may want to see also
Frequently asked questions
The cost of plastic injection molding is influenced by the size and complexity of the mold, the type of mold, the number of injection cavities, the material used, and the production volume.
Larger molds require more material and incur greater costs. It is advisable to reduce the size of the part if the same function can be achieved.
Complex designs may require a multi-step molding process, increasing the cost. It is recommended to eliminate unnecessary features to reduce costs.
Simple molds typically range from $3,000 to $6,000, while large, complex, high-production, or multi-cavity molds can cost $25,000 to $50,000 or more.
Higher production numbers lower the final per-piece cost as the total cost can be spread across a larger number of parts. Low-volume production, ranging from a hundred to a few thousand parts, is typically more expensive per piece.
