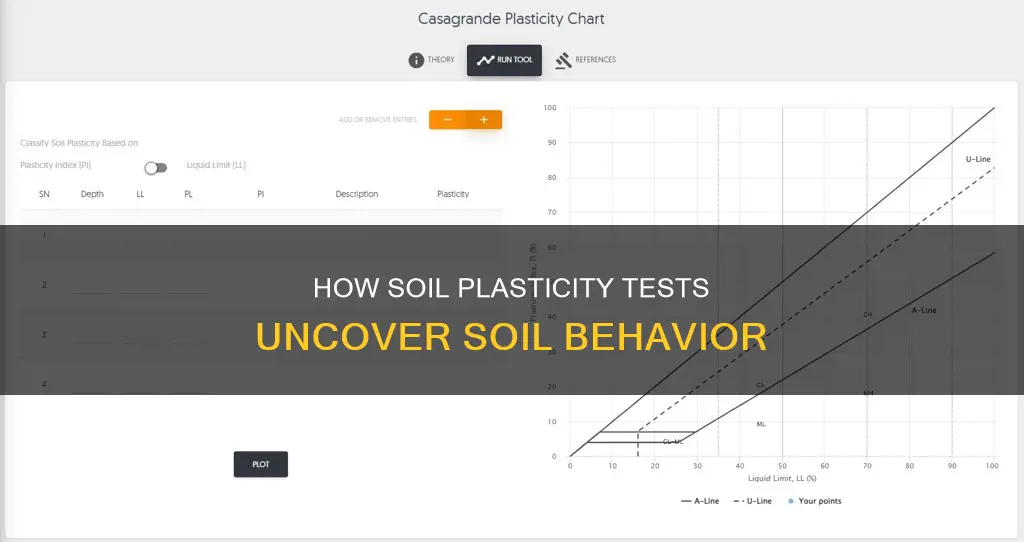

Soil plasticity tests, such as the Atterberg limits test, are used to determine the water content at which soil transitions between different states, namely from solid to plastic (PL) and from plastic to liquid (LL). These tests are particularly relevant for clayey or silty soils, which expand and shrink with varying moisture content. The plasticity index (PI) test, developed by Dr. Arthur Casagrande, is a cornerstone of geotechnical engineering and construction, providing insights into soil behaviour and properties. It involves subjecting a soil sample to axial and lateral pressures and measuring deformation, aiding professionals in selecting suitable soils for specific applications and designing structures that are safe and durable.
| Characteristics | Values |
|---|---|
| Purpose | To classify soil based on its plasticity and distinguish between different soil types such as clay, silt, or a combination of both. |
| Importance | Provides insights into the soil's mechanical properties, enabling professionals to design structures that are both safe and durable. It also assists in identifying the soil's erosion resistance, permeability, and other characteristics vital for sustainable land use and management. |
| Applications | Foundation design of structures, predicting the behavior of soil infills, embankments, and pavements, assessing shear strength, estimating permeability, forecasting settlement, and identifying potentially expansive soils. |
| Test methods | ASTM D4318, BS 1377: Part 2, Casagrande test, fall cone test. |
| Test procedure | Subjecting a cylindrical soil sample to axial and lateral pressures and measuring its deformation and failure. |
| Plastic Limit (PL) | The water content at which soil transitions from a solid to a plastic state. It is determined by rolling out a thread of the fine portion of soil on a flat, non-porous surface and observing if the thread retains its shape or breaks apart. |
| Liquid Limit (LL) | The water content at which soil transforms from a plastic to a liquid state. It is determined through tests like the Casagrande test or the fall cone test, where the behaviour of the soil under various water content levels is observed. |
| Shrinkage Limit (SL) | The water content at which further loss of moisture will not result in a reduction in volume. This test is less commonly used than the liquid and plastic limits. |
Explore related products
What You'll Learn
Plasticity Index (PI) Testing
The Plasticity Index Test classifies soil based on its plasticity and aids in distinguishing between different soil types, such as clay, silt, or a combination of both. It helps in understanding their distinct characteristics and behaviours. The plasticity index is the size of the range of water contents where the soil exhibits plastic properties. The PI is the difference between the liquid and plastic limits (PI = LL-PL). Soils with a high PI tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay.
The Plasticity Index is calculated by subtracting the Liquid Limit (LL) from the Plastic Limit (PL) of soil. The Liquid Limit is the water content at which soil transforms from a plastic to a liquid state. It is determined through tests like the Casagrande test or the fall cone test, where the soil's behaviour under various water content levels is observed. The transition from plastic to liquid behaviour is gradual over a range of water contents, and the shear strength of the soil is not zero at the liquid limit. The Plastic Limit is the water content at which soil transitions from a solid to a plastic state. It is established by rolling out a soil sample into threads; the content at which the threads crumble is considered the Plastic Limit.
The Plasticity Index Test is typically performed in accordance with standardised test methods, such as ASTM D4318 or BS 1377: Part 2. It is often accompanied by other tests, including the shrinkage limit test, to provide a comprehensive overview of soil properties. The combination of these tests offers a holistic understanding of the soil's physical and mechanical properties. These tests are mainly used on clayey or silty soils since these soils expand and shrink when the moisture content varies.
Guided Products: Plastic-Free Shipping Promise?
You may want to see also
Explore related products
Liquid Limit (LL)
The Liquid Limit (LL) is the water content at which soil changes from a plastic to a liquid state. It is determined through tests like the Casagrande test or the fall cone test, where the behaviour of the soil under various water content levels is observed. The Casagrande test is widely used across North America, while the fall cone test is more prevalent in Europe and elsewhere as it is less dependent on the operator in determining the liquid limit and is easier to perform in a laboratory setting. The liquid limit is one of the three Atterberg limits, the other two being the shrinkage limit and the plastic limit.
The Atterberg limits are a basic measure of the critical water content of a fine-grained soil. Depending on its water content, soil may appear in one of four states: solid, semi-solid, plastic, and liquid. In each state, the consistency and behaviour of the soil are different, and consequently, so are its engineering properties. Thus, the boundary between each state can be defined based on a change in the soil's behaviour. The Atterberg limits can be used to distinguish between silt and clay and to distinguish between different types of silts and clays. The water content at which soil changes from one state to another is known as consistency limits or Atterberg's limit.
The precise definition of the liquid limit is based on standard test procedures. Atterberg's original liquid limit test involved mixing a pat of clay in a round-bottomed porcelain bowl of 10-12 cm diameter. A groove was cut through the pat of clay with a spatula, and the bowl was then struck many times against the palm of one hand. Casagrande later standardised the apparatus and procedures to make the measurement more repeatable. Soil is placed into the metal cup (Casagrande cup) portion of the device and a groove is made down at its centre with a standardised tool of 2 millimetres (0.079 in) width.
The plasticity index (PI) is the size of the range of water contents where the soil exhibits plastic properties. The PI is the difference between the liquid and plastic limits (PI = LL-PL). Soils with a high PI tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay. The liquidity index (LI) is used to scale the natural water content of a soil sample to the limit. It can be calculated as a ratio of the difference between the natural water content, plastic limit, and liquid limit: LI = (W-PL)/(LL-PL), where W is the natural water content. The consistency index (Ic) indicates a soil's consistency (firmness). It is calculated as CI = (LL-W)/(LL-PL), where W is the existing water content. The soil at the liquid limit will have a consistency index of 0, the soil at the plastic limit will have a consistency index of 1, and if W > LL, Ic is negative.
Plastic vs Metal: Battle of the Lightweight Frame
You may want to see also
Explore related products
Plastic Limit (PL)
The standard method for determining the Plastic Limit is the thread rolling test, defined in ASTM Standard D 4318. This test involves rolling out a thread of the fine portion of soil on a flat, non-porous surface. If the soil is at a moisture content where it behaves plastically, the thread will retain its shape down to a very narrow diameter. As the moisture content decreases due to evaporation, the thread will start to break apart at larger diameters. The Plastic Limit is then defined as the moisture content at which the thread breaks apart at a diameter of 3.2 mm (approximately 1/8 inch). If a thread cannot be rolled out to 3.2 mm at any moisture content, the soil is considered non-plastic.
The thread rolling test has been criticised due to the significant subjective judgement required by the operator, which can affect the results. As a result, alternative methods such as the thread bending test have been proposed. This method involves bending soil threads of a specified diameter and length until they crack, allowing for the determination of both the bending produced and the associated moisture content. The bending test is particularly useful for very low plasticity soils, which are difficult to test using the standard thread rolling method.
The Plastic Limit is an important parameter in soil mechanics, helping to determine the plasticity, workability, and strength of soil. It is often used in conjunction with other tests, such as the Liquid Limit (LL) test, to provide a comprehensive understanding of soil properties. These tests are commonly employed by engineers, architects, and construction professionals to assess soil suitability for various projects.
Concealing Plastic Mirror Holders: Creative Cover-Up Ideas
You may want to see also
Explore related products
![[Upgraded] Soil Moisture Meter, 4-in-1 Soil pH Tester, Moisture/Light/Nutrients/pH Meter for Gardening, Lawn, Farming, Indoor & Outdoor Plants Use, No Batteries Required, Gifts for Plants Lover](https://m.media-amazon.com/images/I/61cKBVKSRCL._AC_UL320_.jpg)
Soil suitability and structural design
Soil testing is essential before construction as it provides crucial information about the soil's properties and behaviour. It helps assess soil stability, compaction characteristics, bearing capacity, and potential risks like settlement or slope instability. Soil plasticity tests are an important component of soil testing, playing a crucial role in determining the plasticity, workability, and strength of the soil.
The Plasticity Index (PI) is a numerical value that indicates the water content range where the soil remains plastic. This is important because it gives us insights into soil behaviour, particularly in engineering construction. For example, a high PI indicates that the soil will undergo significant volume changes with moisture variations, which can lead to foundation movement and structural damage. Conversely, soils with a low PI are typically more stable and less susceptible to changes with moisture.
Engineers use these insights from plasticity tests to make informed decisions about site suitability, foundation design, and the need for soil improvement techniques. For instance, high plasticity soils like clay require careful consideration of foundation depth and type, and the implementation of soil stabilization techniques to manage the soil's substantial expansion and contraction properties. Such soils can cause substantial structural damage if not properly managed.
Additionally, plasticity tests are often accompanied by other tests to provide a comprehensive overview of soil properties. For example, the Atterberg limits test, which includes the liquid limit, plastic limit, and shrinkage limit, provides valuable information about the soil's behaviour, including its ability to retain water and undergo deformation. Other common tests include Proctor's compaction test, which evaluates the compaction characteristics of soil, and the permeability test, which quantifies how well water can permeate the soil, playing a crucial role in the stability of hydraulic structures.
Overall, soil plasticity tests are an indispensable tool in geotechnical engineering, providing valuable insights that enable engineers to make informed decisions about soil suitability and structural design, ensuring the safety, stability, and sustainability of construction projects.
Efficiently Installing 20 Mil Plastic Windows: A Step-by-Step Guide
You may want to see also
Explore related products
Atterberg limits
The Atterberg limits are a basic measure of the critical water content of fine-grained soils, such as silt and clay, as they transition from a solid to a liquid state. Depending on its water content, soil may appear in one of four states: solid, semi-solid, plastic, and liquid. In each state, the consistency and behaviour of the soil are different, and consequently, so are its engineering properties. Thus, the boundary between each state can be defined based on a change in the soil's behaviour. The Atterberg limits can be used to distinguish between silt and clay and to distinguish between different types of silts and clays.
The Atterberg limits are: the shrinkage limit, plastic limit, and liquid limit. The shrinkage limit (SL) is the water content where further loss of moisture will not result in any more volume reduction. It is not commonly used and so is less commonly discussed. The plastic limit (PL) is the minimum water content at which a soil is considered to behave in a 'plastic' manner, i.e. is capable of being moulded. It is determined by rolling out a thread of the fine portion of a soil on a flat, non-porous surface. The liquid limit (LL) is the maximum water content a silt or clay can have before becoming a liquid. It is conceptually defined as the water content at which the behaviour of a clayey soil changes from the plastic state to the liquid state. The liquid and plastic limits of a soil and its water content can be used to express its relative consistency or liquidity index.
The liquid limit, plastic limit, and plasticity index of soils are also used extensively, either individually or with other soil properties, to correlate with engineering behaviour such as compressibility, hydraulic conductivity (permeability), shrink-swell, and shear strength. This method is sometimes used to evaluate the weathering characteristics of clay-shale materials. When subjected to repeated wetting and drying cycles, the liquid limits of these materials tend to increase. The amount of increase is considered to be a measure of the shale’s susceptibility to weathering. The plasticity index (PI) is a measure of the plasticity of soil. It is the size of the range of water contents where the soil exhibits plastic properties. The PI is the difference between the liquid and plastic limits. Soils with a high PI tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay.
Measuring Plastic Mil Thickness: A Simple Guide
You may want to see also
Frequently asked questions
A soil plasticity test is a test that determines the plasticity, workability, and strength of soil. It is an important test in the field of soil mechanics and is used to assess the suitability of soil for construction purposes.
The test works by measuring the deformation and failure of a cylindrical soil sample when subjected to axial and lateral pressures. The Plasticity Index (PI) is then calculated by subtracting the Liquid Limit (LL) from the Plastic Limit (PL). LL refers to the water content at which soil becomes liquid, and PL refers to the water content at which soil becomes plastic.
A soil plasticity test is important because it provides insights into the soil's mechanical properties, allowing engineers and construction professionals to design structures that are safe and durable. It also assists in environmental conservation by helping to identify the soil's erosion resistance and permeability.
