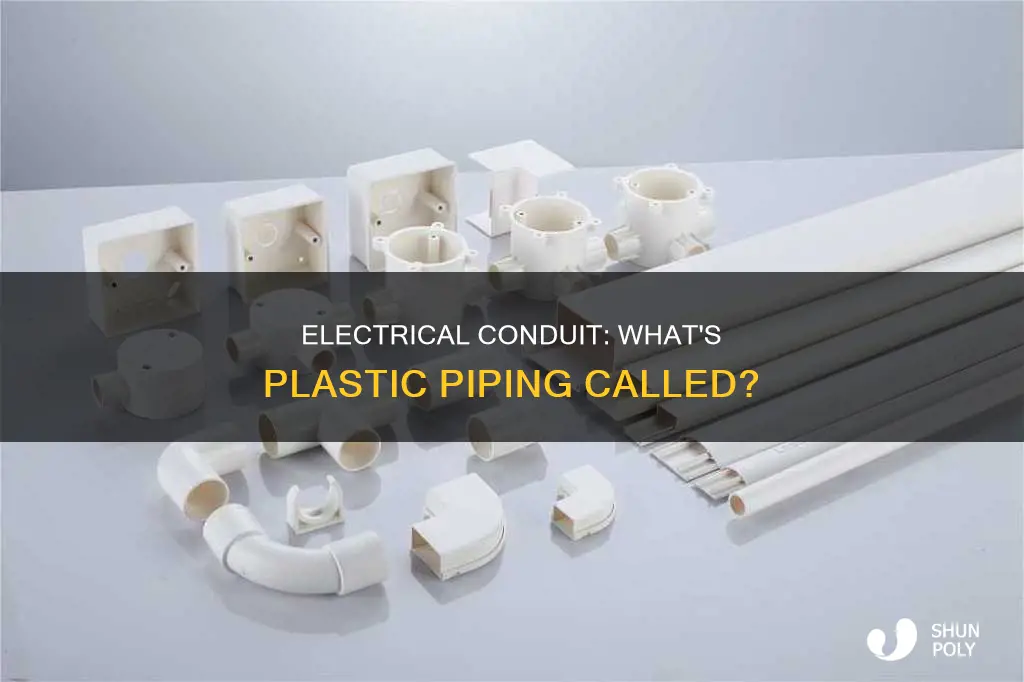

Plastic electrical conduit is a type of tubing made from materials such as PVC (Polyvinyl Chloride), Polypropylene (PP), or Polyethylene (PE). It is used to protect and route electrical wiring in buildings or other structures. Plastic conduit is lightweight, flexible, corrosion-resistant, and cost-effective, making it a popular choice for a wide range of electrical installations. It is also known as non-metallic tubing or electrical non-metallic tubing (ENT).
| Characteristics | Values |
|---|---|
| Material | Polyvinyl Chloride (PVC), Polypropylene (PP), Polyethylene (PE) |
| Manufacturing Process | Injection molding, Extrusion, Thermoforming |
| Advantages | Lightweight, corrosion-resistant, flexible, cost-effective, easy to use, good protection from impact, moisture, and chemical vapors |
| Disadvantages | Requires extra bonding (grounding) conductor, high recycling costs |
| Common Uses | Residential homes, industrial complexes, commercial buildings, outdoor projects |
Explore related products
What You'll Learn
- Plastic conduit is lightweight, flexible, and corrosion-resistant
- PVC is a commonly used plastic for electrical conduits
- LSZH conduit is a new type of plastic conduit
- Injection moulding and extrusion are methods for manufacturing plastic conduits
- Plastic conduit is used in residential, commercial, and industrial buildings
Plastic conduit is lightweight, flexible, and corrosion-resistant
Plastic conduit is a type of tubing made from durable plastic materials, such as PVC (Polyvinyl Chloride), Polypropylene (PP), or Polyethylene (PE). It is used to house and protect electrical wires, providing a barrier against physical damage, moisture, and chemical exposure.
One of the key advantages of plastic conduit is its lightweight nature. For example, PVC conduit is considered much lighter than steel conduit materials, making it easier to work with and reducing labour costs. Additionally, the lightweight property of other plastic conduits, such as fiberglass, simplifies utility installations, whether they are above or below ground.
Another benefit of plastic conduit is its flexibility. Some types of plastic conduit, such as ENT (Electrical Non-Metallic Tubing), are highly flexible and can be bent by hand, making them suitable for a variety of installations. This flexibility allows for bends and twists without the need for extra hardware, which simplifies the installation process.
Plastic conduit is also known for its corrosion resistance. For instance, PVC conduit resists moisture and many corrosive substances. Other types of plastic conduit, such as HDPE (High-Density Polyethylene) and RTRC (Reinforced Thermosetting Resin Conduit) or fiberglass conduit, offer excellent corrosion resistance as well. This makes plastic conduit ideal for use in environments where corrosion is a concern.
Overall, plastic conduit's lightweight, flexible, and corrosion-resistant properties make it a popular choice for electrical installations. It offers a cost-effective and versatile solution for protecting electrical wiring in a variety of applications, from residential homes to industrial complexes.
Basmati Rice: Plastic or Not?
You may want to see also
Explore related products
PVC is a commonly used plastic for electrical conduits
Electrical conduits are tubes used to protect and route electrical wiring in buildings and structures. They are usually made of metal or plastic. Plastic conduits are popular due to their versatility, cost-effectiveness, and ease of use.
PVC, or Polyvinyl Chloride, is a commonly used plastic for electrical conduits. It is a chemically resistant synthetic resin that has been used to protect power in houses, telecommunications, and utilities since 1932. PVC conduits are white, rigid tubes that protect wires from corrosion and electrical leakage. They are lightweight, flexible, and resistant to corrosion, moisture, and sunlight damage. This makes them ideal for both indoor and outdoor installations.
PVC conduits come in various sizes, thicknesses, and types, allowing them to be customized for specific projects. They are also suitable for underground use, direct burial, and exposed work. The plastic material resists moisture and many corrosive substances, but an extra bonding conductor must be pulled into each conduit since the tubing is non-conductive.
PVC conduits are manufactured using injection molding and extrusion processes. These techniques involve melting plastic pellets, typically made from thermoplastics like PVC, and shaping them into the desired form. Despite the advantages of PVC, it is important to note that it is not interchangeable with plumbing PVC pipes, as they differ in pressure testing, wall thickness, and colour.
Islands Battle Plastic Pollution: Strategies and Solutions
You may want to see also
Explore related products
LSZH conduit is a new type of plastic conduit
Plastic electrical conduit is a type of tubing made from durable plastic materials such as PVC (Polyvinyl Chloride), Polypropylene (PP), or Polyethylene (PE). It is used to house and protect electrical wires, providing a safeguard against physical damage, moisture, and chemical exposure. Plastic conduit is also lightweight, corrosion-resistant, and often more flexible than metal conduit, making it a popular choice for a wide range of electrical installations.
LSZH conduit, or Low Smoke Zero Halogen Conduit, is a new type of plastic conduit that offers several advantages over traditional PVC electrical conduits. Firstly, LSZH conduit produces a significantly lower amount of smoke during combustion due to its unique material and formula. This reduction in smoke density minimizes interference with the visual field in the event of a fire. Secondly, LSZH conduit is halogen-free, meaning it does not release hydrogen chloride when burning, reducing the risk of inhalation by occupants during a fire accident.
The raw materials and formula of LSZH conduit have been modified to enhance its physical and safety performance. For instance, LSZH conduit incorporates inorganic material fillers, such as aluminum trihydrate (ALTH), into a thermoplastic matrix. ALTH suppresses fire and forms char, reducing the emission of toxic gases, smoke, and carbon particles. Additionally, LSZH conduit exhibits improved resistance to compression and impact, making it more durable and beneficial for construction and installation.
LSZH conduit also boasts a higher temperature tolerance, with a normal working range of -40 to 110°C, compared to PVC conduit's range of -25 to 100°C. This expanded temperature range increases its versatility in various applications. Furthermore, LSZH conduit has better heat resistance, resulting in an optimized useful life when exposed to direct sunlight or used in outdoor projects. Its chemical properties are also highly stable, preventing the release of corrosive or acidic gases during storage or after installation.
While LSZH conduit offers superior safety and performance characteristics, it comes at a higher cost. The price of the special additives used in the manufacturing process can be two to three times more expensive than those used in PVC conduit. However, with increasing environmental concerns and stricter safety standards, LSZH conduit provides a much-needed upgrade to electrical conduit systems.
Get Rid of Water Spots on Plastic: Easy Solutions
You may want to see also
Explore related products
Injection moulding and extrusion are methods for manufacturing plastic conduits
Plastic electrical conduit is a type of tubing used to house and protect electrical wires. It is typically made from durable plastics such as PVC, polyethylene, polystyrene, or polypropylene. These materials offer advantages over metal conduits, such as lower weight, better corrosion resistance, and often greater flexibility. Plastic conduits are widely used in various environments, from residential to industrial settings, providing protection to electrical wiring from physical damage, moisture, and chemical exposure.
Injection moulding and extrusion are indeed methods for manufacturing plastic conduits. Injection moulding is a versatile process that can produce high-volume, complex plastic conduits with tight tolerances. It is suitable for creating parts with specific design features, such as ribbed surfaces or integrated fittings. This process involves preparing plastic pellets, typically made from thermoplastics like PVC, PP, or PE, which may be blended with additives for enhanced properties. These pellets are then fed into a hopper, heated, and subjected to mechanical shear, resulting in molten plastic. The molten plastic is injected into a mould, forming the desired shape of the conduit. Injection moulding is commonly used for electrical, plumbing, and industrial applications, and it can accommodate various sizes, shapes, and specifications.
Extrusion, on the other hand, is a continuous process used to produce long sections of plastic conduits with uniform cross-sectional profiles. Similar to injection moulding, extrusion also starts with plastic pellets that are fed into an extruder and melted. The molten plastic is then forced through a die, which shapes it into the desired cross-sectional profile. This process allows for the creation of long, continuous lengths of plastic conduit with consistent shapes. Extrusion is commonly employed for manufacturing standard-sized conduits used in electrical wiring, plumbing systems, and industrial applications where uniformity and cost-efficiency are important.
Both injection moulding and extrusion techniques offer distinct advantages for manufacturing plastic conduits. Injection moulding provides high precision and the ability to create complex geometries, while extrusion excels in producing long, uniform sections of conduits efficiently. These methods contribute to the versatility and widespread use of plastic conduits in various industries.
Additionally, another process worth mentioning is thermoforming, which is less commonly used for standard conduit production but is valuable for specialized applications. Thermoforming involves heating a plastic sheet until it becomes pliable and then forming it over a mould to create custom or intricate designs. This process is particularly suitable for producing conduits with unique geometrical features or specific design elements that may not be feasible with injection moulding or extrusion techniques.
Microplastics in Food: A Hidden Danger
You may want to see also
Explore related products
Plastic conduit is used in residential, commercial, and industrial buildings
Plastic conduit, often made from PVC (Polyvinyl Chloride), is a popular choice for electrical wiring in residential, commercial, and industrial buildings. It is a lightweight, cost-effective, and versatile alternative to metal conduit, offering ease of installation and flexibility in application.
In residential buildings, PVC conduit is used to protect and route electrical wiring, safeguarding it from physical damage, corrosion, moisture, and chemical exposure. This is especially important in areas with heavy equipment or high foot traffic, where wiring is vulnerable to damage. PVC conduit is also well-suited for outdoor projects, providing protection from the elements and ensuring worker safety.
Commercial buildings often require PVC conduit for exposed wiring, ensuring that electrical wiring for lighting fixtures and HVAC systems is safely enclosed. It is also commonly used in damp or wet locations, such as bathrooms, kitchens, and laundry rooms, to protect wiring from moisture. Additionally, PVC conduit's resistance to chemicals makes it ideal for corrosive environments, further enhancing its applicability in commercial spaces.
Industrial installations also benefit from PVC conduit, which is used to protect and route electrical wiring for machinery, motors, and other industrial equipment. Its lightweight nature and ease of installation make it a practical choice for industrial complexes, where its durability and chemical resistance are advantageous.
The use of plastic conduit in these various settings is subject to building code requirements, which can vary depending on the location and specific regulations. For example, the IBC requires PVC conduit to be used in certain situations in commercial buildings, while building codes in general may specify requirements for conduit diameter, material, installation methods, and fire resistance to ensure safety and compliance with electrical codes.
Installing Plastic Edge Trim: A Simple Guide
You may want to see also
Frequently asked questions
Plastic electrical conduit is a type of tubing made from materials such as PVC (Polyvinyl Chloride), used to house and protect electrical wires.
Plastic electrical conduit protects electrical wiring from physical damage, moisture, and chemical exposure, ensuring the safety and longevity of electrical circuits.
Plastic electrical conduit is lightweight, corrosion-resistant, and often more flexible than metal conduit. It is also cost-effective and easy to install.
There are several types of plastic electrical conduit, including PVC conduit, Low Smoke Zero Halogen (LSZH) conduit, and Electrical Non-Metallic Tubing (ENT).
Plastic electrical conduit is used in various environments, including residential homes, commercial buildings, and industrial complexes. It is suitable for both indoor and outdoor applications.
