The plastic limit of a material refers specifically to soil and its behaviour at different moisture contents. Depending on its water content, soil may appear in one of four states: solid, semi-solid, plastic and liquid. The boundary between each state can be defined based on a change in the soil's behaviour. The plastic limit is, therefore, the water content at which a soil changes from the plastic state to a semi-solid state. This limit is used to identify the soil's classification and allow for empirical correlations with other engineering properties such as compressibility, hydraulic conductivity (permeability), and strength.
| Characteristics | Values |
|---|---|
| Definition | The plastic limit (PL) is the water content at which soil changes from a plastic state to a semi-solid state. |
| Other Names | Lower plastic limit, Atterberg limit |
| Related Concepts | Liquid limit (LL), shrinkage limit (SL), plasticity index (PI), liquidity index (LI), consistency index (CI) |

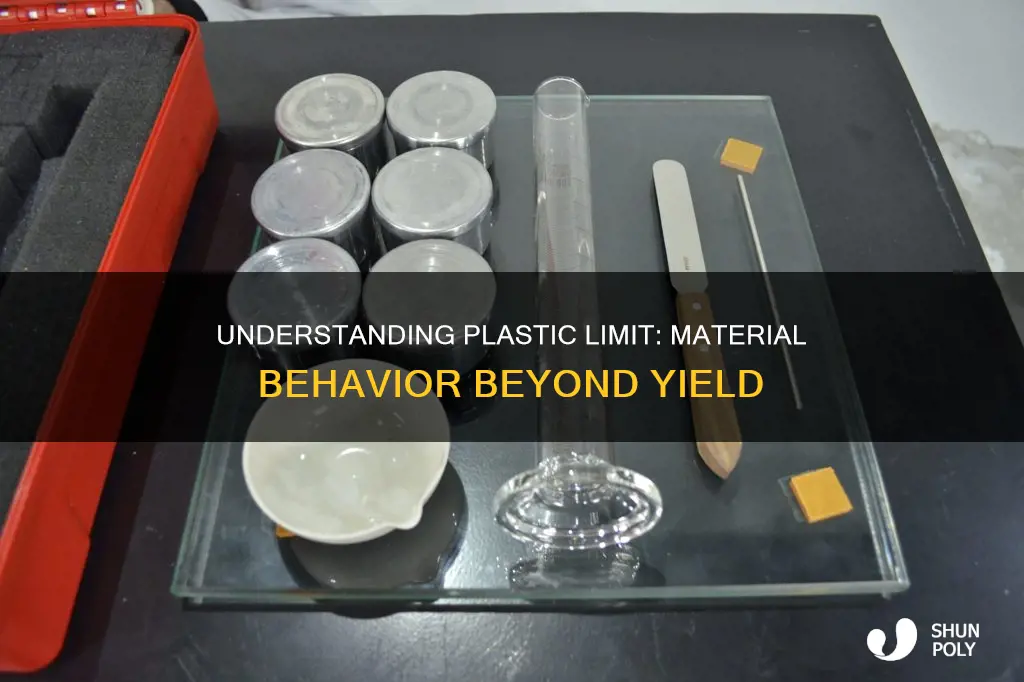

| Determination | The plastic limit test involves rolling out a thread of soil on a flat, non-porous surface and observing if it retains its shape at a diameter of 3.0-3.2mm. |
| Uses | Soil classification, engineering behavior correlations (e.g., compressibility, hydraulic conductivity, shrink-swell, shear strength) |
Explore related products
What You'll Learn
Plastic limit and soil classification
The plastic limit of a material refers to the water content at which a soil changes from the plastic state to a semi-solid state. It is an important factor in soil classification, particularly for fine-grained soils, and is one of the Atterberg limits, created by Albert Atterberg in 1911. Atterberg's limits are a basic measure of the critical water content of a fine-grained soil, and they include the shrinkage limit, plastic limit, and liquid limit. Depending on its water content, soil may appear in one of four states: solid, semi-solid, plastic, and liquid.
The consistency and behaviour of a clayey soil vary depending on its water content, and consequently, so do its engineering properties. Thus, the boundary between each state can be defined based on a change in the soil's behaviour. The Atterberg limits can be used to distinguish between silt and clay and between different types of silts and clays. The plastic limit is determined by rolling out a thread of the fine portion of a soil on a flat, non-porous surface. This procedure is defined in ASTM Standard D 4318. If the soil is at a moisture content where its behaviour is plastic, this thread will retain its shape down to a very narrow diameter. As the moisture content decreases due to evaporation, the thread will begin to break apart at larger diameters. The plastic limit is specifically defined as the moisture content at which the thread breaks apart at a diameter of 3.2 mm or 1/8 inch. If the thread crumbles at a diameter smaller than 3 mm, the soil is too wet. If it crumbles at a diameter larger than 3 mm, the soil is drier than the plastic limit.
The liquid limit, or upper plastic limit, refers to the water content at which the soil changes from a liquid state to a plastic state. It is the minimum moisture content at which a soil flows upon the application of a very small shear force. The transition from plastic to liquid behaviour occurs gradually over a range of water contents, and the shear strength of the soil is not zero at the liquid limit. The liquid limit is determined using the Casagrande cup method, in which soil paste is placed in the Casagrande cup, and a groove is made in the centre. The limit is defined as the moisture content required to close a distance of 0.5 inches along the bottom of the groove after 25 blows in a liquid limit device.
The plasticity index (PI) is an important value when classifying soil types. It is calculated as the plastic limit subtracted from the liquid limit and indicates the degree of plasticity of the soil. The shrinkage limit (SL) is the water content at which the soil changes from a semi-solid to a solid state, and it is much less commonly used than the liquid and plastic limits. At this moisture content, the volume of the soil mass ceases to change with further drying of the material.
Mel B's Plastic Surgery: What's True and What's Not?
You may want to see also
Explore related products
Plastic limit testing methods
The plastic limit of a material refers to the water content at which a soil changes from a plastic state to a semi-solid state. There are various testing methods to determine the plastic limit of a material. Here is a detailed description of some of them:
Plastic Limit Rolling Procedure 1 (Hand Rolling)
This method involves the repeated rolling of an ellipsoidal-sized soil mass by hand on a non-porous surface. Arthur Casagrande defined the plastic limit as the water content at which a thread of soil just crumbles when carefully rolled out to a diameter of 3mm (1/8"). If the thread crumbles at a diameter smaller than 3mm, the soil is too wet. Conversely, if it crumbles at a diameter larger than 3mm, the soil is drier than the plastic limit.
Plastic Limit Rolling Procedure 2 (Using a Rolling Device)
This procedure is similar to the first one, but instead of hand-rolling, a rolling device is used to roll out the soil thread to the specified diameter. This method provides a more standardised and consistent rolling process.
Casagrande Cup Method
In this method, the soil paste is placed in a Casagrande cup with a groove made in its centre. The limit is defined as the moisture content, in percent, required to close a distance of 0.5 inches along the bottom of the groove after 25 blows in a liquid limit device. This method can be challenging as it requires adjusting the moisture content to meet the specified groove closure. Therefore, multiple tests with varying moisture contents and numbers of blows are often conducted.
ASTM D4318 Standard Test Methods
ASTM has developed standard test methods (D4318-17E01) for determining the liquid limit, plastic limit, and plasticity index of soils. These methods are used in engineering classification systems to characterise fine-grained soils and construction materials. The liquid limit, plastic limit, and shrinkage limit are collectively referred to as Atterberg limits, which define the boundaries of consistency states of plastic soils. The plasticity index is calculated using the results from both liquid and plastic limit tests.
Breaking Free: Escaping Plastic Handcuffs with Smart Strategies
You may want to see also
Explore related products
Plastic limit and engineering applications
The plastic limit of a material refers to the moisture content at which a fine-grained soil can no longer be remoulded without cracking. It is an important parameter in the characterisation of soils and is used to determine the suitability of soils for specific engineering applications.
Soil deposits consist of soil particles and the void space between them. The water content of soil plays a crucial role in defining the boundary between each state of the soil, which can be solid, semi-solid, plastic, or liquid. The plastic limit is determined by the water content at which the soil changes from a plastic state to a semi-solid state.
The plastic limit is typically determined in a laboratory setting using the soil thread rolling method, also known as the Casagrande method. This involves rolling a clay sample into a 3 mm diameter cylindrical shape and observing the formation of cracks due to moisture loss. The water content at which cracks appear is defined as the plastic limit.
In engineering applications, the plastic limit is crucial for soil stabilisation and the selection of appropriate stabilisation techniques. For example, high-calcium lime stabilisation is applied to soils with high cohesive material content, while Portland cement is preferred for predominantly granular soils. Additionally, the plastic limit is used in geotechnical engineering calculations and soil classification systems, such as the Atterberg limits, which include the liquid limit, plastic limit, and shrinkage limit.
Furthermore, the plastic limit is considered in the design and analysis of structures. Nonlinear and inelastic analysis methods provide a more realistic assessment of limit states by accounting for deformation processes and associated inelastic effects, including plasticity. However, these methods require specialised education programs and expensive laboratory equipment, limiting their widespread application.
Unlocking Secrets: Picking Plastic Sleeves
You may want to see also
Explore related products
Plastic limit and soil stabilisation
The plastic limit of a material is the water content at which soil changes from a plastic state to a semi-solid state. The plastic limit is an important consideration in soil stabilisation, which refers to the process of modifying the physical properties of soil to improve its strength and durability.
Soil stabilisation is particularly important in the preliminary stages of designing any structure, as it ensures that the soil will have the correct amount of shear strength and will not change volume too much as it expands and shrinks with different moisture contents. The plastic limit is one of the Atterberg limits, which are a basic measure of the critical water contents of fine-grained soil. The other Atterberg limits include the shrinkage limit, liquid limit, and plasticity index.
The plastic limit test is performed by rolling out a thread of the fine portion of soil on a flat, non-porous surface. If the soil is at a moisture content where it behaves plastically, the thread will retain its shape down to a very narrow diameter. As the moisture content decreases due to evaporation, the thread will begin to break apart at larger diameters. The plastic limit is defined as the moisture content at which the thread breaks apart at a diameter of 3.2 mm or 1/8 inch.
Soil stabilisation techniques can vary depending on the type of soil being treated. For example, high-calcium lime stabilisation can be applied to soils with a high cohesive material content, while Portland cement is preferred for stabilising predominantly granular soils. By understanding the plastic limit of a particular soil type, engineers can select the most appropriate stabilisation technique to improve the soil's strength and durability.
In summary, the plastic limit is a critical parameter in soil stabilisation as it helps engineers understand the behaviour of soil at different moisture contents and select the most suitable stabilisation techniques to improve the soil's strength and durability. By modifying the physical properties of soil, soil stabilisation ensures that structures built on it remain stable and secure.
Plastic Surgery: Katy Perry's Breasts, Real or Fake?
You may want to see also
Explore related products
Plastic limit and non-plastic soils
The plastic limit of a material refers to the moisture content at which a fine-grained soil can no longer be remoulded without cracking. It is also known as the lower plastic limit. The plastic limit test is performed by rolling an ellipsoidal-sized soil mass by hand on a non-porous surface. If the soil crumbles at a diameter smaller than 3 mm, it is too wet. If it crumbles at a diameter larger than 3 mm, it is drier than the plastic limit.
Soil can exist in one of four states: solid, semi-solid, plastic, and liquid. The boundary between each state is defined by a change in the soil's behaviour. The Atterberg limits are a basic measure of the critical water content of a fine-grained soil and are used to distinguish between silt and clay. The plasticity index (PI) is a measure of the plasticity of soil and is calculated as the difference between the liquid and plastic limits. Soils with a high PI tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay. Sands, gravel, and peat do not possess plasticity and are reported as being non-plastic.
The liquid limit (LL) is the water content at which the soil changes from a plastic state to a liquid state. It is the minimum moisture content at which a soil flows upon the application of a very small shear force. The liquid limit test involves placing soil paste in a Casagrande cup and cutting a groove in the centre. The cup is then dropped repeatedly onto a hard rubber base, during which the groove closes up gradually. The moisture content at which it takes 25 drops to close the groove is defined as the liquid limit.
The shrinkage limit (SL) is the water content at which the soil changes from a semi-solid to a solid state. At this moisture content, the volume of the soil mass ceases to change with further drying of the material. The shrinkage limit is determined by placing a mass of wet soil in an oven and drying it. The volume of the dried soil is then determined by using mercury to fill the vacant spaces caused by shrinkage.
Covering Old Plastic Wall Tiles: Quick and Easy Solutions
You may want to see also
Frequently asked questions
The plastic limit of a material refers to the water content at which the behaviour of a clayey soil changes from a plastic state to a semi-solid or semisolid state.
The plastic limit test involves rolling out a thread of the fine portion of soil on a flat, non-porous surface. If the soil is at a moisture content where its behaviour is plastic, this thread will retain its shape down to a very narrow diameter.
The liquid limit refers to the water content at which the soil changes from a plastic state to a liquid state. The plastic limit, on the other hand, marks the transition from a semi-solid to a plastic state.
The plastic limit, along with the liquid limit, is used for soil identification, classification, and strength correlations. These limits are also used to correlate with engineering behaviours such as compressibility, hydraulic conductivity, and shear strength.
The plastic limit value for soil is when the thread of soil rolled out crumbles at a diameter of 3.0- 3.2mm. If the thread crumbles at a smaller diameter, the soil is too wet, and if it crumbles at a larger diameter, the soil is drier than the plastic limit.
