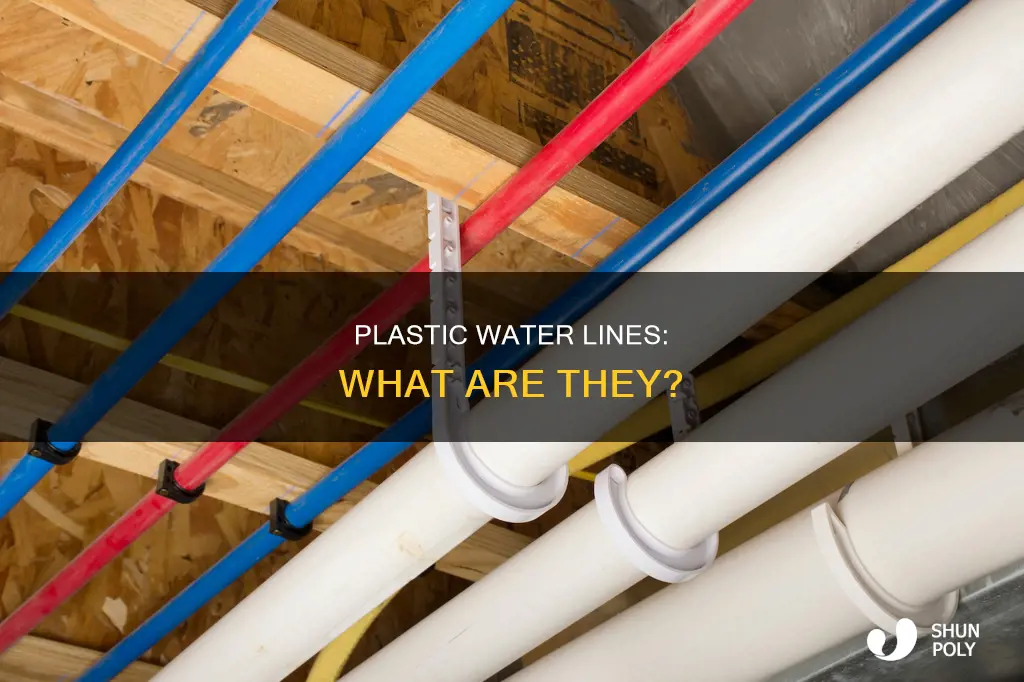

Plastic water pipes are classified by their material composition, with the most common types being Polyvinyl Chloride (PVC), Cross-Linked Polyethylene (PEX), and Linear Low-Density Polyethylene (LLDPE). These pipes are used for various applications, including household plumbing, industrial plumbing, and potable water systems. The choice of tubing material depends on factors such as chemical compatibility, temperature rating, and fluid pressure. PVC pipes, known for their durability and affordability, are widely used for main water lines but are not suitable for hot water applications due to their heat resistance limitations. On the other hand, PEX pipes offer flexibility and are used for both hot and cold water systems. LLDPE pipes are also suitable for hot and cold water applications and are commonly used for potable water.
| Characteristics | Values |
|---|---|
| Common Types | Polyvinyl chloride (PVC), Polyethylene (LLDPE), Acrylonitrile butadiene styrene (ABS), Cross-linked polyethylene (PEX), Polyurethane |
| Use Cases | Potable water, food and beverage, pneumatic compressed air, plumbing, drainage |
| Advantages | Affordable, durable, flexible, easy to work with, chemically stable, recyclable, FDA-approved, NSF-certified, corrosion-resistant, lightweight, soundproof |
| Disadvantages | Potential leaching of harmful chemicals, becomes brittle over time, lack of heat resistance, contains BPA |
Explore related products
![Silicone Tubing,1/2" ID x 5/8" OD Pure Silicon Tube High Temp Silicone Hose [for Home Brewing Wine Making, Beer Line, Aquaponics]-5 ft Length/Clear](https://m.media-amazon.com/images/I/41g5Rrxv0KL._AC_UY218_.jpg)
What You'll Learn
Polyvinyl Chloride (PVC)
Polyvinyl Chloride, commonly known as PVC, is a high-strength thermoplastic material. It is one of the most important thermoplastics in the world today and is used in a wide range of applications across various sectors. PVC is the third-most widely produced synthetic plastic polymer in the world.
PVC was first synthesized in 1872 by German chemist Eugen Baumann. However, it was not until 1926 that Waldo Semon and the B.F. Goodrich Company developed a method to plasticize PVC, making it more workable.
PVC is known for its strong resistance to chemicals, sunlight, and oxidation from water. It is commonly used for main water lines but is not suitable for hot water applications as it warps at temperatures above 140°F. PVC pipes are also used in drinking water applications, but these must be certified by NSF International to conform to EPA safety regulations.
PVC is available in two main forms: flexible and rigid. Flexible PVC is formed by adding plasticizers to PVC, which lower its crystallinity. Rigid PVC, on the other hand, is a stiff and cost-effective plastic with high resistance to impact, water, weather, chemicals, and corrosive environments. This type of PVC is also known as UPVC, PVC-U, or uPVC.
PVC has largely replaced traditional building materials such as wood, metal, concrete, and ceramics in the construction industry. It is used in products such as pipes, siding, windows, roofing, fencing, and decking. In the healthcare industry, PVC is used in medical devices, blood bags, and tubing. Additionally, PVC is used in wire and cable insulation, automotive parts, and packaging.
Toxic Plastic Smoke: What Are the Dangers?
You may want to see also
Explore related products
Cross-Linked Polyethylene (PEX)
Cross-linked polyethylene, commonly abbreviated as PEX, is a form of polyethylene with cross-links. It is a synthetic plastic variant made from polyethylene resin. The 'cross-linked' in its name refers to the connective cross-links between the individual macromolecules, forming a covalent network. Cross-linked polyethylene is used in a variety of applications, including building services pipework systems, hydronic radiant heating and cooling systems, and domestic water piping.
PEX is frequently used as an alternative to polyvinyl chloride (PVC) or copper tubing for residential water pipes. It offers advantages such as improved temperature resistance and enhanced mechanical properties. PEX tubing is made of cross-linked polyethylene, which provides extra strength, making it suitable for both hot and cold drinking water applications. The tubing typically comes in larger diameters, ranging from 1/2" to 1 1/2".
The cross-linking process in PEX manufacturing can be achieved during or after the extrusion of the tubing. This process involves reacting HDPE resins with an organic peroxide, initiating the cross-linking reaction to form the PEX polymer. According to ASTM standards, the peroxide linking process should result in polymeric interlinks greater than 60% but less than 90% of the total PE resin. A higher degree of cross-linking can lead to brittleness and stress cracking, while a lower degree may result in poorer physical properties.
The use of PEX tubing is prevalent in household plumbing. It is commonly used for the entire distribution system, from the service line to faucets in bathrooms and kitchens. PEX offers flexibility, protecting it from bumps and ensuring its durability. Additionally, PEX exhibits high thermal stability, resisting creep deformation and maintaining high strength and hardness at elevated temperatures.
Overall, Cross-Linked Polyethylene (PEX) is a versatile and durable material widely used in plumbing and piping systems, offering advantages such as strength, temperature resistance, and flexibility.
Should You Remove the IMEI Strip From Your Device?
You may want to see also
Explore related products
Linear Low-Density Polyethylene (LLDPE)
LLDPE is manufactured through the copolymerization of ethylene and an alpha-olefin co-monomer. The Unipol process, also known as the gas-phase process, is the most common method for polymerization. During this process, the catalyst (either Ziegler-Natta or metallocene) and ethylene are blown into a fluidized bed reactor, resulting in copolymerization. The polymer settles at the bottom and exits as a powder that is then pelletized, with additives included. This process is cost-effective as it operates at low pressures and temperatures.
LLDPE has a high shrinkage rate due to its semi-crystalline nature, occupying more volume in its melt state than in its solid state. It demonstrates unique melt flow properties (rheology) and is typically processed through blow moulding, film extrusion, or injection moulding, with film extrusion being the dominant method. LLDPE is less shear-sensitive than LDPE due to its narrower molecular weight distribution and shorter chain branching. It exhibits lower viscosity during melt extension, avoiding strain hardening like LDPE.
LLDPE is commonly used for plastic bags, sheets, plastic wrap, pouches, toys, pipes, buckets, containers, cable covering, geomembranes, and flexible tubing. It is particularly suitable for potable water, food and beverage, and pneumatic compressed air applications. LLDPE tubing offers excellent pressure and temperature ratings and resists environmental stress cracking. It is more robust than traditional low or medium-density polyethylene and is recommended for cold and intermittent hot water. LLDPE is non-reactive and safe for direct food contact, with no adverse effects on human health. However, inhalation of the raw material's dust during processing can irritate the respiratory system.
While LLDPE has various practical applications, it is not environmentally friendly, contributing significantly to environmental pollution due to its single-use nature and challenging recyclability. Nevertheless, it can be recycled into new items such as industrial bins, composite lumber, flooring, and plastic films.
How Plastic Pollution Enters Our Sewer Systems
You may want to see also
Explore related products
$27.99 $29.97
Acrylonitrile Butadiene Styrene (ABS)
ABS is derived from acrylonitrile, butadiene, and styrene. Acrylonitrile is a synthetic monomer produced from propylene and ammonia; butadiene is a petroleum hydrocarbon obtained from the C4 fraction of steam cracking; styrene monomer is made by dehydrogenation of ethylbenzene, a hydrocarbon obtained in the reaction of ethylene and benzene. The acrylonitrile in ABS provides chemical and thermal stability, the butadiene adds toughness and strength, and the styrene gives the finished polymer a glossy finish. ABS has a low melting point, which enables its use in injection moulding and 3D printing.
ABS is stable to decomposition under normal use and polymer processing conditions. However, if the temperature reaches 400 °C, ABS can decompose into its constituents: butadiene, acrylonitrile, and styrene, all of which are carcinogenic or reasonably anticipated to be carcinogenic to humans. Ultrafine particles (UFPs) may be produced at lower temperatures, such as in 3D printing, and have been linked to adverse health effects.
ABS is popular due to its low production cost and ease of machining. It is lightweight and has favourable mechanical properties such as impact resistance, toughness, rigidity, and heat resistance. It can be easily moulded, sanded, and shaped, and its glossy finish is compatible with a wide range of paints and glues. ABS takes colour easily, allowing for precise shades in finished products.
ABS is used in a wide range of applications, including computer keyboards, LEGO bricks, small kitchen appliances, automotive components, protective headgear, and musical instruments. It is also used in the construction industry for plastic tubing and corrugated plastic structures.
Margarine's Plastic-Like Properties: One Ingredient Away From Plastic?
You may want to see also
Explore related products
$45.99 $49.97
Chlorinated Polyvinyl Chloride (CPVC)
Chlorinated Polyvinyl Chloride, or CPVC, is a type of plastic water pipe used in plumbing. It is produced by chlorinating polyvinyl chloride (PVC) resin. CPVC is a thermoplastic with greater flexibility and heat resistance than PVC, making it suitable for hot and cold water applications. Its higher heat resistance, or glass transition temperature (Tg), is due to the presence of chlorine atoms, which protect the polymer's carbon backbone. The amount of chlorine introduced during production can vary, with commercial resins typically containing between 63% and 69% chlorine.
CPVC is commonly used in industrial and residential plumbing systems, particularly in hot water lines where standard PVC is not suitable due to its lower heat resistance. It is also used in industrial liquid handling applications. CPVC's flexibility and crush resistance make it a viable alternative to metal pipes in certain conditions. Additionally, it shares PVC's resistance to fire, making it difficult to ignite and self-extinguishing when removed from a direct flame.
One of the key advantages of CPVC over metal pipes is its corrosion resistance. It is inherently inert to acids, bases, and salts, which can corrode metal pipes over time. This property, along with its heat resistance, makes CPVC ideal for water-piping systems in residential and commercial construction. CPVC also has a low coefficient of friction, allowing water to flow more easily and reducing water pressure.
CPVC is a versatile compound that can be manufactured using standard molding techniques such as extrusion and injection molding. It is often used in pipe and fittings, ducting, sheet and lining applications. The corrosion and temperature resistance of CPVC make it a popular choice for fume handling systems in corrosive environments.
Transferring Images to Plastic: A Guide for Industrial Applications
You may want to see also
Frequently asked questions
Plastic water lines are commonly known as PVC pipes, short for polyvinyl chloride pipes.
PVC pipes are used for water transfer and are commonly used for main water lines. They are also used for supply lines, delivering water from cities or wells to faucets.
PVC pipes are affordable, durable, lightweight, and easy to work with. They can stay in good condition for up to 70 years without rusting or corroding. They are also recyclable, making them an environmentally-friendly option.
PVC pipes cannot be used for hot water applications as they warp at temperatures higher than 140°F. They can also become brittle over time when exposed to sunlight or high temperatures.
Yes, alternatives to PVC pipes include PEX (cross-linked polyethylene) pipes, CPVC (chlorinated PVC) pipes, and LLDPE (linear low-density polyethylene) pipes. These pipes have different characteristics and are suitable for various applications, including hot water lines.
