The Plastic Limit (PL) is the moisture content at which a fine-grained soil transitions from a plastic state to a semi-solid state and can no longer be remoulded without cracking. It is one of the Atterberg limits, which are a basic measure of the critical water content of a fine-grained soil, along with the shrinkage limit and liquid limit. These limits were first defined by Albert Atterberg, a Swedish chemist and agricultural/agronomic scientist, in 1911.
| Characteristics | Values |
|---|---|
| Definition | The Plastic Limit (PL) is the moisture content at which a fine-grained soil can no longer be remolded without cracking. |
| Plasticity Index (PI) | Calculated as the Plastic Limit subtracted from the Liquid Limit. |
| Plastic Limit Test | Requires repeated rolling of a soil sample into a thread until it reaches a point where it crumbles. |
| Plastic Limit Test Diameter | 3mm or 1/8th inch. |

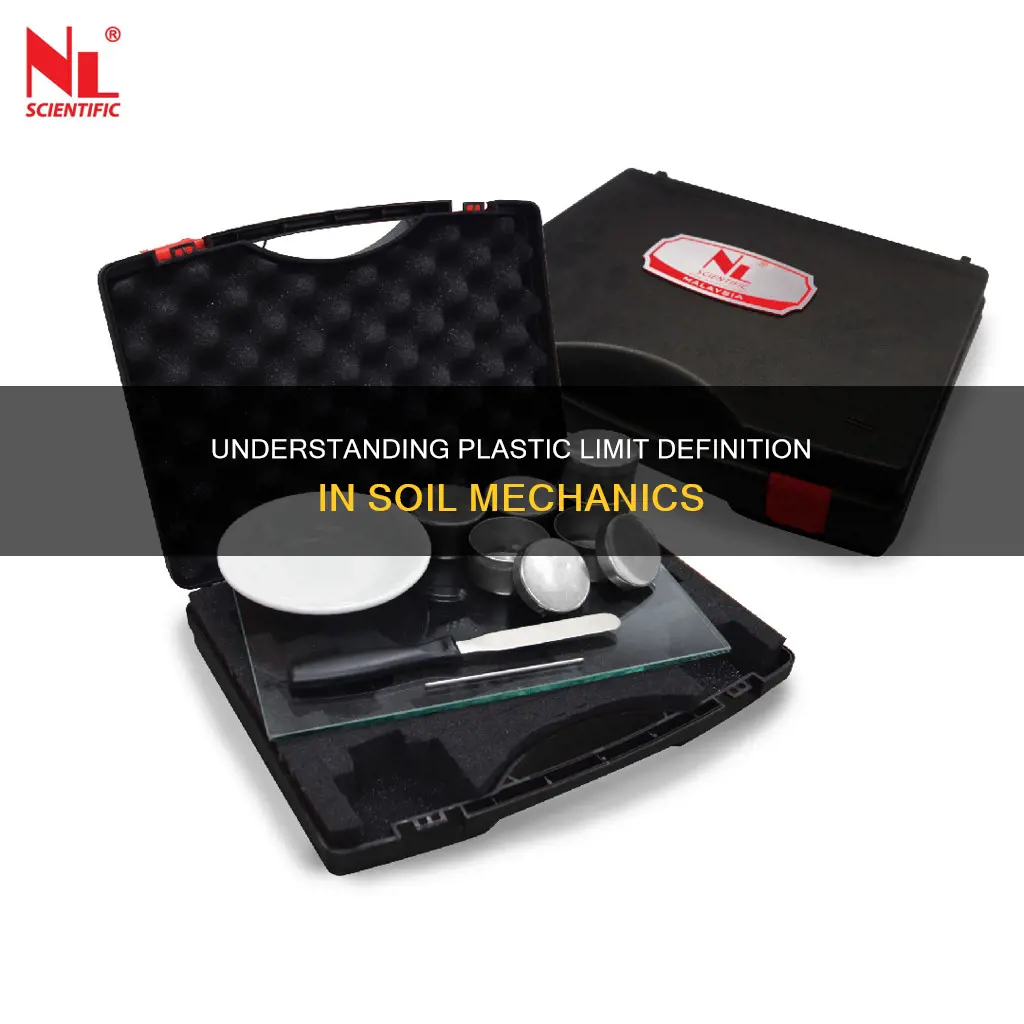

| Plastic Limit Test Apparatus | Evaporation dish or flat glass plate, ground-glass plate for rolling, balance of 0.01-gram sensitivity, rod – 3 mm in diameter, and 100 mm long. |
| Relationship with Water Content | As moisture contents increase, clay and silt soils go through four distinct states of consistency: solid, semi-solid, plastic, and liquid. |
| Relationship with Engineering Properties | The consistency and behavior of clayey soil differ at varying degrees of moisture content, and consequently, so do its engineering properties. |
| Classification of Soils | Soils with a high PI tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay. |
Explore related products
What You'll Learn
- Plastic Limit (PL) is the moisture content at which fine-grained soil can no longer be remoulded without cracking
- The Plastic Limit test involves rolling a soil sample into a thread until it crumbles
- Atterberg's Limit is used to distinguish between silt and clay and different types of silts and clays
- Plasticity Index (PI) is calculated by subtracting the Plastic Limit from the Liquid Limit
- The Plastic Limit is determined by rolling out a thread of soil on a flat, non-porous surface
Plastic Limit (PL) is the moisture content at which fine-grained soil can no longer be remoulded without cracking
The Plastic Limit (PL) is the moisture content at which a fine-grained soil can no longer be remoulded without cracking. In other words, it is the point at which a fine-grained soil changes from a plastic to a semi-solid state. This state boundary is one of four that soil can exist in, the others being solid, liquid, and plastic. The Plastic Limit is one of the Atterberg limits, which were first defined by Swedish chemist and agricultural scientist Albert Atterberg in 1911. The other Atterberg limits are the liquid limit, shrinkage limit, and plasticity index.
Atterberg limits are used to classify different types of silt and clay soils. They are useful for predicting the behaviour of soils that are intended to support structures, pavements, or other loads. The limits can also be used to identify correlations between soil properties and other engineering properties, such as compressibility, permeability, and strength.
The Plastic Limit (PL) test involves rolling a soil sample into a thread until it reaches a point where it crumbles. The moisture content at which this occurs is the Plastic Limit. The thread should be rolled out to a diameter of 3 mm (1/8 of an inch) and the soil sample can be remoulded and the test repeated if necessary.
The Plastic Limit is expressed as a percentage of the weight of oven-dry soil. It is determined by rolling out a thread of the fine portion of a soil sample on a flat, non-porous surface. As the moisture content falls due to evaporation, the thread will begin to break apart at larger diameters.
Plastic Pollution: Trashing Our Planet, Our Health
You may want to see also
Explore related products
The Plastic Limit test involves rolling a soil sample into a thread until it crumbles
The Plastic Limit (PL) is the moisture content at which a fine-grained soil can no longer be remoulded without cracking. In other words, it is the point at which a soil changes from a plastic to a semi-solid state. This transition is one of four distinct states of consistency that clay and silt soils go through as moisture content increases, the others being solid, liquid, and semi-solid.
The Plastic Limit test, also known as the lower plastic limit, involves rolling a soil sample into a thread until it crumbles. This process is repeated until the thread crumbles at a diameter of 3 mm (or 1/8th of an inch). If the thread crumbles at a diameter smaller than 3 mm, the soil is considered too wet. Conversely, if it crumbles at a diameter larger than 3 mm, the soil is drier than the plastic limit. Once the appropriate size is achieved, the moisture content of the sample is assessed.
The Plastic Limit test was first defined by Albert Atterberg, a Swedish chemist and agricultural/agronomic scientist, in 1911. Atterberg's work focused on defining the limits of soil consistency for the classification of fine-grained soils. Arthur Casagrande, an Austrian geotechnical engineer, later refined and standardised the tests, and his methods continue to be used today.
The Plastic Limit is an important value when classifying soil types. It is used in conjunction with the Liquid Limit (LL) and Shrinkage Limit (SL) to determine the plasticity index (PI) of a soil sample. The plasticity index is a measure of the plasticity of soil and is calculated by subtracting the Plastic Limit from the Liquid Limit. Soils with a high PI tend to be clay, while those with a lower PI tend to be silt.
Plastic Chemistry: Unraveling the Molecular Mystery
You may want to see also
Explore related products
Atterberg's Limit is used to distinguish between silt and clay and different types of silts and clays
The Plastic Limit (PL) is the moisture content at which a fine-grained soil can no longer be remoulded without cracking. It is one of the three Atterberg limits, along with the shrinkage limit (SL) and liquid limit (LL). These limits define the boundaries between the four states of soil consistency: solid, semi-solid, plastic, and liquid. Each state exhibits distinct differences in strength, consistency, and behaviour.
Atterberg's limit tests establish the moisture contents at which fine-grained clay and silt soils transition between these four states. In 1911, Swedish chemist and agricultural scientist Albert Atterberg was the first person to define the limits of soil consistency for the classification of fine-grained soils. He found that plasticity is a unique property of cohesive (clay and silt) soils and suggested classifying soils with a particle size of 2µm (0.002 mm) or less as clays.
The Plastic Limit (PL) test is performed by rolling out a thread of the fine portion of soil on a flat, non-porous surface. The thread is repeatedly rolled by hand until it reaches a point where it crumbles. The PL is then defined as the gravimetric moisture content where the thread breaks apart at a diameter of 3.2 mm or 1/8 inch. If the thread crumbles at a smaller diameter, the soil is too wet. If it crumbles at a larger diameter, the soil is drier than the plastic limit.
The Atterberg limits can be used to distinguish between silt and clay and to distinguish between different types of silts and clays. Soils with a high plasticity index (PI) tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay. The plasticity index is calculated by subtracting the plastic limit from the liquid limit, indicating the size of the range between the two boundaries.
Boosting Plastic Stock Weight: Strategies and Techniques
You may want to see also
Explore related products
Plasticity Index (PI) is calculated by subtracting the Plastic Limit from the Liquid Limit
The Plasticity Index (PI) is a measure of a soil's plastic behaviour. It is a crucial concept in geotechnical and civil engineering, influencing soil compaction, structural stability, and construction project integrity. The Plasticity Index is calculated by subtracting the Plastic Limit (PL) from the Liquid Limit (LL).
The Plastic Limit refers to the moisture content at which a fine-grained soil can no longer be remoulded without cracking. It marks the transition from a plastic to a semi-solid state. To determine the plastic limit, a soil sample is mixed with water and manipulated until it reaches a stiffness that allows it to be rolled into threads without crumbling. The moisture content at this stage is the plastic limit.
The Liquid Limit, on the other hand, is the moisture content at which the soil changes from a plastic to a liquid state. This is determined when the soil specimen is fluid enough for a groove to close when jarred in a specified manner.
The difference between the Liquid Limit and the Plastic Limit, or the Plasticity Index, indicates the range of moisture contents over which the soil exhibits plastic behaviour. This range is important in soil classification and engineering applications, as it helps determine soil properties such as shear strength and swelling potential.
It is important to note that the accuracy of the Plasticity Index calculation depends on the precise determination of the Liquid and Plastic Limits. These limits are established through standardised laboratory tests, such as the Atterberg limit tests, which define the boundaries between different states of soil consistency.
Rigging Soft Plastics: The Ultimate Guide to Accuracy
You may want to see also
Explore related products
The Plastic Limit is determined by rolling out a thread of soil on a flat, non-porous surface
The Plastic Limit (PL) is the moisture content at which a fine-grained soil can no longer be remoulded without cracking. In other words, it is the point at which a soil specimen changes from a plastic to a semi-solid state. The Plastic Limit is one of the Atterberg limits, which are a basic measure of the critical water content of a fine-grained soil. The Atterberg limits were first defined by Swedish chemist and agricultural scientist Albert Atterberg in 1911. They were later refined by Austrian geotechnical engineer Arthur Casagrande.
The Plastic Limit test is used to evaluate soils intended to support structures, pavements, or other loads. Geotechnical engineers must predict the behaviour of these soils under applied forces and variable moisture conditions. The Atterberg limits are useful in this context because they allow for soil behaviour to be inferred. For example, soils with similar liquid limits (LL) and plasticity indexes (PI) will typically exhibit similar strength/water content relationships.
The Plasticity Index is an important value when classifying soil types. It is calculated as the difference between the Liquid Limit and the Plastic Limit (PI = LL-PL). Soils with a high PI tend to be clay, those with a lower PI tend to be silt, and those with a PI of 0 (non-plastic) tend to have little or no silt or clay. The Plasticity Index is also used to determine the Liquidity Index (LI) and Consistency Index (CI) of a soil sample, which provide further information about the soil's properties.
In addition to the Plastic Limit and Liquid Limit, the Atterberg limits also include the Shrinkage Limit (SL). This is the moisture content at which a fine-grained soil no longer changes volume upon drying—any loss of moisture is compensated by the entry of air into the pores. The Shrinkage Limit is less frequently used than the Liquid and Plastic Limits but can be useful for determining the swelling and shrinkage capacity of soils.
Deflating a Plastic Balloon: Quick and Easy Steps
You may want to see also
Frequently asked questions
The plastic limit (PL) is the moisture content at which a fine-grained soil changes from a plastic state to a semi-solid state and can no longer be remoulded without cracking.
The Atterberg limits are a basic measure of the critical water content of a fine-grained soil. They are used to distinguish between silt and clay and to distinguish between different types of silts and clays.
The liquid limit (LL) is the water content at which soil changes from a plastic to a liquid state. The plastic limit (PL) is the water content at which soil changes from a plastic to a semi-solid state.
The plastic limit test involves rolling a soil sample into a thread until it reaches a point where it crumbles. The plastic limit is the moisture content at which the rolled soil begins to crumble when rolled into a thread of 3mm or 1/8th inch in diameter.
