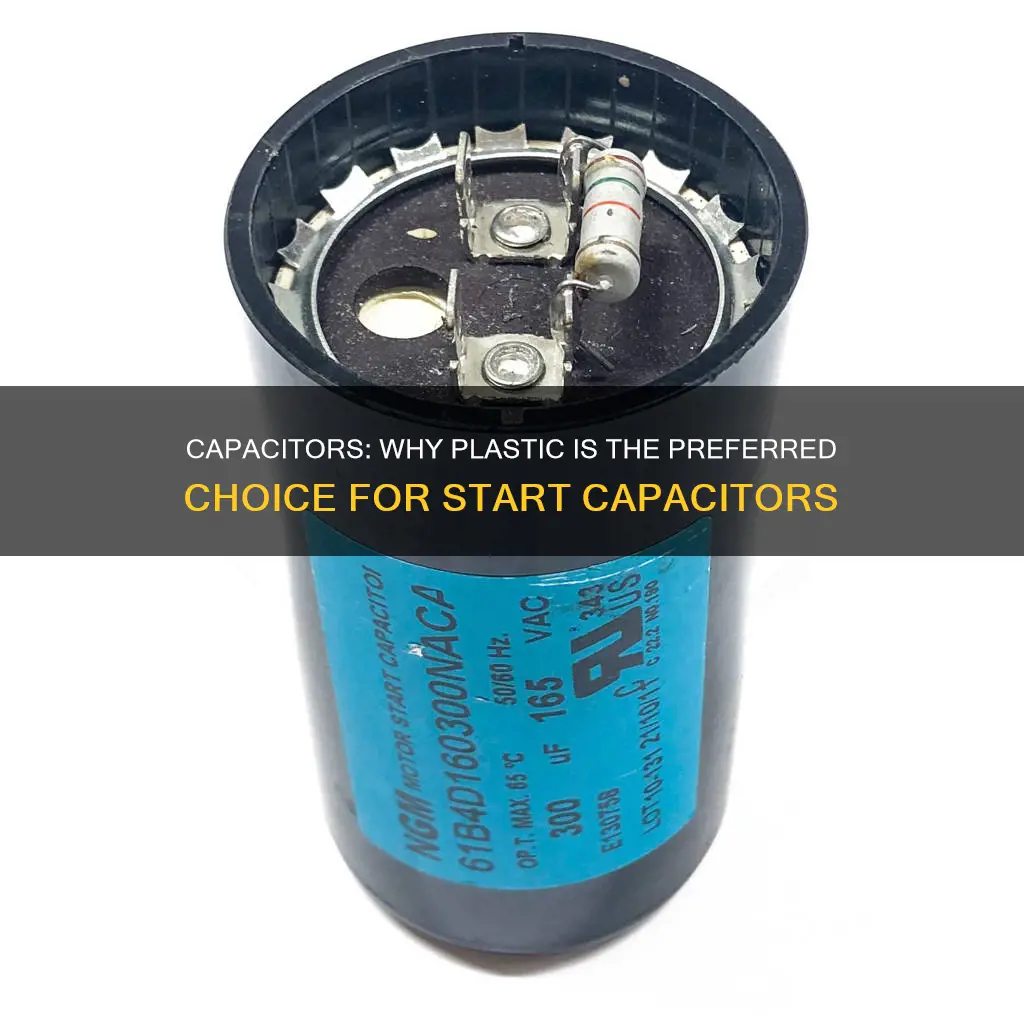

Start capacitors are used to provide an initial jolt of electricity to get a motor running. They are typically non-polarized electrolytic types and are usually encased in plastic. The use of plastic films in capacitors began during World War II when organic chemists developed thinner polymer films as a replacement for paper. Plastic film capacitors have several advantages over paper capacitors, including reduced defects, improved volumetric efficiency, and long-term stability of electrical parameters. The plastic casing also serves as a dielectric spacer, increasing the capacitor's charge capacity and allowing for standardized terminal spacings. Additionally, most start capacitors have a distinct physical design, often featuring round cases made of black phenolic or Bakelite materials.
| Characteristics | Values |
|---|---|
| Plastic film capacitors have fewer defects than paper sheets used in paper capacitors | Allows the manufacture of plastic film capacitors with only a single layer of plastic film |
| Plastic film capacitors are smaller in physical size than paper capacitors | Same capacitance value and dielectric strength as comparable paper capacitors |
| Plastic is much less hygroscopic than paper | Reduces the deleterious effects of imperfect sealing |
| Plastic is subject to fewer chemical changes over long periods | Long-term stability of electrical parameters |
| Plastic film capacitors are packaged in axial, radial, and SMD styles | Radial capacitors are available potted in plastic cases, or dipped in epoxy resin to protect the capacitor body |
| Plastic film capacitors can withstand transient heat of reflow soldering | Available in surface-mounted device (SMD) packages |
| Plastic film capacitors have electrodes of metallized aluminum or zinc | Applied directly to the surface of the plastic film, or as a separate metallic foil |
| Plastic film capacitors are constructed with terminal spacings at standardized distances | Starting with 2.5 mm pitch and increasing in 2.5 mm steps |
Explore related products
![[UL Listed] BlueStars 400-480 uF MFD 165 VAC Universal CD60 Round Motor Start Capacitor 50/60 Hz - Replacement Part for AC Electric Motor Operation - Lifetime Up to 30.000 Hours](https://m.media-amazon.com/images/I/71ssZ5UDV5L._AC_UY218_.jpg)
What You'll Learn
Plastic film capacitors are smaller in size than paper capacitors
The introduction of plastic films during the Second World War led to the development of thinner polymer films, which replaced the traditional wax-impregnated paper used in capacitors. The use of thinner plastics, such as polystyrene, polyethylene terephthalate (PET), and polypropylene, significantly reduced the dimensions of metallized polyester film capacitors. This reduction in size is further enhanced by the “stacked” configuration of film capacitors, where the metallized films are wound around a large core and then sawn into smaller segments, creating multi-layer capacitors (MLPs).
Additionally, plastic film capacitors offer high stability, long shelf life, low equivalent series resistance, and a high ability to absorb power surges. The roughness of metallized paper surfaces can cause air-filled bubbles between the dielectric and metallization, reducing the breakdown voltage. In contrast, plastic film capacitors are less prone to environmental defects and have better long-term stability of their electrical parameters due to the lower hygroscopic nature of plastic compared to paper.
The smaller size of plastic film capacitors also reduces the overall cost of the circuit. The cost of a printed circuit board is calculated per square millimeter, so a smaller capacitor footprint results in cost savings. This, combined with their superior electrical properties and reliability, has led to plastic film capacitors almost completely replacing paper capacitors in low-power DC electronic equipment.
