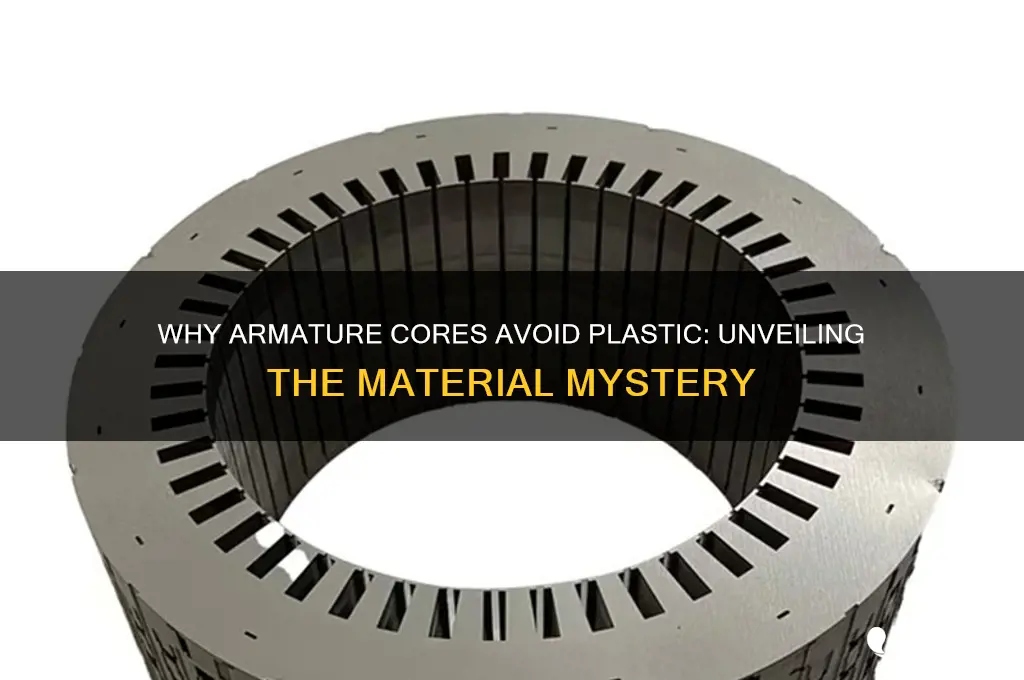

Armature cores, which are essential components in electric motors and generators, are typically made from magnetic materials like iron or steel rather than plastic due to their critical role in conducting and enhancing magnetic fields. Plastic, being a non-magnetic and electrically insulating material, would severely hinder the core’s ability to efficiently channel magnetic flux, reducing the motor’s performance and efficiency. Additionally, plastic lacks the structural strength and heat resistance required to withstand the mechanical stresses and high temperatures generated during operation. While plastic might offer advantages in terms of weight and cost, its inherent properties make it unsuitable for the demanding functional and environmental requirements of armature cores, ensuring that traditional magnetic materials remain the preferred choice.
| Characteristics | Values |
|---|---|
| Magnetic Permeability | Plastic has very low magnetic permeability, making it ineffective for enhancing magnetic fields, which is crucial for armature core functionality. |
| Electrical Conductivity | Plastics are insulators and do not conduct electricity, whereas armature cores require materials that can handle induced currents (eddy currents) efficiently. |
| Thermal Conductivity | Plastics have poor thermal conductivity, leading to heat buildup, which can damage the motor or reduce efficiency. |
| Mechanical Strength | While some plastics are strong, they lack the necessary rigidity and durability to withstand the mechanical stresses in rotating armatures. |
| Cost-Effectiveness | High-performance plastics suitable for such applications are often more expensive than traditional materials like iron or steel. |
| Manufacturability | Plastics may not be as easily machined or formed into the precise shapes required for armature cores compared to metals. |
| Weight | Although plastics are lighter, the trade-off in performance (magnetic, thermal, and mechanical properties) makes them unsuitable for armature cores. |
| Environmental Stability | Plastics can degrade under high temperatures or exposure to certain chemicals, whereas metals like iron and steel are more stable. |
| Recyclability | While plastics can be recycled, the specialized plastics required for such applications may not be as easily recyclable as metals. |
| Tradition and Standardization | Armature cores have historically been made from ferromagnetic materials like iron and steel, and industry standards are built around these materials. |
Explore related products
What You'll Learn
- Plastic's Low Magnetic Permeability: Plastic lacks the ability to enhance magnetic fields like iron or steel
- Insufficient Structural Strength: Plastic cannot withstand the mechanical stresses in armature cores
- Thermal Limitations: Plastic melts at lower temperatures, unsuitable for heat dissipation in motors
- Electrical Insulation Issues: Plastic's conductivity risks short circuits in electromagnetic devices
- Cost vs. Performance: Metal cores offer better efficiency and durability despite higher initial costs
Plastic's Low Magnetic Permeability: Plastic lacks the ability to enhance magnetic fields like iron or steel
Magnetic permeability, a measure of how readily a material responds to a magnetic field, is a critical property in the design of armature cores. Plastics, despite their versatility and widespread use in engineering, exhibit extremely low magnetic permeability. This means they do not concentrate magnetic flux effectively, a fundamental requirement for armature cores in electric motors and generators. In contrast, materials like iron and steel possess high magnetic permeability, allowing them to enhance and channel magnetic fields efficiently. This disparity in permeability is the primary reason plastics are unsuitable for armature cores.
Consider the function of an armature core: it must maximize the interaction between the magnetic field and the current-carrying conductors to produce mechanical torque or generate electricity. Plastics, with their negligible permeability, would severely hinder this process. The magnetic flux would pass through the plastic core with minimal amplification, resulting in reduced efficiency and performance. For instance, in a typical DC motor, an armature core made of plastic would lead to significantly lower torque output compared to one made of laminated silicon steel, which has a relative permeability of around 2,000.
To illustrate the impact of magnetic permeability, imagine a simple experiment: place a plastic rod and an iron rod near a magnet. The iron rod will be strongly attracted to the magnet due to its high permeability, while the plastic rod will remain unaffected. This demonstrates the inability of plastics to interact meaningfully with magnetic fields. In practical terms, using plastic in an armature core would be akin to trying to focus light with a sheet of paper instead of a lens—the material simply lacks the necessary properties to perform the task.
From a design perspective, engineers must prioritize materials that optimize magnetic flux density and minimize energy losses. Plastics, while advantageous in terms of weight, cost, and corrosion resistance, fall short in this critical area. For applications requiring high efficiency, such as automotive motors or industrial generators, the choice of core material is non-negotiable. Even in cases where weight reduction is a priority, engineers often turn to advanced materials like amorphous metals or grain-oriented silicon steel, which offer improved permeability without the drawbacks of plastic.
In conclusion, the low magnetic permeability of plastics renders them impractical for armature cores. While plastics excel in many engineering applications, their inability to enhance magnetic fields disqualifies them from this specific role. For those exploring alternative materials, the key takeaway is clear: magnetic permeability is a non-negotiable property for armature cores, and materials must be selected accordingly to ensure optimal performance.
Does Mod Podge Paper Mache Adhere Well to Plastic Surfaces?
You may want to see also
Explore related products
Insufficient Structural Strength: Plastic cannot withstand the mechanical stresses in armature cores
Plastic, despite its versatility, falls short in the demanding environment of an armature core. These cores are subjected to intense mechanical stresses during operation, including centrifugal forces, vibration, and thermal expansion. Plastic, even high-performance varieties, lacks the inherent strength and stiffness to withstand these forces without deformation or failure. Imagine a plastic gear in a high-speed motor – the centrifugal force alone would cause it to distort, leading to inefficiency, noise, and potential catastrophic breakdown.
While advancements in plastic composites have yielded materials with impressive strength-to-weight ratios, they still pale in comparison to traditional armature core materials like iron and steel. These metals possess a unique combination of high tensile strength, modulus of elasticity, and fatigue resistance, making them ideal for enduring the relentless stresses within a motor.
Consider the operating conditions of a typical armature. Rotational speeds can reach tens of thousands of revolutions per minute, generating significant centrifugal forces. Plastic, being less dense than metal, would require a thicker core to achieve equivalent strength, leading to increased weight and reduced efficiency. Furthermore, the constant vibration and thermal cycling experienced by the armature would accelerate fatigue cracking in plastic, leading to premature failure.
Metal armature cores, on the other hand, are designed with specific grain structures and heat treatments to optimize their mechanical properties. This allows them to withstand the combined effects of stress, vibration, and temperature fluctuations without compromising performance or longevity.
The choice of material for armature cores is a critical engineering decision. While plastic offers advantages in terms of weight reduction and manufacturability, its insufficient structural strength makes it unsuitable for this demanding application. Metal, with its superior mechanical properties, remains the material of choice, ensuring the reliability and durability of electric motors across a wide range of applications.
Why Windshields Remain Glass: The Science Behind Material Choices
You may want to see also
Explore related products
Thermal Limitations: Plastic melts at lower temperatures, unsuitable for heat dissipation in motors
Plastic, despite its versatility, faces a critical limitation when considered for armature cores in motors: its low melting point. Most plastics begin to deform or melt at temperatures as low as 100°C (212°F), while motor armatures can reach temperatures exceeding 150°C (302°F) under load. This disparity renders plastic unsuitable for such applications, as it would compromise the structural integrity of the core, leading to motor failure. For instance, polypropylene, a common plastic, melts at approximately 160°C (320°F), which is barely above the operating temperature of many motors. This thermal mismatch underscores why plastics are not viable for armature cores.
Consider the heat dissipation requirements of motors. Armature cores are subjected to continuous electrical currents, generating heat that must be efficiently dissipated to prevent overheating. Metals like iron or steel, commonly used in armature cores, have high thermal conductivity—iron, for example, conducts heat at a rate of 80 W/m·K, compared to just 0.2 W/m·K for most plastics. This stark difference means plastics would trap heat rather than disperse it, accelerating thermal degradation and reducing motor lifespan. In high-performance applications, such as automotive or industrial motors, this inefficiency is unacceptable.
A practical example illustrates this challenge: a plastic armature core in a 1-horsepower motor operating at 75% efficiency would generate approximately 250 watts of heat. Without adequate thermal conductivity, this heat would accumulate, potentially melting the plastic and causing catastrophic failure. In contrast, a steel core would dissipate this heat effectively, maintaining safe operating temperatures. This scenario highlights why thermal properties are a non-negotiable factor in material selection for armature cores.
To mitigate thermal risks, engineers must prioritize materials with high melting points and thermal conductivity. While plastics excel in insulation, lightweight design, and cost-effectiveness, their thermal limitations make them incompatible with the demanding environment of motor armatures. Innovations in composite materials or heat-resistant polymers might one day bridge this gap, but current technology confines armature cores to metals. For now, the choice remains clear: thermal performance trumps other material advantages in this critical application.
Sustainable Choice: Benefits of Buying Post-Consumer Recycled Plastic Products
You may want to see also
Explore related products
Electrical Insulation Issues: Plastic's conductivity risks short circuits in electromagnetic devices
Plastic, despite its versatility, poses a critical risk in electromagnetic devices due to its inherent electrical conductivity. While plastics are generally insulators, they are not perfect. Trace impurities, moisture absorption, and mechanical stress can elevate their conductivity to dangerous levels. In armature cores, where electromagnetic fields are intense, even a slight increase in conductivity can lead to eddy currents—circulating currents that dissipate energy as heat. This inefficiency not only reduces device performance but also risks overheating, potentially causing insulation breakdown and short circuits. For instance, a plastic armature core in a high-speed motor could generate enough heat to melt surrounding insulation, leading to catastrophic failure.
Consider the role of plasticizers and fillers in common plastics. Plasticizers, added to improve flexibility, often lower the material’s resistivity, making it more conductive. Fillers, while intended to enhance strength, can create pathways for current flow if not uniformly distributed. In electromagnetic applications, these additives become liabilities. A study on PVC, a widely used plastic, found that its resistivity drops by up to 50% when exposed to high humidity, a common condition in industrial environments. Such conductivity levels are unacceptable for armature cores, where insulation integrity is paramount.
To illustrate the risk, compare plastic to traditional armature core materials like iron or silicon steel. These metals, while conductive, are laminated or coated to minimize eddy currents. Plastic, however, lacks this inherent structure. Even with advanced insulation techniques, plastic cores would require prohibitively thick coatings to achieve comparable performance. For example, a plastic core in a 1 kW motor might require a 2 mm insulation layer, adding bulk and reducing efficiency. In contrast, a laminated steel core achieves the same insulation with a 0.1 mm layer, showcasing the impracticality of plastic alternatives.
Addressing this issue requires a shift in material selection, not just design. Engineers must prioritize materials with stable, low conductivity under electromagnetic stress. While research into conductive plastics for specific applications (e.g., antistatic packaging) is ongoing, these materials are unsuitable for armature cores. Instead, focus should remain on proven insulators like ceramics or composites, which offer the necessary electrical resistance without compromising structural integrity. For hobbyists or small-scale projects, avoid substituting plastic for metal cores in motors or generators—the risk of short circuits far outweighs the perceived benefits of cost or ease of manufacturing.
In conclusion, the conductivity risks of plastics in electromagnetic devices are not theoretical but practical barriers to their use in armature cores. From eddy current losses to insulation failure, the drawbacks are too significant to ignore. While plastics excel in many applications, their limitations in high-field environments demand adherence to traditional materials. For those experimenting with electromagnetic devices, heed this caution: plastic cores are a recipe for inefficiency and failure, not innovation. Stick to proven materials to ensure safety and performance.
Why Earth Pin Uses Plastic: Safety and Functionality Explained
You may want to see also
Explore related products
Cost vs. Performance: Metal cores offer better efficiency and durability despite higher initial costs
Armature cores, the backbone of electric motors, are almost universally made of metal, not plastic. This isn't a coincidence. While plastic might seem like a cheaper alternative, the performance and durability gap between the two materials is significant, making metal the clear choice for most applications.
Let's break down the cost-performance equation.
Initial Investment vs. Long-Term Savings:
Yes, metal cores carry a higher upfront cost compared to plastic. This is primarily due to the cost of raw materials and the more complex manufacturing processes involved. However, this initial investment pays off in the long run. Metal cores boast superior conductivity, allowing for more efficient energy transfer and reduced energy loss as heat. This translates to lower operating costs over the motor's lifespan, potentially offsetting the initial price difference.
Imagine a high-efficiency industrial motor running 24/7. The energy savings from a metal core could amount to thousands of dollars annually, quickly recouping the initial cost difference.
Durability: A Matter of Survival:
Motors operate in demanding environments, often subjected to heat, vibration, and mechanical stress. Plastic, while lightweight, lacks the structural integrity to withstand these forces over time. Metal cores, on the other hand, are inherently stronger and more resistant to deformation. This durability translates to longer motor life, reduced maintenance needs, and fewer costly replacements.
Performance Under Pressure:
In applications requiring high torque or precision control, metal cores shine. Their superior magnetic properties allow for stronger, more consistent magnetic fields, resulting in smoother operation and greater control over motor output. Plastic cores, due to their lower magnetic permeability, simply can't match this level of performance.
The Sweet Spot: Balancing Cost and Need:
While metal cores offer undeniable advantages, there are niche applications where plastic might be considered. Low-power, low-torque applications with minimal environmental stress could potentially utilize plastic cores to reduce costs. However, even in these cases, careful consideration of the specific requirements is crucial.
Why Screwdriver Handles Use Plastic: Benefits and Practical Reasons
You may want to see also
Frequently asked questions
Armature cores are not made out of plastic because plastic lacks the necessary magnetic properties required for efficient operation. Armature cores need to be highly magnetic to interact with the magnetic field in motors or generators, and plastic is non-magnetic.
No, plastic cannot withstand the heat and mechanical stress in armature cores. Armature cores experience high temperatures and mechanical forces during operation, and plastic would deform or melt under such conditions, whereas materials like iron or steel are durable and heat-resistant.
While plastic is lighter and cheaper, it does not provide the magnetic conductivity or structural integrity needed for armature cores. The primary function of an armature core is to enhance magnetic flux, which plastic cannot achieve, making it unsuitable despite its cost and weight advantages.
