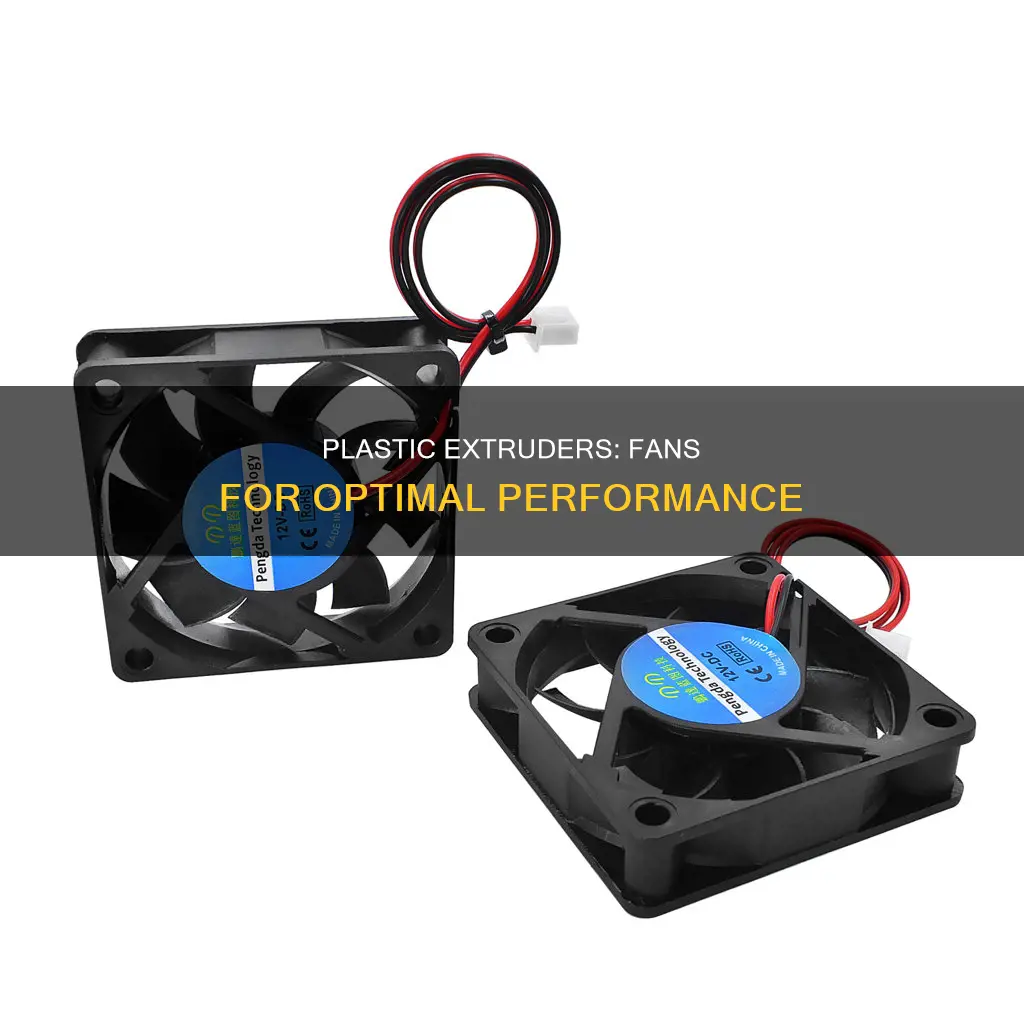

Plastic extruders have fans to cool the extruder and filament to an appropriate temperature as it leaves the extruder. This prevents the filament from melting and causing jams. The fans also prevent the already printed plastic from warping and curling upwards by cooling the layers evenly. The fans are usually mounted on the extruder or in front of it, and their speed and timing can be controlled.
| Characteristics | Values |
|---|---|
| Purpose | To cool the extruder, electronics, and filament |
| Impact | Large impact on finished objects |
| Power consumption | Low |
| Mounting | On each side of the extruder, at a 25-degree angle; squarely on the extruder; or in front of the extruder |
| Functionality | Provides high functionality to objects being printed |
| Temperature control | Helps maintain appropriate temperatures for the filament |
| Printing quality | Enables bridging of extruded material, creating solid surfaces for printing |
| Speed | Allows printing at full speed, even with fine details |
| Precision | Allows for precise control of fan speed and when it turns on/off |
| Heat sink | Helps cool the upper-half of the stainless steel tube, preventing heat creep |
Explore related products
What You'll Learn
Fans prevent the plastic extruder from overheating
Fans are an important component of 3D printers with plastic extruders. They are necessary to prevent the extruder from overheating, as well as to cool the filament to an appropriate temperature as it leaves the extruder.
Plastic extruders heat up to high temperatures, and the fans help to cool the electronics and maintain a cool temperature. The fans consume a relatively low amount of power and voltage, but they have a significant impact on the finished objects that are printed. By cooling the extruder, the fans prevent the plastic extruder from overheating and ensure the functionality of the printed objects.
The fans are typically mounted on or near the extruder, and their positioning can vary depending on the type of 3D printer. Some printers have fans mounted on each side of the extruder at an angle, while others have the fan mounted directly on the extruder. The angle and position of the fans are designed to optimise the cooling effect on the extruder and the filament.
The use of fans is particularly important when printing with certain materials, such as aluminium extruder constructions, which act as a heat sink. By keeping the upper half of the extruder cold, the fans prevent the filament from melting prematurely and ensure a smooth extrusion process.
Additionally, fans can be set to turn on at specific print heights or when printing certain materials. This allows for precise control over the cooling process and ensures that the filament remains at the optimal temperature throughout the printing process.
Mending Plastic Canvas: Quick and Easy Fixes
You may want to see also
Explore related products
They cool the filament to an appropriate temperature
Fans are an important component of 3D printers with plastic extruders. They are necessary to cool the filament to an appropriate temperature as it leaves the extruder and goes onto the print bed. This ensures the object being printed is successful and prevents the model from turning into a messy blob.
The fans are particularly useful when printing tiny parts with little layer surface area or printing objects at high speeds. In such cases, the layer of plastic laid down doesn't have time to cool and is still molten when the next layer is laid down. With the radiated heat from the nozzle and more hot plastic being extruded, the model can end up being a mess.
The fans also help to cool the extruder itself. This is important as the extruder will be heating up to a high temperature. Additionally, the fans can cool the stepper motor assembly, preventing the motor heat from creeping into the drive wheel and softening the PLA at the pinch bearing.
The positioning of the fans can vary depending on the type of 3D printer. For i3 3D printers, fans may be mounted on each side of the extruder at a 25-degree angle or squarely on the extruder. On CoreXY and dual extruder printers, the fans are typically mounted in front of each extruder for direct airflow onto the heating block.
Preventing Concrete Adhesion: Plastic Protection Tips
You may want to see also
Explore related products
Fans can be angled for optimal functionality
Fans are an important component of 3D printers with extruders. They are necessary to cool the extruder and the filament to an appropriate temperature. The fans consume low power and voltage but have a large impact on the finished objects that are printed.
The positioning and angling of the fans can be correlated with the structure type of the 3D printer. For instance, in i3 3D printers, fans are often mounted in two different ways. One way is to have the fan on each side of the extruder at a twenty-five-degree angle. The other method is to mount the fan squarely on the extruder. On CoreXY and dual extruder 3D printers, the fans are typically positioned in front of each extruder, allowing direct airflow onto the heating block.
The angle of the fans is important for optimal functionality. By angling the fans, the object being printed can benefit from direct airflow, preventing issues such as warping and ensuring even cooling. Angled fans can also help to cool specific components, such as the stepper motors, by directing airflow towards them.
Additionally, the ability to angle the fans provides flexibility in the printing process. Depending on the filament and printing requirements, the fans can be angled to provide cooling at specific heights or for certain parts of the print, such as rafts, brims, or supports. This allows for precise control over the cooling process and helps to ensure successful printing.
Overall, the ability to angle the fans in a 3D printer with an extruder ensures optimal functionality by providing targeted cooling, preventing warping, and enabling precise control over the printing process.
Understanding Clay's Plastic Limit: How Much is Too Much?
You may want to see also
Explore related products
They can be set to turn on at a certain print height
Fans are an integral part of 3D printers, and while they may seem insignificant, they play a crucial role in the printing process and the quality of the finished objects. One of the key advantages of having fans in 3D printers is the ability to set them to turn on at a specific print height, offering greater precision and flexibility in the printing process.
The option to set the fans to activate at a certain print height is particularly useful when using a multi-material 3D printer with dual extruders or the capability to print with multiple materials simultaneously. This feature ensures that the fans turn on when printing with filaments that require cooling, typically when printed at or above a certain height. For instance, when printing with certain filaments, such as "flex-filaments," it is preferable to keep the temperature as low as possible.
By utilising the multi-variable fan height setting, users can precisely control when the fans turn on or off at specific heights. This feature is beneficial when printing with multiple materials, where one material may require a fan, while the other does not. Additionally, this setting can be advantageous when printing specialty parts or features, such as rafts, brims, or supports, allowing the fan to be activated only when needed.
The ability to customise the fan settings based on print height empowers creators to experiment with a diverse range of materials and printing techniques. It ensures that each filament is cooled effectively, reducing the risk of warping or melting issues. This level of control contributes to the overall success of the printing process and enhances the quality of the final printed objects.
Blow-Drying Plastic: The Ultimate Guide to Weave a Basket
You may want to see also
Explore related products
Fans prevent the plastic from melting and warping
Fans are an important component of 3D printers with plastic extruders. They are necessary to cool the extruder and the filament to an appropriate temperature as it leaves the extruder. The filament needs to be cooled down to prevent the plastic from melting and warping.
The extruder will heat up to a high temperature, and the fans help to cool the filament to the right temperature as it is extruded. This is especially important when printing tiny parts with little layer surface area or printing objects at high speeds, where each layer is completed in a matter of seconds. Without a fan, the layer of plastic may still be molten when the next layer is laid down, resulting in a messy blob instead of the desired object.
The fans also help to cool the electronics and prevent heat creep, which can cause the filament to melt higher up in the hot end, leading to jams. Additionally, the fans can be positioned to direct airflow onto the heating block, providing direct cooling to the extruder.
The use of fans can also enable bridging, which is an essential part of many 3D-printed objects. Bridging occurs when a model must span a gap, creating a bridge in thin air. Without a fan, the extruded material may sag, break, or form strings of snapped filament.
Revamping Car Emblems: Replacing Plastic Badges
You may want to see also
Frequently asked questions
Plastic extruders have fans to cool down the extruder and the filament to an appropriate temperature.
If the filament is not cooled down, the plastic will still be molten when the next layer is laid down, resulting in a messy blob instead of the desired object.
Using a fan with a plastic extruder can help prevent the already printed plastic from warping and curling upwards. It also helps to cool down the electronics and provides a high level of functionality to the objects being printed.
It is important to ensure that the fan does not cool down the heated bed or the hot-end, as this can cause issues with the printing process. Additionally, the positioning and speed of the fan can impact the results, with some materials requiring specific fan settings.
Yes, some users have mentioned creating an enclosure or cabinet to keep the extruder warm and allow for slower cooling, especially when printing with materials like ABS that may not fare well with direct cooling.
