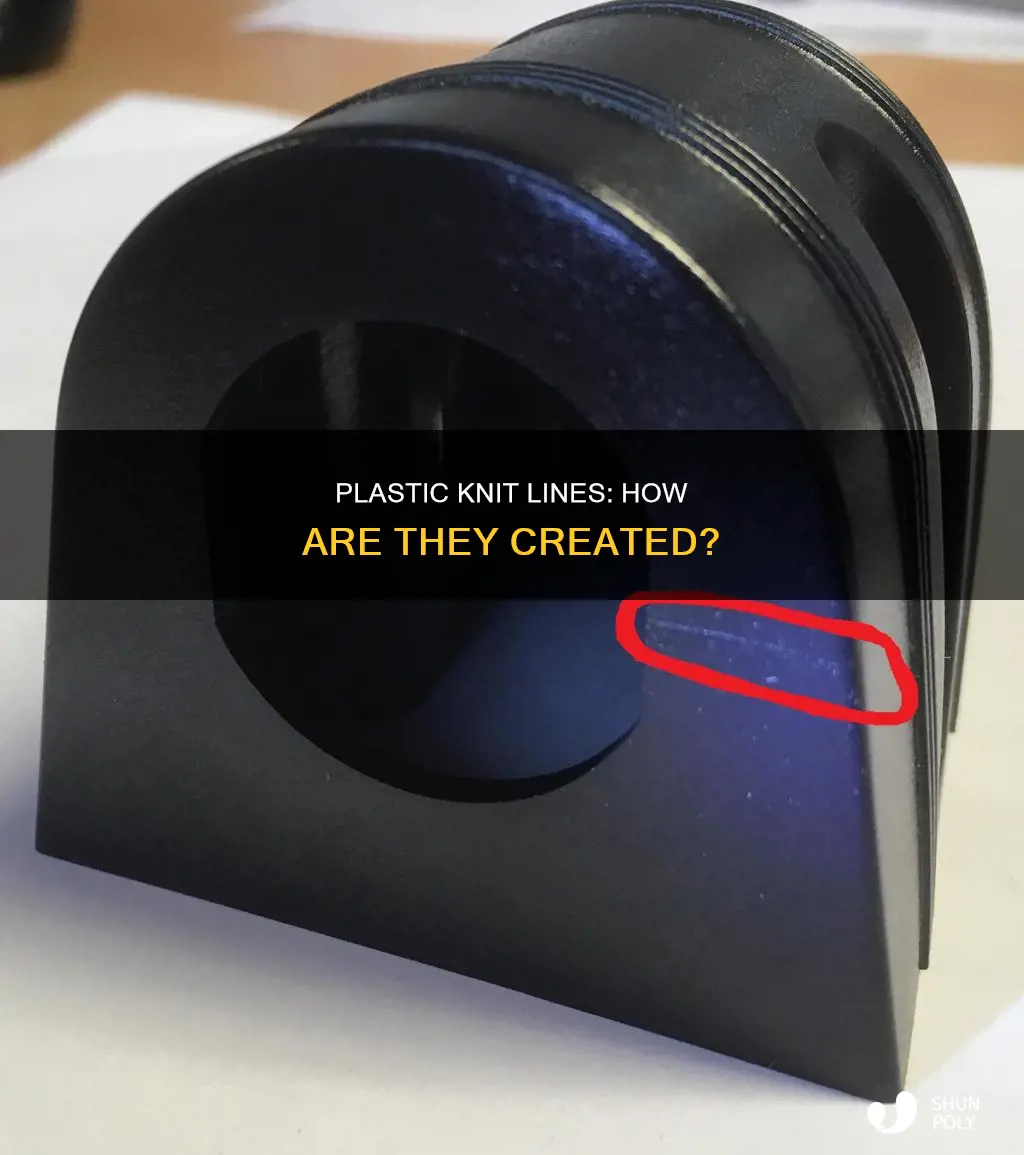

Injection molding is a common and efficient method for producing plastic parts. However, it can lead to the formation of knit lines, which are visible or invisible lines where two or more plastic flows meet and solidify within the mold. Knit lines can be a cosmetic issue or cause serious structural problems, depending on the design and material involved. The creation of knit lines is influenced by various factors, including the resin type, temperature, and filling speed. While they are sometimes unavoidable, certain techniques can be employed to minimize their appearance and improve the strength and aesthetics of the final product.
| Characteristics | Values |
|---|---|
| Cause | The primary cause of knit lines is the way the plastic flow rejoins after it goes around an obstruction in the mold. |
| Formation | Knit lines are formed when two or more plastic flows collide and solidify or knit together in the middle of a part during the injection molding process. |
| Factors | The size and shape of knit lines are affected by molding parameters, and its location is governed by the geometry of the part. |
| Issues | Knit lines can cause cosmetic issues or serious structural problems. |
| Prevention | Knit lines can be prevented by using resins that are less susceptible to knit line formation, relocating boss and gate locations, and thickening part walls. |
Explore related products
What You'll Learn
- Knit lines are formed when two or more plastic flows meet and solidify
- The size and shape of knit lines are influenced by moulding parameters
- The location of knit lines is determined by the geometry of the part
- Knit lines can be minimised by using resins less prone to knit line formation
- Knit lines can be moved to less critical areas by optimising gate placement
Knit lines are formed when two or more plastic flows meet and solidify
Injection molding is a process where a thermoplastic resin is heated to its melting point and injected into the cavity of an injection mold. Each mold produces a specific part. Knit lines are formed when two or more plastic flows meet and solidify during the injection molding process. They can vary from being virtually invisible to looking like cracks in the plastic.
Knit lines are formed when the plastic flow rejoins after going around a metal core in the mold. The plastic wants to naturally cool as it travels through the cavity, and if it meets an obstruction, it must travel around and meet at the other side. This creates a knit line downstream from the obstruction. The plastic in the "flow front" cannot pass through the core pin, so it flows around it, splitting into two distinct flow fronts. As these fronts meet on the opposite side of the pin, they begin to "knit" together.
The size and shape of the knit line are affected by the molding parameters, but its location is governed by the geometry of the part. The primary cause of knit lines is the way the plastic flow rejoins after going around an obstruction in the mold. This can be a core or shutoff feature that the plastic needs to flow around. The location of the knit line will be downstream from every hole that goes through the part.
Knit lines can sometimes be a problem, causing serious structural issues. They can also be a cosmetic issue, as they may appear as cracks in the finished part. However, they do not always affect the structural integrity of the plastic part. Knit lines are common in electronic enclosures and do not affect their performance.
To avoid knit lines, designers can switch up the materials used. Different materials lead to stronger or weaker knit lines. For example, unfilled materials tend to have stronger knit lines than filled materials. The resin selected can also make a difference. Resin temperature, mold temperature, and filling speed can also be adjusted to minimize knit lines.
Microwaving Plastic To-Go Boxes: Safe or Not?
You may want to see also
Explore related products
The size and shape of knit lines are influenced by moulding parameters
The type of resin used can impact the formation of knit lines. For example, resins with lower flow rates, such as ABS, are more prone to knit lines. Additionally, filled resins can also contribute to knit lines, as the resin front and fill material may not align perfectly when they meet and cool. Resins with higher filler content and longer fibres tend to form weaker knit lines.
Mould temperature plays a crucial role in knit line formation. As the plastic flows through the mould, it naturally cools down. If the plastic encounters an obstruction, it must flow around it, and the two fronts may meet on the other side, forming a knit line if they have cooled too much to meld completely. Adjusting the mould temperature can help control the cooling rate of the plastic and minimise the appearance of knit lines.
Filling speed, or injection speed, also influences knit line formation. By adjusting the filling speed, the cooling rate of the resin can be managed, affecting the size and shape of the knit lines.
Thicker walls within the mould can further slow down the cooling rate of the resin, improving the appearance and strength of knit lines. Additionally, the placement of gates, which are the areas where resin is injected, can be optimised to minimise knit lines or move them to less critical areas.
While moulding parameters play a significant role in influencing the size and shape of knit lines, it is important to note that the location of knit lines is primarily determined by the geometry of the part being moulded.
The Evolution of 3D-Printed Medical Tools: Plastic Pros and Cons
You may want to see also
Explore related products
The location of knit lines is determined by the geometry of the part
The location of knit lines in plastic parts is dictated by the geometry of the mold or tool from which the part is manufactured. Knit lines, or weld lines, occur when two or more plastic fronts meet as the molten plastic flows into the mold cavity and fuse together, forming a weak bond. This creates a line of inherent structural weakness in the final product.
The geometry of the part plays a crucial role in determining where these knit lines will occur. Knit lines usually form when the plastic flows around sharp corners, cores, or obstructions in the mold cavity. The number of knit lines and their location can be predicted by analyzing the mold's geometry and understanding the flow of plastic during the injection process.
For example, in a simple rectangular mold, the plastic will flow from the injection point and fill the cavity. If the mold has a uniform thickness, the plastic fronts will meet and fuse in the center, creating a straight knit line parallel to the injection point. However, if the mold has varying thicknesses or obstructions, the knit lines will form at different locations and may have more complex patterns.
The design of the mold can also be strategically used to minimize the occurrence of knit lines in critical areas of the part. This can be achieved by altering the geometry to promote more uniform plastic flow or by incorporating features such as overflow grooves or weld line dispersers. These features help control the location and severity of knit lines, ensuring they occur in less critical areas of the part where their presence will have minimal impact on the structural integrity or functionality of the final product.
Additionally, the location of knit lines can be influenced by the positioning of the injection point in relation to the geometry of the part. By carefully selecting the injection point, the flow of plastic can be optimized to minimize the formation of knit lines in critical areas. This involves considering the orientation of the part, the number and location of gates, and the use of techniques such as multi-point injection to control the plastic flow and direct it in a way that reduces the occurrence of weld lines.
Plastic and Paper Nails: Are They Interchangeable?
You may want to see also
Explore related products
Knit lines can be minimised by using resins less prone to knit line formation
Knit lines are a common issue in plastic injection moulding, where two or more plastic flows meet and solidify or "knit" together within a mould. This process can lead to the formation of visible or invisible lines, which can sometimes be perceived as defective fractures. While knit lines typically do not affect the performance of electronic enclosures, they can cause a reduction in strength and may even result in serious structural issues.
To minimise knit lines, it is essential to select resins that are less prone to knit line formation. Different resins exhibit varying tendencies to form knit lines, with ABS being particularly susceptible. Filled resins, such as those with higher filler content and longer fibres, tend to produce weaker knit lines. Additionally, certain thermoplastic materials, like Santoprene, and resins with additives, can exacerbate the problem. By choosing resins with lower susceptibility to knit lines, such as those with higher flow rates, the occurrence of knit lines can be reduced.
The use of unfilled materials can also help minimise knit lines, as they generally result in stronger knit lines compared to filled materials. For instance, Polypropylene (PP) parts exhibit better reintegration at knit lines than Thermoplastic Olefin (TPO) parts, despite PP being a relatively weaker material. Furthermore, short fibres or glass beads can enhance the strength of knit lines by improving the bonding capabilities of the resin.
It is worth noting that the location of knit lines can be influenced by the placement of gates, which are the areas where resin is injected. By working with experts, such as Protolabs or injection moulding providers, the gates can be optimally positioned to minimise the appearance of knit lines or relocate them to less critical areas. This can be achieved through simulations that determine the appropriate gate locations, ensuring that knit lines have a lower impact on the overall fit and function of the moulded part.
In addition to resin selection and gate placement, the thickness of part walls can play a role in minimising knit lines. Increasing the wall thickness can slow down the cooling rate of the resin, leading to improved appearance and strength of any knit lines that may form. However, it is crucial to strike a balance, as excessively thick walls may result in sink marks.
How to Prepare Plastic for Windows: Unfolding Tips
You may want to see also
Explore related products
Knit lines can be moved to less critical areas by optimising gate placement
Knit lines are a common occurrence in plastic injection moulding. They are formed when two or more plastic flows meet within the mould and "resolidify" along their interface. The plastic in the 'flow front' cannot pass through the core pin, so it flows around the pin, splitting into two distinct flow fronts. As these fronts meet on the opposite side of the pin, they begin to 'knit' together. This creates a distinct knit line, which is marginally lower in temperature and strength than the other areas of the enclosure. While knit lines are a natural and unavoidable part of the moulding process, they can be perceived as defective fractures, especially in cosmetic applications.
Optimising gate placement is a crucial strategy to address knit lines. Gates are the areas where resin is injected into the mould. By strategically positioning the gates, knit lines can be minimised or relocated to less critical areas. Simulation tools can aid in determining the appropriate gate location, ensuring that the knit line forms in a region with minimal impact on the overall fit and function of the moulded part. This approach allows for a stronger and more aesthetically pleasing final product.
The selection of resin is another factor that influences knit lines. Different resins exhibit varying tendencies to form knit lines. For instance, resins with lower flow rates, such as ABS, are more prone to knit lines. Additionally, filled resins, particularly those with higher filler content and longer fibres, tend to have weaker knit lines. Thermoplastic materials, such as Santoprene, and additives like flame retardants, lubricants, and mould releases, can also exacerbate the formation of knit lines.
To mitigate the impact of knit lines, it is advisable to collaborate with experts in injection moulding, such as Protolabs and Xcentric Mold & Engineering. These companies employ specialised processes and techniques to minimise or eliminate knit lines, ensuring the structural integrity and aesthetic appeal of the moulded parts.
Furthermore, adjusting mould temperature, fill speed, and valve gate control can also influence the appearance and severity of knit lines. By manipulating these variables, the cooling rate of the resin can be regulated, resulting in improved knit line strength and a more seamless appearance. Thicker walls within the mould can also contribute to slower resin cooling, enhancing the overall quality of the moulded part.
Plastic Party Cups: Good or Bad for Coffee?
You may want to see also
Frequently asked questions
Knit lines are formed when two or more plastic flows meet and solidify or "knit" together during the injection moulding process. They can be visible or invisible and can vary from looking like cracks in the plastic to being virtually unnoticeable.
Knit lines occur when the plastic flow rejoins after going around an obstruction, such as a metal core or a core pin, in the mould. The plastic cannot pass through the obstruction, so it flows around it, splitting into two distinct fronts. These fronts then meet on the opposite side of the obstruction and begin to knit together.
The size and shape of knit lines are affected by the moulding parameters, but their location is primarily governed by the geometry of the part. The resin used, resin temperature, mould temperature, and filling speed can also impact the appearance of knit lines. For example, resins with lower flow rates, such as ABS, are more prone to forming knit lines.
While knit lines are sometimes unavoidable, there are several techniques to minimise or prevent their formation. These include using resins that are less susceptible to knit lines, adjusting mould temperature and fill speed, thickening part walls to slow the cooling process, and working with technicians to optimise the gate placement.
