Ethan Clarke

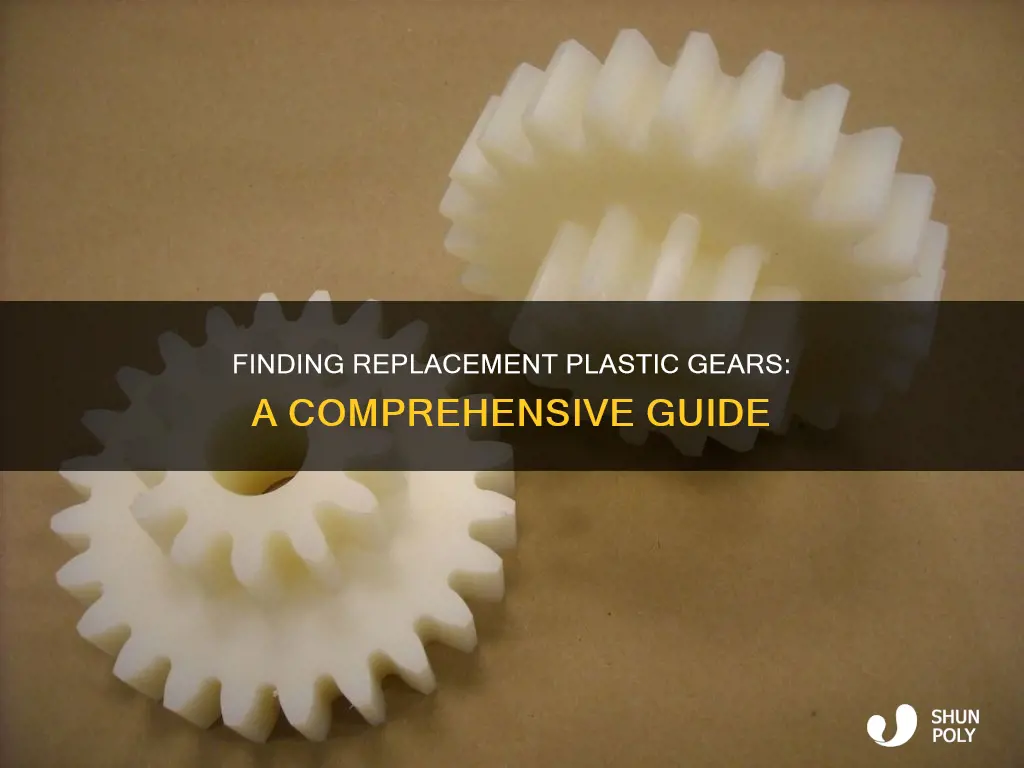

Plastic gears are a common component in various devices, from military devices to toys. They are extremely useful for producing quality goods, but they can break down. A common problem with plastic gears is the breakdown of their teeth, which can impact how a device operates. When a plastic gear breaks, finding a replacement can be challenging, especially if the equipment is older or custom-made. One solution is to use super glue or Gorilla Glue to glue the gear back together, and then use plastic or copper tubing to slip over the hub of the gear to reinforce it. Another option is to try and find someone to 3D print the gear, although this may be difficult if you don't have the exact specifications. There are also companies like Miller Plastics that offer custom-design and fabrication services for plastic gears.
| Characteristics | Values |
|---|---|
| Plastic gear replacement options | 3D printing, gluing, casting in resin, custom-designing |
| Common issues with plastic gears | Breakdown of teeth, warping |
| Plastic gear manufacturers | Miller Plastics, Miller Plastic Products |
| Plastic gear applications | Military devices, toys, production machines, food processing, conveyor systems |
| Plastic gear advantages | Corrosion-resistant, durable, quiet operation |
Explore related products
What You'll Learn
Repairing broken plastic gears with glue
Repairing broken plastic gears can be done in several ways using glue. One method is to use super glue or Gorilla Glue to glue the gear back together. Then, use either plastic or copper tubing with a 1/4" ID and slip it over the "hub" of the gear. This reinforces the plastic hub and reduces stress. Another method is to use epoxy resin, such as J-B Weld, to repair the gear. This method involves creating a mold and using a soldering iron to melt the resin into the gear's body. Additionally, you can use hot glue to form a temporary mold and cast a resin replacement with a metal reinforcement. Before applying any glue, ensure the gear is free from oil and dust by cleaning it with detergent soap or dishwashing liquid.
It is important to note that some adhesives, like liquid nails, may not hold up under torsion. Therefore, it is recommended to use stronger adhesives like epoxy or super glue for a more durable repair. When using epoxy, it is important to allow sufficient curing time. Additionally, consider reinforcing the repair with a washer or tubing to enhance the strength of the bond.
Plastic Plates: How Many Come in a Pack?
You may want to see also
Explore related products
Using 3D printing to replace plastic gears
3D printing replacement gears can be a cost-effective, efficient, and precise way to fix a broken or worn-out gear. It allows for the creation of a custom replacement part without the need for expensive tooling or long lead times for ordering a replacement from the manufacturer. This can be especially useful for older or discontinued equipment for which replacement parts are no longer available.
There are several materials that can be used for 3D printing replacement gears, each with its own advantages and disadvantages. For example, Nylon needs to be kept extremely dry and printed at high temperatures, making it suitable for those who are already comfortable with the material. ABS is a strong plastic but can be hard to print if your printer doesn't have an enclosure as it is prone to warping. PLA is easy to work with but can easily deform, making it ideal for high-torque applications.
When designing the gear, it is important to consider the thickness and the number of walls. Simply making the gear thicker will strengthen the teeth. A good general rule is for the thickness to be at least three to five times the circular pitch of the gear. Increasing the wall count will reinforce the outer profile of the gear more effectively than increasing the infill density.
Additionally, it is important to consider the post-processing steps that may be required. Printed gears often require some cleanup and boring of holes to the right size. Center hole shrinkage is a common issue, and it is recommended to export gear STLs with high segment counts to mitigate this.
For lubrication, it is important to note that oil cannot be used as it will seep through the layers and be absorbed by the plastic. Solid lubricants can be integrated into the plastic, such as in the case of iglidur® high-performance polymers, which offer increased service life and lower friction values.
Overall, 3D printing replacement plastic gears can be a viable option for those with access to a 3D printer and the knowledge to design and print the required part. It offers a cost-effective and customizable solution, but it is important to consider the material, design, and post-processing steps to ensure a successful outcome.
Timberland Boots: Plastic-Covered Laces, a Feature or Flaw?
You may want to see also
Explore related products
Finding replacement plastic gears for specific products
Plastic gears are a common component in various devices, from massagers to children's toys and even military devices. They are useful for producing quality goods, but they are susceptible to damage over time. The breakdown of gear teeth is a common problem, and missing or broken teeth can impact the functionality of the device. Warping can also occur as the gears strain against other parts, which can lead to a halt in operations. Therefore, regular inspections are necessary to prevent further damage.
When plastic gears break, finding a replacement can be challenging, especially for older or custom-made equipment. One option is to contact the manufacturer to see if they provide replacement parts. However, this may not always be possible, as some companies do not offer replacement parts for their products. In such cases, you may need to consider alternative solutions, such as repairing the broken gear or creating a custom replacement.
If you choose to repair the broken gear, you can try using super glue, Gorilla Glue, or epoxy to glue the gear back together. To reinforce the repair, you can use plastic or copper tubing with a 1/4" inner diameter and slip it over the "hub" of the gear, as suggested by several users on the Halloween Forum. This will reduce stress on the plastic hub and provide additional support. Another user suggests using two washers, one on each side of the gear, along with glue, to strengthen the repair.
If repairing the gear is not feasible or does not yield satisfactory results, you may want to explore creating a custom replacement. This can be done through 3D printing or by using a 3D model to create a mould and cast a new gear from resin. While this option may be more time-consuming and potentially error-prone, it can be a viable solution if you cannot source a direct replacement for your specific product. Services like Miller Plastics offer custom-design services for plastic gears, using 3D technology and reverse engineering to create precise duplicates.
The Plastic Tree Song: Exploring Its Meaning and Message
You may want to see also
Explore related products
Custom-designing plastic gears to fit specific machinery
Custom-designing plastic gears for specific machinery requires a deep understanding of gear design principles, advanced manufacturing techniques, and the ability to employ high-precision machining. The process is complex and involves multiple considerations to ensure the final product meets the required standards and fits the intended machinery.
Firstly, the selection of materials for plastic gears is crucial. Engineers must consider factors such as moisture absorption, impact strength, tensile strength, and cost. Nylon and acetal are commonly used resins due to their chemical resistance and low friction when meshed together. However, nylon's moisture absorption property must be managed by thoroughly drying the resin before molding to prevent brittleness.
The molding process for plastic gears offers engineers freedom in designing gear shapes and sizes. However, the inherent characteristics of plastics, such as uneven shrinkage, must be carefully addressed. This uneven shrinkage can occur in the circumferential direction and width direction, impacting the dimensional accuracy of the gear. To mitigate this issue, multiple mold sets can be used for incremental adjustments, ensuring the final product meets precision standards.
Additionally, the design of the gear teeth is critical. Plastic gear teeth deflect more than metal teeth under heavy loads, leading to misalignment. To compensate, the tooth profiles must be adjusted, and tip relief may be applied to create a "sled-runner" shape that guides the teeth into mesh smoothly.
When custom-designing plastic gears for specific machinery, it is essential to follow good molding practices. Radial ribs and spokes, commonly used for strengthening plastic parts, can cause uneven shrinkage and oblong gears. Instead, properly designed webs and rims can eliminate the need for support ribs.
Furthermore, designers should avoid simply replacing metal gears with plastic gears using the same design. Plastic gears have unique material properties and manufacturing processes that must be considered. For instance, weight-reduction holes can cause uneven shrinkage and create knit lines that weaken the gear.
To ensure the highest quality and precision, manufacturers of gear molds require detailed 3D designs. High-precision machining techniques, such as slow wire EDM and helical mirror finishing EDM, are employed to achieve the required accuracy.
In summary, custom-designing plastic gears to fit specific machinery involves a comprehensive understanding of gear design principles, material selection, molding practices, and the unique characteristics of plastics. By following these guidelines and utilizing advanced manufacturing techniques, engineers can create plastic gears that meet the required standards and seamlessly integrate with the intended machinery.
The Ultimate Guide to Covering Your Roof with 6ml Plastic
You may want to see also
Explore related products
Common issues with plastic gears and when to replace them
Plastic gears are used in a variety of devices, from toys to military equipment. They are favoured by manufacturers because they are cheap to produce, but they can wear down over time. Here are some common issues with plastic gears and some advice on when to replace them:
Wear and Tear
Plastic gears are constantly in motion, so they require more maintenance than other machine parts. Over time, the teeth of a plastic gear can break off, and the gear itself can warp, impacting the operation of the device. If you notice any missing or broken teeth, you should replace the gear immediately. Warping can also cause issues, so regular inspections are necessary to catch problems early on.
Odd Noises
If you hear rattling or grinding sounds coming from your device, it could be a sign that the plastic gears are in bad shape. Stop the device and check for damage. Odd noises can indicate that the gears are rubbing against each other, causing extra friction and potentially leading to a breakdown.
Bad Odours
Although unusual, bad smells can also indicate an issue with plastic gears. A burning odour, for example, could be a result of increased friction between the gears, creating an unpleasant smell.
Maintenance
To extend the lifespan of plastic gears, regular maintenance is required. It is recommended to clean plastic gears with isopropyl alcohol, which breaks down grime, dust, dirt, and grease. After cleaning, the gears should be lubricated with a suitable lubricant, such as petroleum-based mineral oil for average temperatures or a silicone-based lubricant for higher temperatures.
Replacement
When replacing plastic gears, it can be challenging to find exact matches, especially for custom-made gears. Some people choose to glue broken gears back together, reinforce them with tubing, or create latex moulds and cast replacements in resin. However, these fixes may not be long-lasting, and the cost of the materials may outweigh the cost of the device itself. It is important to consider the time and expense involved in repairing or replacing plastic gears before attempting any DIY solutions.
How Well Do Avery Labels Stick to Plastic?
You may want to see also
Frequently asked questions
Miller Plastics is a plastic gear manufacturer that provides custom-design and fabrication services for plastic gears. You can also try eBay, clock repair places, or China drop shippers/importers.
You should replace any plastic gears with missing or broken teeth as soon as you notice them. Sometimes the gear will warp as it strains against other parts of your device, which can lead to a halt in operations. It's important to regularly check for any warping or damage to prevent further issues.
Plastic gears are used in various devices and products, including military devices, toys, and production machines. They help create complex systems to control speed or force, similar to metal or wooden gears, but with different material properties.
Finding replacement plastic gears can be challenging, especially for older or custom-made equipment. The specific dimensions and shape of the gear, such as the number of teeth and the shape of the shaft, can make it difficult to find an exact match.
Yes, there are a few temporary solutions you can try if you can't find an exact replacement. You can attempt to glue the broken gear back together using super glue, Gorilla Glue, or epoxy. You can then reinforce it with plastic or copper tubing over the "hub" of the gear to reduce stress. Alternatively, you can try to cast a new gear using silicone or resin, but this may be more time-consuming and error-prone.
