Bending plastic is a fun and exciting process that can be done in a variety of ways. The most common method is heat bending, which involves using a heat source such as a heat gun, strip heater, or oven to heat the plastic until it becomes malleable, and then bending it to the desired shape. Different types of plastics have different optimal temperatures for bending, and it is important to avoid overheating the plastic, as this can cause it to decompose and release toxic fumes. Once the plastic has been bent, it needs to be cooled properly to hold its new shape. This process is widely used in manufacturing due to its low cost, simplicity, and versatility.
| Characteristics | Values |
|---|---|
| Required tools | Heat bender, strip heater, heat gun, oven |
| Plastic types | ABS, thermoplastics, acrylic, polystyrene, expanded PVC, PETG, polycarbonate |
| Plastic deformation | Plastic deformation is permanent, unlike elastic deformation, which returns to its original shape |
| Plastic thickness | Do not heat bend material more than 3/8 inches thick |
| Plastic temperature | Varies depending on the type of plastic, generally between 200-300°F |
| Heating time | 30 seconds to 10 minutes |
| Cooling process | Important to retain the shape and structural soundness of the plastic |
| Applications | Industrial, manufacturing, retail display, signage |
Explore related products
What You'll Learn
Choosing the right plastic
Type of Plastic
Different types of plastics have unique characteristics and behaviours when heated and cooled. Commonly used thermoplastics for heat bending include ABS, acrylic, polystyrene, expanded PVC, PETG, and polycarbonate. These materials soften when heated, allowing them to be bent, and harden when cooled, retaining the new shape. Consider the specific properties and requirements of the plastic type you choose.
Melting Point and Temperature Tolerance
Each type of plastic has a specific melting point, which is the maximum temperature it can withstand before degrading into a viscous state. Ensure you know the melting point of the plastic you choose and heat it within a safe temperature range. Some plastics, like imidized plastics, can handle extremely high temperatures, while others have a narrower temperature range.
Mechanical Properties
Consider the mechanical properties of the plastic, such as tensile strength, flexural modulus, and Izod impact. Tensile strength measures the plastic's resistance to being pulled apart, ensuring it retains its shape when stretched. Flexural modulus measures bending resistance, important for applications where the material needs to retain its shape and strength after bending. Izod impact measures the toughness of the material and how much force it can withstand before fracturing.
Chemical Resistance
If your project involves exposure to chemicals, choose a plastic with appropriate chemical resistance. For example, PVC, PEEK, and PTFE are known for their ability to withstand strong acids without damage. Evaluate the specific chemicals your project will encounter to select a compatible plastic.
Dimensional Stability
If maintaining specific dimensions is critical for your project, choose dimensionally stable plastics like acetal, PEEK, ULTEM™ polyetherimide, or PET. These plastics resist warping, shrinking, or bending under extreme conditions and can be heated and cooled without altering their shape, size, or dimensions.
Production Quantity and Complexity
Consider the scale and complexity of your production. Thermoforming, which uses heat and pressure to mould plastic sheets, is suitable for consistent bends and complex shapes but may be more expensive and limited to thinner sheets. Hot bending is ideal for shorter runs and thicker sheets, while cold bending provides the fastest lead times for thin sheets with wider radii.
Remember to always consult with plastic specialists and manufacturers to get specific recommendations based on your project goals and requirements.
How Plastic Tarps Help Dry Cordwood
You may want to see also
Explore related products

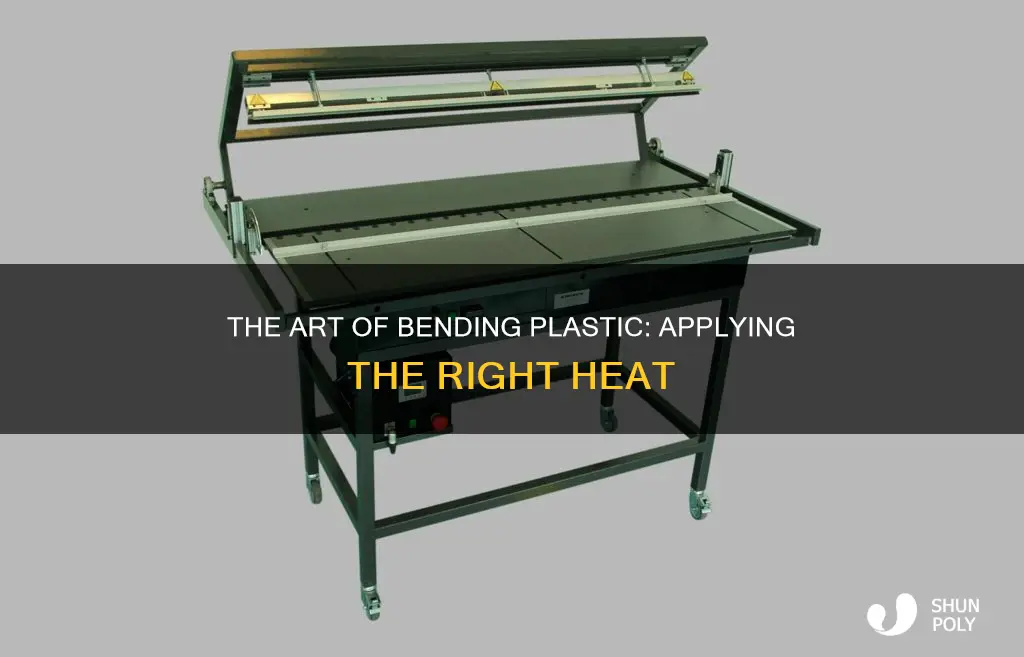

Using a heat bender
Bending plastic can be fun and exciting. All you need is plastic and a heat bender. If you are using a heat strip bender, you should always do a test to make sure your plastic can be heated and formed. Some plastics, like polycarbonate, will show black specs when heated, and these will not go away. It is also not recommended to heat bend material that is more than 3/8 inches thick.
When handling sheet plastic, it is best to keep the protective film on it for as long as possible to avoid scratches. However, because you will be applying thermal energy to the plastic, you must remove the film. If you do not remove the film, it will melt onto your plastic and will be nearly impossible to remove. Remove the film only along the area you will heat bend so that the rest of the plastic stays in good shape.
Use a sharp knife to carefully mark the areas you want to bend with a light scratch. This scratch can be buffed out or will normally just melt back into the plastic during the heat bending process. Place your plastic on the heat bender. You will be able to see the plastic distort from the heat buildup. This can take anywhere from 10 minutes when your machine is first heating up to 30 seconds when your machine is nice and hot. Stay in the room and watch your plastic. If you don't, you could burn it, which will cause it to bubble and turn black, at which point your plastic will be as good as scrap. You can test your plastic to see if it is malleable. Once it is easy to bend, you have found the right spot.
The typical forming temperature range of most acrylic sheet plastics is 275°F to 350°F (135°C to 177°C). A consistent and controlled heat source is necessary so that the bends are smooth and the finished parts are aesthetically pleasing.
Sticking Vinyl Stickers on Plastic: A Good Idea?
You may want to see also
Explore related products
Heating with a hairdryer
It is possible to bend plastic with a hairdryer, but it is not recommended. The process involves heating the hairdryer to a high temperature to heat the plastic, making it malleable, and then stretching and levelling it. However, there are several challenges and risks associated with using a hairdryer for this purpose.
Firstly, it is important to recognise that different types of plastic have different melting points and behaviours when heated. For example, CVP (copper polyvinyl chloride) is the most rigid plastic available, while PVC (polyvinyl chloride) is the most flexible and can withstand high temperatures. Therefore, it is crucial to know the type of plastic you are working with and its melting point to avoid overheating and potential discolouration or damage.
Secondly, hairdryers may not generate sufficient heat to effectively bend certain plastics, especially thicker or more rigid materials. Acrylic sheets, for instance, require higher temperatures to become soft enough for bending, and the diffuse nature of the heat from a hairdryer can make it difficult to uniformly heat the material. This can result in uneven bending or the plastic not softening enough.
Additionally, it is essential to exercise extreme caution when using a hairdryer on plastic. Plastic does not melt completely but changes colour when heated. The hot air from the hairdryer can cause the plastic to soften and bend, even if you do not intend to heat it. If overheated, the plastic may become too hot to handle and crack or fracture. This poses a safety risk and could result in damaged belongings or injuries.
To effectively bend plastic with a hairdryer, it is recommended to start with clean, dry plastic. Hold the hairdryer at least 6 inches away from the plastic and gradually heat the entire area you wish to bend. Ensure the heat is distributed evenly to avoid hotspots and potential warping. Once the plastic is pliable, carefully bend it to the desired shape. It is crucial to work slowly and cautiously to avoid overheating the plastic or burning yourself. Allow the plastic to cool completely before handling it further.
While bending plastic with a hairdryer is possible, it is important to prioritise safety and be mindful of the challenges and risks involved.
Understanding Synaptic Plasticity: Donald Hebb's Legacy
You may want to see also
Explore related products
Oven heating
To get started, preheat your oven with a cookie sheet placed on the middle rack. Covering the cookie sheet with foil or paper is optional but may be appreciated by some. Set the oven to a temperature of around 225°F to start. If you are working with ABS plastic, you may need to increase the temperature to somewhere between 325°F and 375°F. Be aware that ABS plastic begins to decompose rapidly past 300°F, releasing toxic fumes, so take great care not to exceed this temperature.
Once the oven is preheated, place the plastic face-up on the cookie sheet. If you are trying to achieve a very specific shape, you can put something smooth and heavy that is the right shape in the oven alongside the plastic. You should then leave the plastic in the oven for around 20 minutes before attempting to bend it. If the plastic still won't bend after this time, increase the temperature by 5 degrees and try again. Keep repeating this process in small increments until the plastic becomes bendable.
When the plastic reaches the optimal temperature, it will not appear mushy or saggy, but you will be able to bend it easily. If you feel that you might break the plastic, it is not hot enough. Once the plastic is bendable, work quickly as the prime "formability" window is only 60 to 90 seconds before the plastic will start to harden again.
Applying Plastic Baseboard Trim: A Simple DIY Guide
You may want to see also
Explore related products
Cooling processes
The cooling process is a critical stage in bending plastic. It ensures the plastic retains its new shape and is structurally sound. The plastic must be allowed to cool down gradually and evenly to prevent warping, cracking, or rippling. This process can be aided by custom jigs and formers, which hold the plastic in its new shape until it is cool.
The cooling process is equally important as the heating and bending stages, as it ensures the plastic reaches its optimal structure and retains its features. Different plastics have different cooling requirements, and ambient humidity can also impact the cooling process. For example, ABS plastic should be allowed to cool fully before being released from its jig or mould to prevent warping.
The plastic must be carefully monitored during the cooling process. Insufficient clamping or non-uniform cooling can cause stress that results in ripples or deformations. The plastic should be allowed to cool completely before further handling, and minor post-shaping corrections can be made to achieve a perfectly smooth finish.
The cooling process is a critical stage in ensuring the success of the bending project. It requires patience and attention to detail, as the plastic is still vulnerable to imperfections until it is fully cooled and set.
Plastic Retainers and MRI: Safe or Not?
You may want to see also
Frequently asked questions
You can use a strip heater, heat gun, or oven. A strip heater is a heated bending strip that directs heat to specific spots. A heat gun shoots a stream of hot air to evenly and quickly heat the plastic. An oven is best for larger pieces of plastic.
Most types of plastic can be heat bent, including thermoplastics like acrylic, polystyrene, expanded PVC, PETG, and polycarbonate.
This depends on the type of plastic. ABS plastic needs to be heated past its glass transition temperature, which is around 200-220°F (93-105°C). Some plastics will decompose rapidly if heated past a certain temperature, for example, ABS plastic decomposes past 300°F.
You will be able to see the plastic distort from the heat build-up. You can also test if it is malleable by trying to bend it.
After bending, place the plastic into an adjustable angle setter or a pre-made mould to cool. You can also use custom jigs and formers to hold the plastic in its new shape until it cools.
