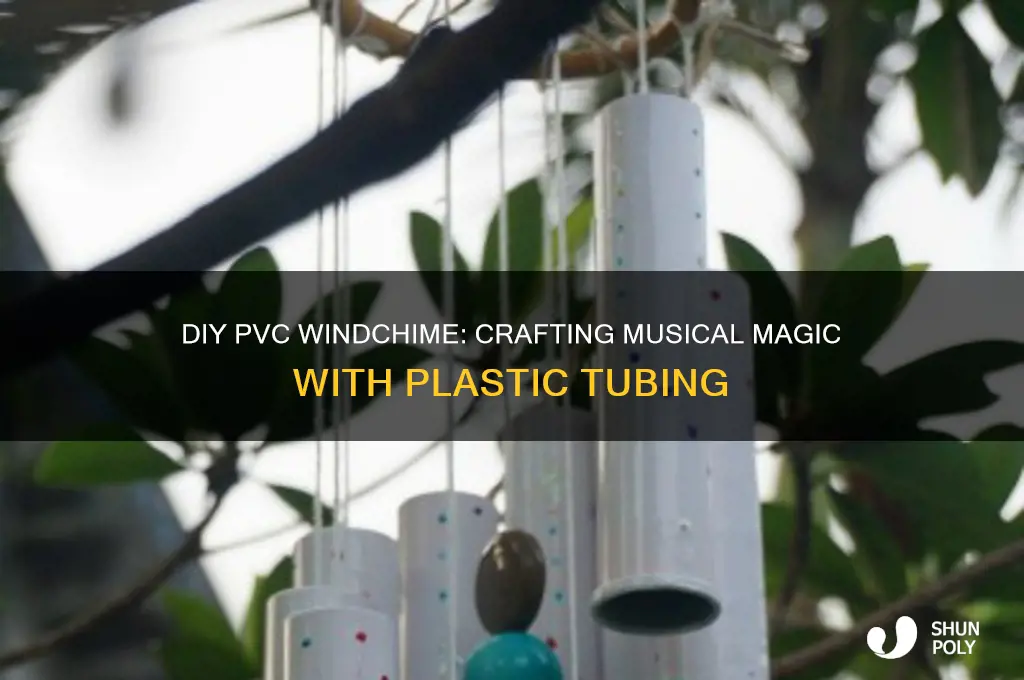

Creating a windchime out of PVC plastic tubing is a fun and eco-friendly DIY project that combines creativity with functionality. By repurposing PVC pipes, you can craft a unique, durable windchime that produces soothing sounds while adding a decorative touch to your outdoor space. This project requires basic tools and materials, such as PVC tubing, a drill, string or wire, and optional decorations like beads or paint. With simple steps like cutting the tubing into varying lengths, drilling holes for hanging, and assembling the pieces, you can customize your windchime to suit your style and space. Whether you're a beginner or an experienced crafter, this project is accessible, affordable, and rewarding, making it a great way to enjoy both the process and the final result.
| Characteristics | Values |
|---|---|
| Materials Needed | PVC plastic tubing, string/nylon cord, beads, drill, scissors, glue, clapper (optional) |
| Tubing Length | Varies (e.g., 6-12 inches per tube, depending on desired size) |
| Tubing Diameter | Typically 1/2 inch to 1 inch |
| Number of Tubes | 4-8 tubes for a standard windchime |
| Drill Bit Size | Slightly larger than the string/cord diameter (e.g., 1/8 inch) |
| Hanging Mechanism | Central hanger made from PVC or metal, with strings attached to tubes |
| Clapper (Optional) | Small piece of PVC or metal to strike tubes for sound |
| Decorative Elements | Paint, markers, beads, or other embellishments |
| Assembly Time | 1-2 hours |
| Skill Level | Beginner-friendly |
| Cost | Low-cost (approx. $10-$20 depending on materials) |
| Durability | Weather-resistant if sealed properly |
| Sound Quality | Depends on tube length and thickness; shorter tubes produce higher pitches |
| Customization | Highly customizable in size, color, and design |
| Tools Required | Drill, scissors, measuring tape, sandpaper (optional) |
| Safety Tips | Wear safety goggles when drilling; ensure sharp edges are smoothed |
Explore related products
What You'll Learn
- Gather Materials: PVC tubing, cutter, drill, string, beads, measuring tape, sandpaper, and paint
- Cut Tubing: Measure and cut PVC into varying lengths for desired sound frequencies
- Smooth Edges: Sand cut ends to remove burrs and ensure safe handling
- Drill Holes: Create holes for stringing and hanging the chime pieces securely
- Assemble Chime: Thread string through beads and tubing, tie knots, and hang
Gather Materials: PVC tubing, cutter, drill, string, beads, measuring tape, sandpaper, and paint
Creating a windchime from PVC tubing begins with assembling the right materials, each playing a critical role in the final product’s durability and aesthetic. PVC tubing, the backbone of your windchime, should be chosen based on diameter and length—typically ½ to 1 inch in diameter and cut into 6- to 12-inch segments for optimal sound resonance. A PVC cutter or fine-toothed saw ensures clean, precise cuts, preventing jagged edges that could compromise the structure. Sandpaper, preferably medium-grit (120-150), smooths these edges and prepares surfaces for painting, reducing the risk of splinters during handling.
Next, consider the tools that transform raw materials into functional components. A drill with a ⅛-inch bit is essential for creating holes in the PVC tubing, allowing string to pass through securely. Measuring tape isn’t just for sizing tubing—it’s crucial for marking consistent hole placements, ensuring balance and symmetry in the windchime’s design. String or nylon cord, selected for its weather resistance, should be strong enough to support the weight of the tubing and decorative beads without stretching or breaking over time.
Beads and paint elevate the windchime from utilitarian to decorative. Beads, whether glass, wood, or plastic, add visual interest and subtle clinking sounds when struck by the PVC tubes. Choose beads with holes large enough to accommodate your string, and consider their weight—heavier beads may require sturdier cord. Paint, ideally outdoor-rated acrylic or spray paint, allows customization of the PVC tubing to match your style or outdoor decor. Opt for light coats to avoid drips, and allow ample drying time between layers.
Finally, approach material selection with practicality and creativity. While PVC tubing is lightweight and affordable, its rigidity requires careful handling during cutting and drilling. String should be pre-cut into lengths that account for knots and bead spacing, typically 12–18 inches per strand. Sandpaper and paint not only refine the windchime’s appearance but also protect PVC from UV damage and weathering. By thoughtfully gathering and preparing these materials, you lay the foundation for a windchime that’s both functional and uniquely yours.
Creative Recycling: Crafting a Pencil from a Plastic Cup
You may want to see also
Explore related products
Cut Tubing: Measure and cut PVC into varying lengths for desired sound frequencies
The length of your PVC tubes directly influences the pitch of your wind chime. Longer tubes produce lower frequencies, while shorter tubes create higher-pitched sounds. This principle, rooted in physics, allows you to craft a wind chime with a specific musical range.
To achieve your desired sound, start by determining the lowest and highest notes you want. Online calculators or musical scales can guide you. For example, a common pentatonic scale (C-D-E-G-A) offers a pleasing, harmonious sequence. Once you’ve identified your target frequencies, use a formula like L = (speed of sound) / (2 * frequency) to calculate the tube length. Remember, this formula assumes closed-end tubes, which are typical for PVC wind chimes.
Precision is key when cutting PVC. Use a fine-toothed hacksaw or PVC cutter for clean, straight edges. Measure twice, cut once—a small error in length can significantly alter the pitch. Sand the cut edges to remove burrs, ensuring a smooth finish that won’t interfere with sound vibration.
Experimentation is part of the process. If a tube’s pitch isn’t quite right, trim it slightly and test again. Keep in mind that factors like tube diameter and wall thickness also affect sound, though length is the primary variable. For a richer, more complex tone, consider varying the diameters of your tubes while maintaining the length-to-frequency relationship.
By carefully measuring and cutting your PVC tubes, you’re not just crafting a wind chime—you’re engineering a musical instrument. This step transforms raw materials into a harmonious addition to your outdoor space, blending science and creativity in every note.
Does Plastic Clothing Increase Sweating? Uncovering the Truth Behind Synthetic Fabrics
You may want to see also
Explore related products
Smooth Edges: Sand cut ends to remove burrs and ensure safe handling
After cutting PVC tubing for your windchime, the ends will likely have sharp burrs—tiny, jagged ridges left by the saw blade. These burrs aren't just unsightly; they're a safety hazard. A single brush against exposed skin can lead to cuts or splinters, especially during assembly or when handling the finished piece. Sanding these edges smooth is a critical step, transforming rough cuts into safe, polished surfaces ready for further decoration or assembly.
To effectively sand PVC tubing ends, start with medium-grit sandpaper (120-150 grit). This coarser grit quickly removes the bulk of the burr without excessive effort. Wrap the sandpaper around the tube end, securing it with a rubber band or holding it firmly in place. Rotate the tube while applying even pressure, working the sandpaper back and forth across the cut edge. Aim for a uniform, rounded profile, ensuring no sharp points remain. Follow this with fine-grit sandpaper (220 grit or higher) to achieve a smoother finish, ideal if the windchime will be handled frequently or by children.
While sanding, prioritize safety. Wear a dust mask to avoid inhaling PVC particles, which can irritate the respiratory system. Work in a well-ventilated area or outdoors to minimize dust accumulation. For larger projects or multiple tubes, consider using a power sander with a drum attachment, but exercise caution to avoid overheating the plastic. Always inspect the sanded edges by running a gloved finger along the surface—any lingering roughness means more sanding is needed.
Beyond safety, smooth edges enhance the windchime's aesthetic appeal. Burrs can catch light unevenly, creating visual distractions, while a polished edge allows paint, sealant, or decorative elements to adhere more evenly. For a professional finish, lightly buff the sanded ends with a cloth to remove any residual dust before proceeding. This attention to detail ensures your PVC windchime not only sounds beautiful but also looks and feels well-crafted.
Crafting Plastic Molds in The Escapists: A Step-by-Step Guide
You may want to see also
Explore related products
Drill Holes: Create holes for stringing and hanging the chime pieces securely
Drilling holes in PVC tubing is a critical step in creating a windchime, as it determines how securely the chime pieces hang and how freely they move to produce sound. The placement and size of these holes directly impact the windchime’s durability and functionality. Use a drill bit slightly larger than your hanging string or wire—typically ⅛ to ¼ inch—to ensure a snug fit without splitting the plastic. Mark the hole positions evenly along the tubing’s length, keeping them aligned vertically for a balanced appearance and consistent movement in the wind.
Analyzing the drilling process reveals common pitfalls to avoid. Applying too much pressure while drilling can cause the PVC to crack, especially near the ends where the material is thinner. To prevent this, secure the tubing in a vise or clamp it to a stable surface, and drill slowly with steady, even force. For longer chime pieces, consider reinforcing the hole edges with a small bead of epoxy or super glue after drilling to prevent fraying over time. This extra step adds longevity, particularly for windchimes exposed to harsh weather conditions.
Persuasively, investing time in precise hole placement pays off in both aesthetics and performance. Unevenly spaced or misaligned holes result in a windchime that looks haphazard and may tangle or fail to produce harmonious sounds. Use a ruler or measuring tape to ensure consistent spacing, typically 1 to 2 inches apart, depending on the tubing’s diameter. For a professional finish, lightly sand the drilled edges to remove burrs, which can snag the string or detract from the windchime’s visual appeal.
Comparatively, while some DIY enthusiasts opt for pre-cut PVC tubing with holes already included, drilling your own allows for customization and creativity. Pre-cut options often lack the flexibility to adjust hole size or spacing, limiting design possibilities. By drilling your own holes, you can experiment with asymmetrical patterns, varying chime lengths, or even incorporating additional decorative elements like beads or small bells. This hands-on approach transforms a simple project into a personalized piece of outdoor art.
Descriptively, the act of drilling holes in PVC tubing is a tactile and satisfying process. The whir of the drill, the clean penetration of the bit, and the reveal of smooth, circular openings all contribute to a sense of progress. As each hole is completed, the tubing begins to take on its new purpose, transitioning from a rigid pipe to a component of a melodic windchime. This step bridges the gap between raw materials and functional art, turning a mundane task into a meaningful part of the creative journey.
DIY Guide: Crafting Plastic Flat Washers at Home Easily
You may want to see also
Explore related products
Assemble Chime: Thread string through beads and tubing, tie knots, and hang
Threading string through beads and PVC tubing is the heart of assembling a wind chime, transforming simple materials into a harmonious instrument. Begin by selecting a durable string, such as nylon or hemp cord, capable of withstanding outdoor conditions. Cut the string to your desired length, adding extra inches for tying knots and hanging. Slide beads onto the string in a pattern that complements your design—alternating colors, sizes, or shapes can create visual interest. Insert the strung beads into the PVC tubing, ensuring they fit snugly but move freely to produce sound when struck. This step marries aesthetics with functionality, as the beads not only add charm but also enhance the chime’s acoustic qualities.
The art of tying knots is crucial for securing the chime’s structure. After threading the beads and tubing, create a double knot at the bottom to prevent the beads from slipping off. For added stability, apply a small dab of clear glue to the knot before tightening it. At the top of the string, tie a loop large enough to accommodate a hook or hanging mechanism. Ensure the knot is tight and reinforced, as it will bear the weight of the entire chime. A poorly tied knot can lead to unraveling, so test its strength by gently tugging before hanging. This meticulous approach guarantees longevity, even in windy conditions.
Hanging the wind chime is the final step, but its placement significantly impacts its performance. Choose a location where wind flows freely, such as a porch, garden, or near an open window. Use a sturdy hook or S-shaped hanger to suspend the chime, ensuring it’s secure enough to withstand gusts. For a cohesive look, consider painting the hook to match the PVC tubing or beads. If hanging multiple chimes, space them evenly to allow each one to sway independently. Proper placement not only maximizes the chime’s auditory appeal but also turns it into a captivating visual element in your outdoor space.
A practical tip for enhancing the chime’s sound is to experiment with tubing lengths. Cut the PVC tubes into varying lengths to produce a range of tones—shorter tubes create higher pitches, while longer ones yield deeper sounds. Pairing this technique with bead placement inside the tubes can further refine the chime’s melody. For families, this step offers an educational opportunity: involve children in measuring and cutting the tubing, teaching them about sound frequencies in a hands-on way. By combining precision with creativity, you craft not just a wind chime but a personalized instrument that resonates with your style and environment.
Crafting Nylon Plastic: A Step-by-Step DIY Production Guide
You may want to see also
Frequently asked questions
You will need PVC tubing (various lengths), a PVC end cap, nylon string or fishing line, a drill with small bits, beads or decorative items, and a hanging hook or ring.
Measure and mark the PVC tubing to your desired lengths, ensuring each piece is slightly shorter than the last for a graduated effect. Use a fine-toothed saw or PVC cutter to make clean, straight cuts.
Drill a small hole near the top of each PVC tube. Thread nylon string or fishing line through the holes and tie securely. Attach all tubes to a central hanging hook or ring, spacing them evenly.
Yes! Drill additional holes along the tubes and thread beads, shells, or other lightweight decorative items. You can also paint the PVC tubes with outdoor-safe paint for added color.
Experiment with tube lengths and thicknesses to achieve different tones. Thinner tubes produce higher pitches, while thicker ones create deeper sounds. Ensure the tubes are free to move independently for the best sound.
