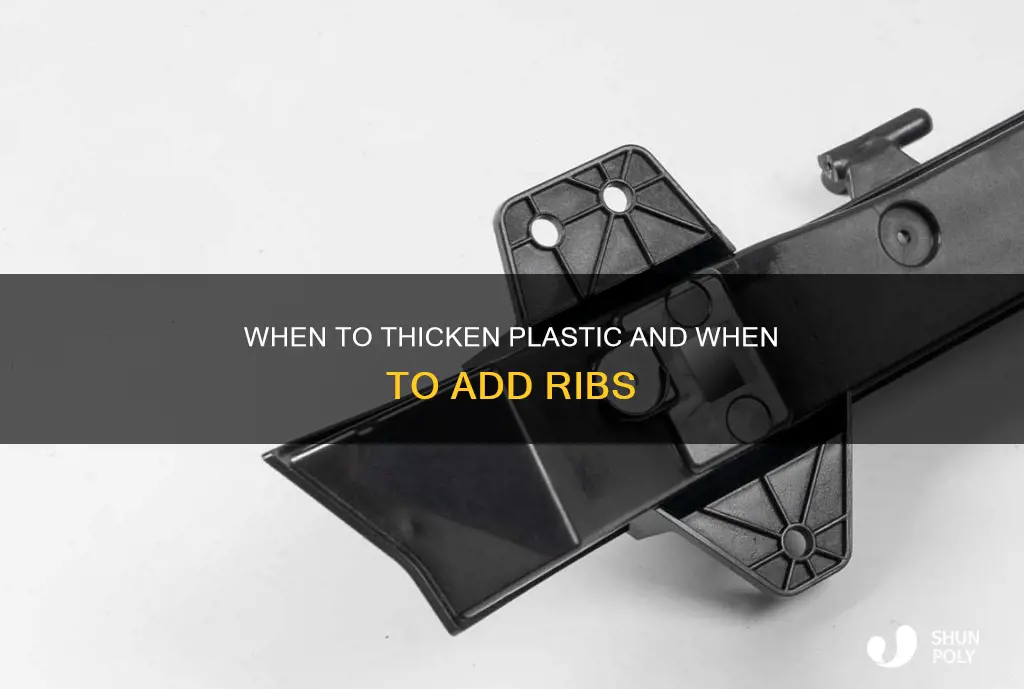

When designing plastic parts, it is important to consider whether to thicken the plastic or add ribs for reinforcement. Adding ribs is a common way to strengthen plastic parts without increasing wall thickness. Ribs are thin protrusions that extend perpendicularly from a wall or plane to provide added stiffness and strength. They can also prevent defects and non-fill risks. However, too many ribs can prolong cycle time, increase ejection risks, and increase material usage. On the other hand, thickening plastic walls can lead to warpage, sinking, and other defects. Therefore, designers must carefully consider the placement and number of ribs or the thickness of the plastic to optimize the strength and functionality of the part while minimizing these drawbacks.
Explore related products
What You'll Learn
Ribs can improve strength and function, and prevent defects
Ribs are thin protrusions that extend perpendicularly from a wall or plane to provide added stiffness and strength. They can improve the strength and function of a part and prevent defects.
Ribs are added to a design to increase strength without increasing wall thickness. This is important because walls that are too thick are subject to warpage, sinking, and other defects. Ribs can also be used to add functionality to a part, creating functional features that simplify the design and mitigate molding risk.
To prevent defects, the base of a rib should be rounded with a minimum radius of 0.010 inches to avoid areas of concentrated stress, which can result in quick wearing of the product. The ideal rib thickness is 105 to 0.75 times the wall thickness of the plastic product. The height of the ribs should not exceed three times the nominal wall thickness, and they should be spaced at least two to three times the nominal wall thickness apart.
Ribs can also be used to prevent non-fill risks by acting as flow leaders in thin sections or high-pressure areas, relieving pressure and allowing plastic to flow. This helps to fill the injection mold cavity and ensure successful molding.
Plastic in Our Food: Is It Real?
You may want to see also
Explore related products
Ribs are more cost-effective than thickening plastic
When designing plastic parts, adding ribs is a more cost-effective solution than thickening the plastic. Ribs are thin protrusions that extend perpendicularly from a wall or plane to provide added stiffness and strength. By incorporating ribs, designers can increase the strength of a part without increasing the thickness of its walls. This means that less material is required, resulting in cost savings.
One of the main advantages of using ribs is that they help to avoid warpage, sinking, and other defects that can occur when walls are too thick. Thick walls can also lead to increased cycle time, higher ejection risks, and increased material usage. Ribs, on the other hand, can be strategically placed only where necessary to provide structural support, minimizing these drawbacks. Additionally, ribs can act as flow leaders in thin sections or high-pressure areas, relieving pressure and allowing plastic to flow more easily.
Another benefit of ribs is their ability to prevent aesthetic defects. Sharp corners in plastic parts can result in high-stress formation, reducing the part's strength and causing quick wear. Ribs, with their rounded bases, help to distribute stress more evenly, improving the overall appearance of the final product. Furthermore, ribs can simplify the design process by creating functional features instead of more complex child features.
While adding ribs can increase the cost of the part due to longer cycle times, this can be mitigated by strategic placement and proper spacing. Ribs that are too close together can create cooling issues and increase the risk of sinking. However, by maintaining a minimum distance of 2 to 3 times the nominal wall thickness between ribs, these issues can be avoided. Additionally, the height of the ribs should be kept as short as possible to prevent damage during usage or ejection from the mold.
In conclusion, when considering the trade-offs between strengthening a plastic part by thickening the plastic or adding ribs, ribs provide a more cost-effective solution. They increase strength without thickening walls, use less material, prevent defects, simplify the design process, and improve the overall function of the part. By following design guidelines and strategically placing ribs, manufacturers can create high-quality, cost-efficient plastic parts.
Assembling a Plastic Dog Crate: A Step-by-Step Guide
You may want to see also
Explore related products
Rib placement, orientation, and spacing are critical
The orientation of ribs is also critical to their effectiveness. Ribs are thin protrusions that extend perpendicularly from a wall or plane to provide added stiffness and strength. The position and orientation of a rib relative to load and reaction forces are critical to the rib's effectiveness. The orientation of the rib can be manipulated to improve bending stiffness.
Rib spacing is another important consideration. Ribs should be spaced a minimum of two to three times the nominal wall thickness apart from each other. Ribs that are placed too close together can create cooling issues, prolong cycle times, increase ejection risks, and increase material usage.
Plastic Pollution: Degradation of Our Environment
You may want to see also
Explore related products
Ribs should be short and rounded to prevent damage
Ribs play a valuable role in strengthening plastic parts. They are thin protrusions that extend perpendicularly from a wall or plane to provide added stiffness and
However, ribs must be designed carefully to prevent damage. The position and orientation of a rib relative to load and reaction forces are critical to its effectiveness. Ribs should be placed where the part needs strength or function. For example, they can be added along thin sections and long, flat sections to add structure and strength.
To prevent damage, ribs should be short and rounded. Tall ribs might break during usage or ejection from the mold. The ideal rib thickness should be 105 to 0.75 times the wall thickness of the plastic product. The base of the rib should be rounded with a minimum radius of 0.010 inches to avoid concentrated stress, which can lead to quick wearing of the product.
Additionally, the number and placement of ribs are important. Ribs should be placed a minimum of two to three times the nominal wall thickness apart to avoid cooling issues and thin steel conditions. If more strength is needed, it is better to increase the number of reinforcing ribs rather than their height. This will also help prevent voids from forming, as the plastic may not be able to reach the tip of a tall rib.
Overall, short and rounded ribs are key to preventing damage in plastic parts. By following these guidelines, designers can effectively use ribs to increase strength and function while maintaining the integrity of their products.
Plastic's Impact: Devastating Effects on Sea Wildlife
You may want to see also
Explore related products
Ribs can be added at three stages of design
Initial Design
At the initial design stage, it is crucial to consider areas of flatness and user stress for rib placement. Long, flat stretches of material in plastic parts can pose strength and structure issues due to a lack of support. Ribs can be added to these areas to enhance strength and functionality. It is important to place ribs strategically where they are needed to provide structural support while minimizing cycle times, ejection risks, and material usage. The position and orientation of ribs relative to load and reaction forces are critical to their effectiveness.
Post Moldflow
After the initial design, Moldflow simulation helps visualize how molten plastic will flow through and fill the mold. This allows designers to identify risk areas of plastic fill and make necessary adjustments. Ribs can be added or removed based on the simulation results to optimize the design. In thick areas with non-uniform shrink, coring out can reduce the risk of sink, while in thin or high-pressure areas with non-fill issues, adding ribs can reduce these risks.
Post Molding
Once the parts are molded, any defects or issues can inform where the addition or modification of ribs may be beneficial. For instance, if warpage is observed, adding ribs can help mitigate this issue. If sink marks are present under existing ribs, modifying or removing those ribs may be necessary. Adding ribs at this stage is a steel-safe change, as it is relatively easy to modify existing molds to incorporate additional ribs.
Smoking Headlamps: Plastic Points Technique
You may want to see also
Frequently asked questions
Ribs are thin protrusions that extend perpendicular from a wall or plane to provide added stiffness and strength. They can also prevent aesthetic defects and non-fill risks.
Walls that are too thick are subject to warpage, sinking, and other defects. Thickening plastic parts can also lead to increased cycle time and higher costs.
Ribs increase the strength of a part without increasing the thickness of its walls. Because less material is required, ribs can be a much more cost-effective solution.
The position and orientation of a rib relative to load and reaction forces are critical to its effectiveness. Ribs should be placed where the part needs strength or function, such as along thin sections and long, flat sections. The base of a rib should be rounded to prevent areas of concentrated stress.
