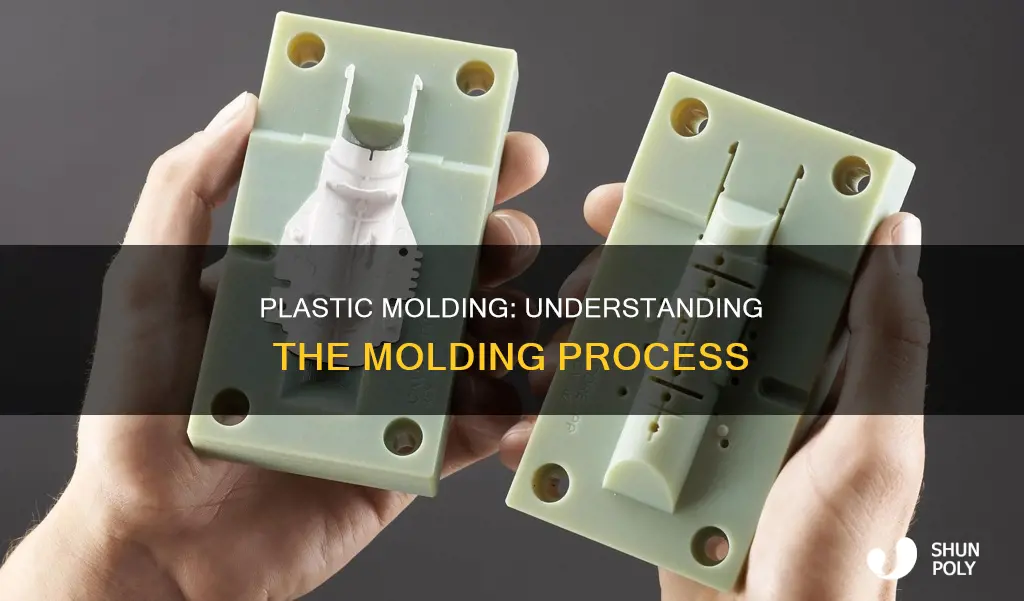

Plastic moulding is an industrial process that uses injection moulding to create accurate plastic components. It is a cost-effective and efficient method that allows for the creation of complex shapes suitable for various applications. The process involves placing a powder or liquid polymer into a hollow mould, which takes on the shape of the mould cavity. Different types of moulding processes exist, such as injection moulding, blow moulding, compression moulding, extrusion, and rotational moulding, each offering unique advantages and catering to diverse industry needs. Plastic moulding is used in a wide range of applications, from automotive body parts to healthcare components, making it a versatile and essential process in modern manufacturing.
| Characteristics | Values |
|---|---|
| Definition | A tool used in the plastic processing industry to give plastic products a complete shape and precise size |
| Process | A powder or liquid polymer is placed into a hollow mold so it can take its shape |
| Types | Injection molding, blow molding, compression molding, extrusion molding, rotational molding, thermoforming |
| Materials | Steel, aluminum, thermoplastic, thermosetting resins, fiberglass, reinforced plastics |
| Applications | Automotive parts, medical devices, consumer electronic devices, packaging, household appliances, clothing fasteners, body armor |
| Functions | Contain melt, transfer heat, expel molded parts, resist forces, direct polymer melt, cool |
Explore related products
What You'll Learn
Injection molding
Injection moulding is a manufacturing process used to produce parts by injecting molten material into a mould or mold. The process can be performed with various materials, including metals, glasses, elastomers, confections, and commonly thermoplastic and thermosetting polymers. The material is fed into a heated barrel, mixed using a helical screw, and then injected into a mould cavity, where it cools and hardens, taking the shape of the cavity.
Injection moulding is widely used for manufacturing a variety of parts, from small components to large body panels for cars. The process is valued for its ability to produce consistent, high-quality parts at a low cost, especially when created in high volumes for mass production. The moulds themselves are typically made of steel or aluminium, chosen for their hardness, heat transfer capabilities, and durability.
The injection moulding cycle involves numerous parameters that must be tightly controlled to ensure the quality of the final product. Manufacturers must carefully select the appropriate thermoplastics and moulds, considering their interaction and compatibility. Each mould tool consists of two parts: the fixed mould cavity and the moving core, which fits into the cavity to help form the final shape.
Injection moulding has been used since the 19th century, with the first patent for injection moulding of candles granted in 1834. The process has evolved over time, and today's machines are more complex, capable of producing a wide range of products with precision and efficiency.
Like any industrial process, injection moulding is susceptible to flaws and defects. Troubleshooting involves examining defective parts, addressing issues with mould design, and optimising the process parameters. Methods such as industrial CT scanning can help identify defects, and reinforcement learning methods have been introduced to improve efficiency and support self-adjusting moulding systems.
The Evolution of Cher's Look: Multiple Plastic Surgeries
You may want to see also
Explore related products
Blow molding
The first non-glass blow molding material was natural rubber, with the process for molding hollow rubber products patented by Samuel Armstrong in the 1850s. The true transformation in plastic blow molding occurred in the 20th century, with the first plastic blow molding machine introduced in the 1930s. This machine utilized cellulose acetate as a raw material and marked the genesis of commercial plastic blow molding. In 1938, Enoch Ferngren and William Kopitke produced a blow molding machine, selling it to the Hartford Empire Company. A pivotal moment came in 1939 when Imperial Chemical Industries (ICI) from England developed low-density polyethylene (LDPE), a thermoplastic polymer known for its flexibility and strength. LDPE's suitability for extrusion blow molding accelerated the adoption of the process in the plastics industry.
By the 1950s, blow molding machines were extensively used for manufacturing hollow plastic containers, bottles, automotive components, and industrial packaging. Today, blow molding remains a fundamental plastics processing method used worldwide to produce a wide range of items. Common applications include custom plastic bottles, containers for food and beverages, industrial drums, automotive parts, medical device housings, and consumer packaging. Blow molding is particularly useful in the production of pharmaceutical packaging, providing barrier properties and flexibility in packaging design.
The three main types of blow molding are extrusion blow molding, injection blow molding, and stretch blow molding. The process begins with softening plastic by heating a preform or parison, which is a tube-like piece of plastic with a hole for compressed air to enter. The plastic workpiece is then clamped into a mold, and air is blown into it. The air pressure inflates the plastic, which conforms to the mold. Once the plastic has cooled and hardened, the mold opens, and the part is ejected. Water channels within the mold assist with cooling.
Reducing Plastic Waste: Are Our Efforts Making a Difference?
You may want to see also
Explore related products
Compression molding
The molding material is generally preheated and can be in the form of granules, putty-like masses, or preforms. During the process, the material is placed in an open, heated mold cavity, and pressure is applied to force it into contact with all mold areas. The use of thermoset plastic compounds characterizes compression molding from other processes. These thermosets can be in preform or granule shapes, and inserts, usually metallic, can also be molded with the plastic.
Why Use Plastic Screw Covers?
You may want to see also
Explore related products
Plastic mold types and structures
Plastic moulding is a process used to create plastic products. It involves placing liquid or pliable material into a rigid frame or mould cavity to form a particular shape. Different types of plastic moulding suit diverse industry needs, each with unique features and benefits.
There are six main types of plastic manufacturing:
Thermoforming
Thermoforming involves heating a large sheet of plastic until it is soft and flexible, then stretching it over a single-sided, custom mould. Vacuum pressure or compressed air presses the thermoplastic tightly against the mould, creating the desired shape.
Injection moulding
Injection moulding is one of the most versatile and popular moulding processes due to its ability to create parts of varying shapes and sizes. This process involves injecting molten plastic resin into a metal mould at high pressure. The mould is then cooled and the plastic ejected.
Blow moulding
Blow moulding is the process of making hollow, thin-walled plastic parts. This process involves heating plastic and injecting air into the hot plastic until it expands to fill the mould and create the required shape. This method is often used when the shape of the product is important and a uniform wall thickness is required.
Rotational moulding
Rotational moulding, or "roto-moulding", involves pouring melted plastic into a mould, which is then rotated at high speed. This coats the plastic evenly along the heated metal mould walls, leaving the interior hollow. This method is used for large, hollow-walled containers, storage bins, and kayaks.
Extrusion moulding
Extrusion moulding forms long, cylindrical plastic objects. This process uses a die instead of a mould to shape the product. It involves squeezing hot, raw plastic through a custom-shaped die to get the desired shape.
Compression moulding
Compression moulding involves placing heated plastic inside a heated mould, then closing it to compress the plastic into the desired shape. Once cooled, the part is removed from the mould.
Understanding NPE: The Mystery Plastic Ingredient
You may want to see also
Explore related products
Mold design and testing
Plastic moulding is an industrial process that uses injection moulding to create accurate plastic components. The process is highly efficient and cost-effective, allowing for the creation of complex shapes suitable for various applications. The design and testing of moulds are crucial steps in the plastic injection moulding process, ensuring the production of high-quality and precise plastic parts.
Mold Design
The design phase of a mould is a complex process that requires a combination of creativity and technical precision. It involves understanding the fundamental principles of moulding, including the types of moulds and the materials used in their construction. For instance, injection moulds are commonly used for intricate designs, while blow moulds are used for hollow items. The choice of material is also essential, with aluminium or tool steel being commonly used for their durability and heat transfer properties.
To begin the design process, 2D and 3D models are created to determine the mould's sides and steel sizes. Computer-aided design (CAD) software is utilised to develop an accurate digital representation of the mould. The design must consider the flow of plastic within the mould, as well as the placement and type of gates, which are essential for the proper filling of the mould. Draft angles, ribs, and thickness must also be taken into account to ensure the functionality and quality of the final product.
Mold Testing
Once the mould design is finalised and the mould is constructed, testing is performed to ensure the mould functions correctly and meets quality standards. This includes evaluating the mould's ability to contain the polymer melt, transfer heat, and expel moulded parts. The testing process may involve using advanced robotics and high-precision machinery to simulate the injection moulding process and analyse the performance of the mould.
During testing, various aspects of the mould's functionality are assessed, such as its resilience, aesthetics, and reliability. Prototypes may be created using CNC machining, 3D printing, or urethane casting to evaluate the mould's performance in a real-world scenario. The testing phase is iterative, allowing manufacturers to modify the mould design as needed until the desired standards are achieved.
The design and testing of moulds in the plastic industry are intricate and critical processes. They require a deep understanding of the behaviour of plastic under different conditions and the precise execution of design principles. By combining creativity and engineering precision, mould designers can create innovative solutions that meet the evolving demands of various industries.
Fake Plastic Trees: The Album and Its Legacy
You may want to see also
Frequently asked questions
Plastic mold, or plastic injection mold, is a tool used in the plastic processing industry to give plastic products a complete shape and precise size.
There are several types of plastic molding, including injection molding, blow molding, compression molding, extrusion molding, and rotational molding.
Steel and aluminum are commonly used in plastic molds due to their superior hardness, quick heat transfer, and durability characteristics.
