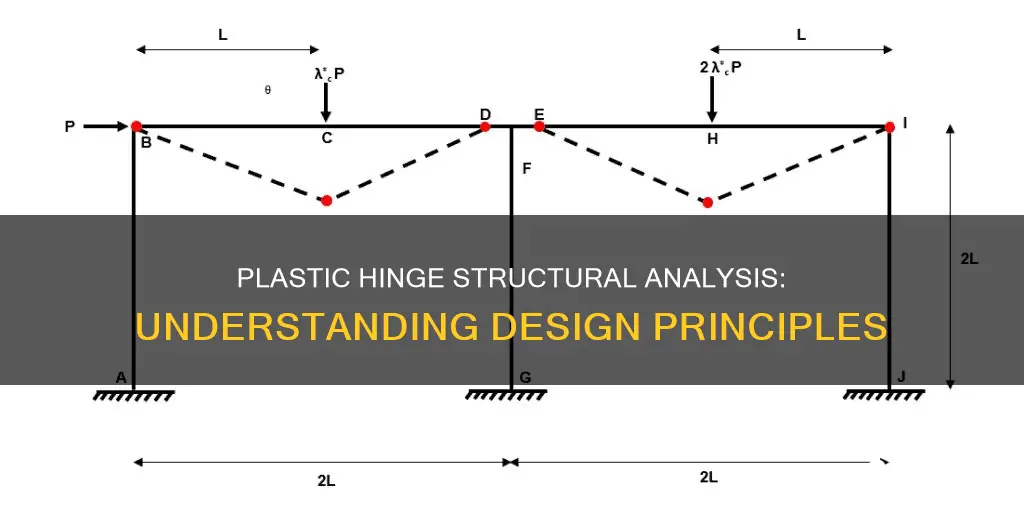

Plastic hinge structural analysis is a topic in engineering that deals with the study of plastic hinges, which are points where plastic rotations occur within a structure. In an elastic structural analysis, it is assumed that all sections within a structure remain linearly elastic, with strain and stress being linearly proportional. However, in a plastic analysis, certain sections of a structure may no longer behave linearly elastically and enter a state of 'yielding'. When a cross-section has fully yielded, a plastic hinge forms, reducing the structure's stability and potentially leading to collapse if there is no redundancy. This phenomenon is particularly important in earthquake engineering, where plastic hinges act as energy damping devices, allowing controlled failure and protecting the overall structure.
Explore related products
What You'll Learn
Plastic hinge formation
The plastic hinge behaves like a real hinge, allowing rotation without any further increase in the bending moment. This enables the structure to be analysed continuously by inserting a plastic hinge at any section reaching its plastic moment.
The formation of plastic hinges can be observed in the load-deflection curve of a fixed-end beam. Each "black dot" on the curve represents a plastic hinge at a fully plastic state, where the bending moment is equal to the plastic moment.
The elastic-plastic state of a structure corresponds to the load level between the first and last plastic hinges. As more sections of the structure transition from elastic to plastic behaviour, the stiffness of the structure decreases, leading to imminent collapse when the stiffness is reduced to a critical value.
Fixing Plastic Dents: Easy DIY Tricks and Tips
You may want to see also
Explore related products
Plastic moment capacity
The plastic moment is denoted as Mp and is calculated using the plastic section modulus and plastic moment formulae. This value is always larger than the yield moment, which is the bending moment at which the first part of the section yields. It is important to note that in practice, most materials are work-hardened, resulting in increased stiffness and moment resistance until failure occurs.
The plastic moment capacity is a critical consideration in designing steel structures. By designing a beam at its plastic moment capacity with an appropriate safety factor, the beam can be maintained in a partially plastic and partially elastic state. In this state, the material's stress does not increase with an increase in load, and strain hardening occurs, redistributing stress to the unyielded areas of the cross-section. This prevents the full section from undergoing significant permanent deformation.
While some engineers may be hesitant to use the plastic moment capacity due to its association with high-seismic applications, it is a safe and established practice in the structural steel building industry. It offers approximately 10% more capacity than using the elastic section modulus and yield moment for W shapes and channels. For other shapes, such as rectangular plates, the difference in strength can be even more significant, resulting in a 50% difference.
In summary, understanding and applying the plastic moment capacity is essential for designing steel members efficiently and cost-effectively. It allows engineers to avoid overdesign and provides greater capacity in structures while ensuring safety through the use of safety factors.
Baking Potatoes: Plastic Wrap vs Foil
You may want to see also
Explore related products
Elastic load capacity
Plastic hinge structural analysis is a method used to determine the load capacity of structures. It is a type of elastic-plastic analysis that accounts for the spread of plasticity along plastic hinge lengths. In this context, elastic load capacity refers to the load under which any section in a structure exceeds its elastic limit.
In structural engineering beam theory, a plastic hinge is the deformation of a beam section where plastic bending occurs. Plastic hinges form when a cross-section has fully yielded, reducing the redundancy of the structure. The formation of one plastic hinge reduces the degree of redundancy in a structure by one. If a structure has no redundancy, the formation of a plastic hinge will lead to collapse.
The elastic load capacity is the maximum load that a structure can withstand without any of its sections exceeding their elastic limit. In other words, it is the point at which the structure transitions from elastic behaviour to plastic behaviour. Up to this point, the structure behaves linearly, with stress remaining linearly proportional to strain. This is a common assumption in engineering analysis, as it simplifies calculations and modelling.
However, structures often have more load-carrying capacity than a linearly elastic analysis suggests. By considering the formation of plastic hinges, engineers can analyse structures beyond their elastic limit. This is known as elastoplastic analysis, which allows for a more accurate prediction of structural failure load.
It's important to note that the plastic hinge analysis assumes that the structure is elastoplastic, and thus, none of the concepts related to plastic hinges apply to brittle materials. Plastic hinge analysis is commonly used for ductile materials like structural steel.
Leather on Plastic: The Ultimate Guide to Pasting
You may want to see also
Explore related products
Plastic hinges in earthquake engineering
In earthquake engineering, plastic hinges are used as energy damping devices, allowing plastic rotation or deformation of an otherwise rigid column connection. They are essential in designing structures that can withstand seismic activity.
Plastic hinges are formed when a certain value of moment, known as the plastic moment (Mp), is reached. This abrupt transition from elastic to ideally plastic behaviour enables large rotations to occur at a constant plastic moment. In the context of earthquake engineering, this characteristic is crucial for controlling and limiting the forces exerted on a structure during an earthquake.
Engineers can strategically place plastic hinges in specific structural members by intentionally weakening certain elements. This is done to direct the deformation towards repairable components, such as columns, rather than the piles under the ground. By doing so, engineers can limit the forces imposed on the structure and prevent an infinite loop of increasing forces that occurs when trying to maintain elasticity.
The use of plastic hinges in earthquake engineering is particularly relevant for steel structures, where the plastic moment is generally equal to Z*Fy, indicating that all the material in the section is at yield. This represents the maximum moment that can be transmitted to connecting structural members, and the introduction of plastic hinges helps control the distribution of forces during seismic events.
Additionally, plastic hinges are considered in the design of earthquake-prone bridges. Engineers strategically locate the plastic hinge in the columns, as they are easier to repair compared to the superstructure or foundation. By calculating the plastic moment capacity of the columns and designing the girders accordingly, bridges can be made more resilient to strong earthquakes.
Protecting Your Plastic Sheets: Avoiding Transit Creases and Damage
You may want to see also
Explore related products
Plastic hinges in statically indeterminate structures
Plastic hinges are an important concept in structural engineering beam theory. They are a deformation of a beam section where plastic bending occurs. In the context of statically indeterminate structures, plastic hinges play a crucial role in understanding the behaviour and stability of these structures under load.
A statically indeterminate structure has more unknown reaction components than the number of equilibrium equations, making it challenging to determine the internal forces and stresses in the structure using classical methods. When a plastic hinge forms in a statically indeterminate structure, it reduces the degree of redundancy and brings the structure closer to a collapse state. This is because the formation of a plastic hinge allows for free rotation at that point, redistributing loads to other parts of the structure.
In a statically indeterminate beam, the first plastic hinge typically forms at the centre, with additional hinges forming at the supports. As more hinges form, the structure transitions from being statically indeterminate to determinate. This transition point is critical in understanding the collapse mechanism of the structure. Each plastic hinge that forms reduces the degree of indeterminacy by one.
The formation of plastic hinges in statically indeterminate structures can be modelled using software such as FLAC3D. By assigning limiting plastic moments at structural nodes or creating double nodes with deformable links, engineers can simulate the development of plastic hinges and analyse the behaviour of the structure. This allows for a better understanding of load distribution, collapse mechanisms, and the overall stability of the structure.
It is important to note that the introduction of plastic hinges in design can be intentional, especially in earthquake engineering. By allowing controlled deformation at plastic hinges, the forces imposed on a structure can be limited, acting like a fuse and preventing catastrophic failure. This concept is crucial in seismic design, where the goal is to dissipate energy and limit damage during earthquakes.
Smart Ways to Split a Plastic Bin
You may want to see also
Frequently asked questions
A plastic hinge is the deformation of a section of a beam where plastic bending occurs. It allows for large rotations to occur at a constant plastic moment.
A plastic hinge forms when a cross-section has fully yielded. This means that the section has exhausted its elastoplastic capacity and become fully plastic.
Plastic hinges are used in structural analysis to model the behaviour of structures under increasing loading. By inserting a plastic hinge at any section reaching its plastic moment, the structure can be analysed continuously. This allows engineers to study the reserve capacity of a structure beyond a linearly elastic analysis.
The formation of a plastic hinge reduces the degree of redundancy in a structure. If a structure has no redundancy, the formation of a plastic hinge will lead to collapse. Therefore, it is important to carefully design and locate plastic hinges to ensure controlled failure during unexpected events.
